NSN 3020-00-878-3913 AT1058, 50662, 00-878-3913
Product Details | ROLLER CHAIN
3020-00-878-3913 A flexible mechanical device consisting of one or more rows of links used for conveying or power transmission. The link side plates are flat or offset and are spaced apart by rollers, bushings and/or pins. The chain mates with a sprocket with an articulating action. The non-rotating bushing type chain is limited to that designated by the American National Standards Institute as "roller chain". Excludes CHAIN, BLOCK.
Part Alternates: AT1058, 50662, 3020-00-878-3913, 00-878-3913, 3020008783913, 008783913
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 06 SEP 1967 | 00-878-3913 | 04457 ( CHAIN, ROLLER ) |
Drawings & Photos | NSN 3020-00-878-3913
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-878-3913
Technical Data | NSN 3020-00-878-3913
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| NOMINAL PITCH DISTANCE | 0.500 INCHES |

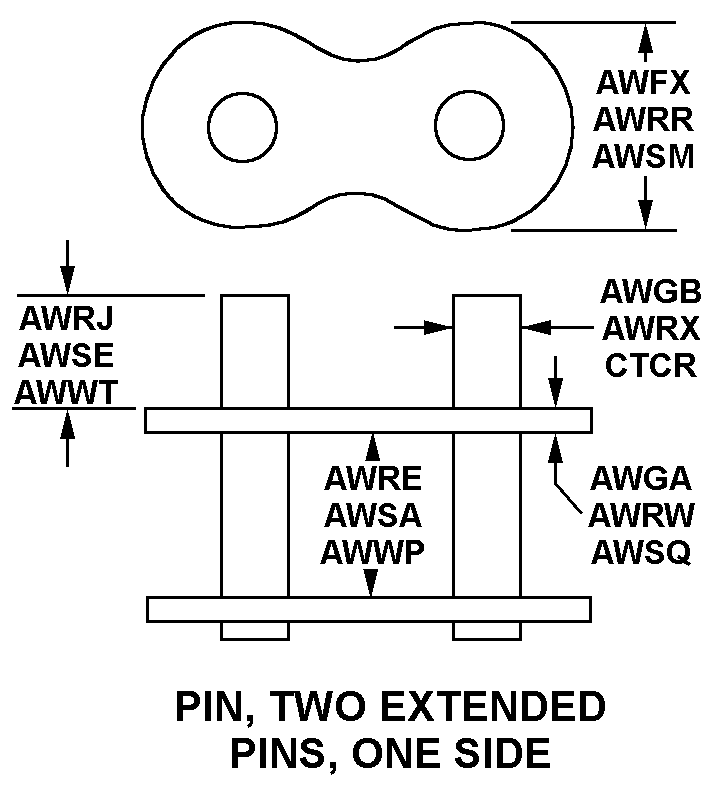

| LINK STYLE | A11 PIN, TWO EXTENDED PINS, ONE SIDE |
| LINK PLATE NOMINAL THICKNESS | 0.0625 INCHES |
| LINK PIN NOMINAL DIAMETER | 0.1562 INCHES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 0.1250 INCHES |
| LINK PLATE WIDTH | 0.375 INCHES NOMINAL |
| LINK EXTENDED PIN LENGTH | 0.500 INCHES NOMINAL |
| LINK ROW QUANTITY | 1 |
| END CONNECTION STYLE | 3 PIN HOLE |
| BUSHING HOLE DIAMETER | 0.3125 INCHES NOMINAL |
| PIN FASTENING METHOD | HEADED STRAIGHT PIN |
| EFFECTIVE LENGTH | 3.3333 FEET NOMINAL |
Restrictions/Controls & Freight Information | NSN 3020-00-878-3913
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093940 | CHAINS BELTING/SPROCKET |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-878-3913
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
