NSN 3020-00-875-8233 575R324H16, 61023416, 610234-16
Product Details | SPUR ANTIBACKLASH GEAR
3020-00-875-8233 An item having one fixed gear and one free gear, both having the same complement of spur gear teeth, mounted on a common hub. The free gear is attached to the fixed gear by springs and operates as one gear. Upon installation with the mating gear, the teeth of the free moving gear are preset to mesh with teeth other than those of the fixed gear. This spring tension between the fixed gear and the free gear eliminates any free motion between the driver and the driven gear. The gear is used where identical and accurate transmitted motion between gears is required.
Part Alternates: 575R324H16, 61023416, 610234-16, 3020-00-875-8233, 00-875-8233, 3020008758233, 008758233
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 29 NOV 1967 | 00-875-8233 | 26668 ( GEAR, ANTIBACKLASH, SPUR ) |
Drawings & Photos | NSN 3020-00-875-8233
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-875-8233
Technical Data | NSN 3020-00-875-8233
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BODY STEEL COMP 303 HUB |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,T4 FED SPEC SINGLE MATERIAL RESPONSE BODY QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE HUB |
| SURFACE TREATMENT | ANODIZE BODY PASSIVATE HUB |
| TEETH QUANTITY | 76 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 2 PROTRUDING HUB |
| PITCH DIAMETER | 1.1870 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 1.217 INCHES |
| FACE NOMINAL WIDTH | 0.120 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.255 INCHES FIRST END |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.125 INCHES BOTH ENDS |

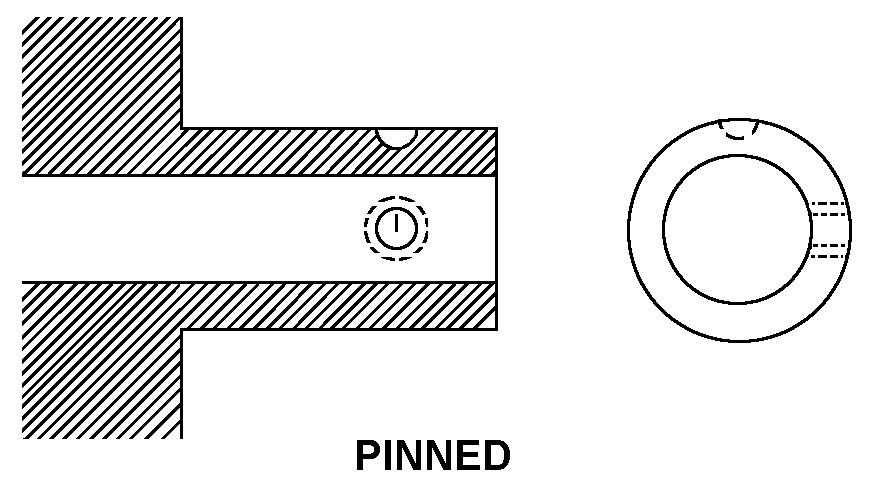

| HUB STYLE DESIGNATOR | 5 PINNED FIRST END |
| HUB NOMINAL DIAMETER | 0.375 INCHES FIRST END |
Restrictions/Controls & Freight Information | NSN 3020-00-875-8233
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
