NSN 3020-00-798-5941 867C755G2, 00-798-5941, 007985941
Product Details | GEAR CLUSTER
3020-00-798-5941 A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER.
Part Alternates: 867C755G2, 3020-00-798-5941, 00-798-5941, 3020007985941, 007985941
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-798-5941 | 36636 ( GEAR CLUSTER ) |
Drawings & Photos | NSN 3020-00-798-5941
Demand History | NSN 3020-00-798-5941
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-798-5941 | 2009-09-260 | 6 | DIBBS |
| 3020-00-798-5941 | 2008-05-127 | 10 | DIBBS |
| 3020-00-798-5941 | 2008-02-42 | 14 | DIBBS |
| 3020-00-798-5941 | 2007-12-338 | 13 | DIBBS |
| 3020-00-798-5941 | 2007-04-99 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-798-5941
Related Products | NSN 3020-00-798-5941
Technical Data | NSN 3020-00-798-5941
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| CONSTRUCTION | ASSEMBLED |
| DESIGN TYPE | SPUR FIRST GEAR SPUR SECOND GEAR SPUR THIRD GEAR |
| NOMINAL OUTSIDE DIAMETER | 3.7000 INCHES FIRST GEAR 3.9000 INCHES SECOND GEAR 2.6000 INCHES THIRD GEAR |
| NOMINAL OVERALL LENGTH | 3.219 INCHES |
| BORE STYLE | 2 PARTIAL SECOND END |
| BORE NOMINAL DIAMETER | 0.925 INCHES SECOND END |
| BORE NOMINAL DEPTH | 1.146 INCHES SECOND END |

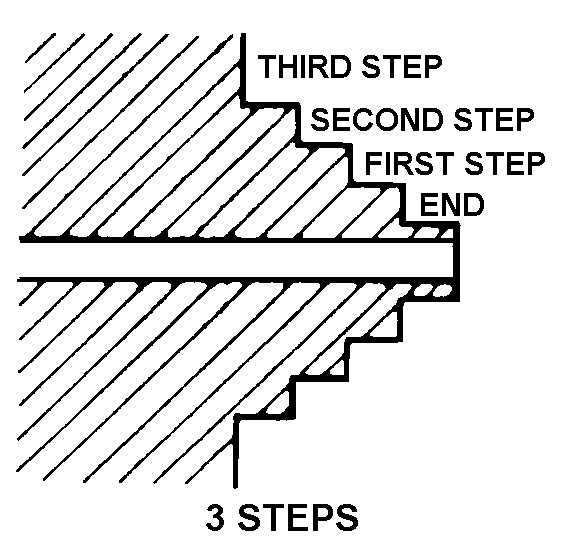

| HUB STYLE DESIGNATOR | 4C 3 STEPS FIRST END 4A 1 STEP SECOND END 1 PLAIN BETWEEN FIRST AND SECOND GEAR 1 PLAIN BETWEEN SECOND AND THIRD GEAR |
| HUB NOMINAL LENGTH | 1.672 INCHES FIRST END 0.453 INCHES SECOND END 0.188 INCHES BETWEEN FIRST AND SECOND GEAR 0.062 INCHES BETWEEN SECOND AND THIRD GEAR |
| HUB NOMINAL DIAMETER | 1.109 INCHES FIRST END 1.180 INCHES SECOND END 3.000 INCHES BETWEEN FIRST AND SECOND GEAR 1.500 INCHES BETWEEN SECOND AND THIRD GEAR |
| SPECIAL FEATURES | SECOND END BORE 16 INVOLUTE SPLINES |
