Product Details | GEAR CLUSTER
3020-00-787-6768 A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER.
Part Alternates: 22102078, 221-02-078, 3020-00-787-6768, 00-787-6768, 3020007876768, 007876768
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 20 MAR 1968 | 00-787-6768 | 36636 ( GEAR CLUSTER ) |
Drawings & Photos | NSN 3020-00-787-6768
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-787-6768
Technical Data | NSN 3020-00-787-6768
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,TYPE 303 COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| CONSTRUCTION | SOLID |
| DESIGN TYPE | SPUR FIRST GEAR SPUR SECOND GEAR |
| NOMINAL OUTSIDE DIAMETER | 0.5310 INCHES FIRST GEAR 0.5310 INCHES SECOND GEAR |
| NOMINAL OVERALL LENGTH | 0.359 INCHES |

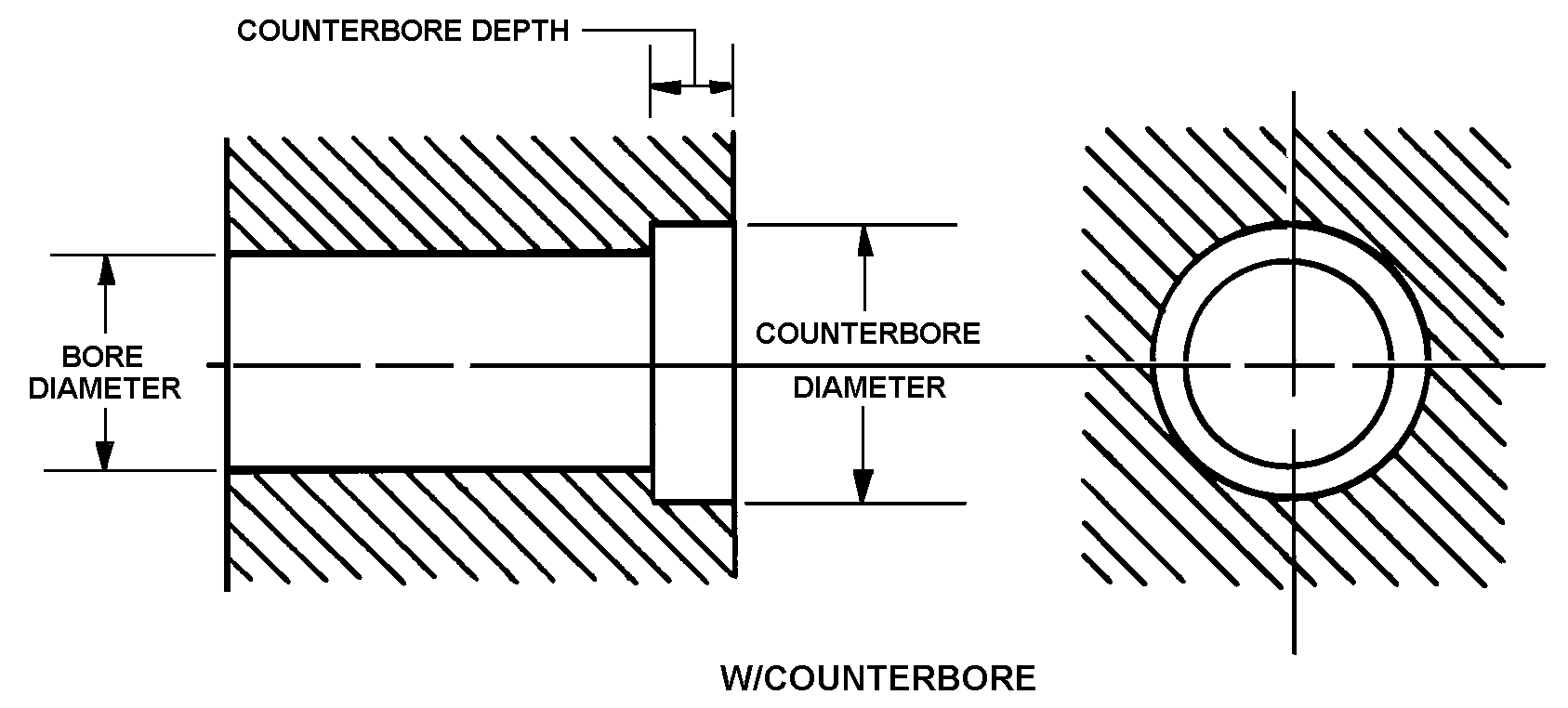

| BORE STYLE | 17 W/COUNTERBORE SECOND END |
| BORE NOMINAL DIAMETER | 0.125 INCHES SECOND END |
| COUNTERBORE NOMINAL DEPTH | 0.069 INCHES SECOND END |
| COUNTERBORE NOMINAL DIAMETER | 0.1880 INCHES SECOND END |
| HUB STYLE DESIGNATOR | 1 PLAIN FIRST END 1 PLAIN BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL LENGTH | 0.010 INCHES FIRST END 0.162 INCHES BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL DIAMETER | 0.188 INCHES FIRST END 0.375 INCHES BETWEEN FIRST AND SECOND GEAR |
| ATTACHMENT METHOD | MOUNTING HOLE |
