Product Details | SPUR ANTIBACKLASH GEAR
3020-00-757-9292 An item having one fixed gear and one free gear, both having the same complement of spur gear teeth, mounted on a common hub. The free gear is attached to the fixed gear by springs and operates as one gear. Upon installation with the mating gear, the teeth of the free moving gear are preset to mesh with teeth other than those of the fixed gear. This spring tension between the fixed gear and the free gear eliminates any free motion between the driver and the driven gear. The gear is used where identical and accurate transmitted motion between gears is required.
Part Alternates: P35120CP2, P3-5-120CP2, 3020-00-757-9292, 00-757-9292, 3020007579292, 007579292
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1960 | 00-757-9292 | 26668 ( GEAR, ANTIBACKLASH, SPUR ) |
Drawings & Photos | NSN 3020-00-757-9292
Cross Reference | NSN 3020-00-757-9292
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P3-5-120CP2 | 00141 | ROLLER BEARING COMPANY OF AMERICA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-757-9292
Technical Data | NSN 3020-00-757-9292
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZE BODY PASSIVATE HUB |
| TEETH QUANTITY | 120 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |

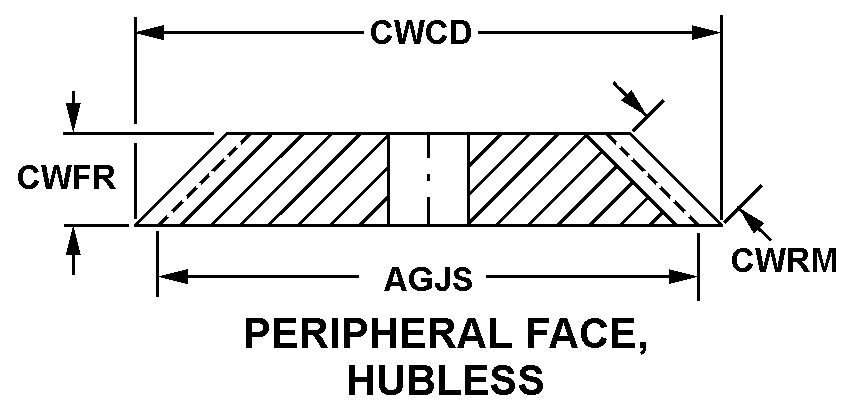

| STYLE DESIGNATOR | 38 PERIPHERAL FACE, HUBLESS |
| PITCH DIAMETER | 1.6660 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 0.609 INCHES |
| NOMINAL OUTSIDE DIAMETER | 1.6950 INCHES |
| FACE NOMINAL WIDTH | 0.104 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.281 INCHES FIRST END 0.224 INCHES SECOND END |
| BORE NOMINAL DIAMETER | 0.187 INCHES BOTH ENDS |
| HUB NOMINAL DIAMETER | 0.500 INCHES FIRST END 0.625 INCHES SECOND END |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MOUNTING HOLE TYPE AND QUANTITY | 1 THREADED TRANSVERSELY THROUGH HUB, FIRST END |
