NSN 3020-00-752-1017 2341T2, 30837, 30-8-37
Product Details | HELICAL GEAR

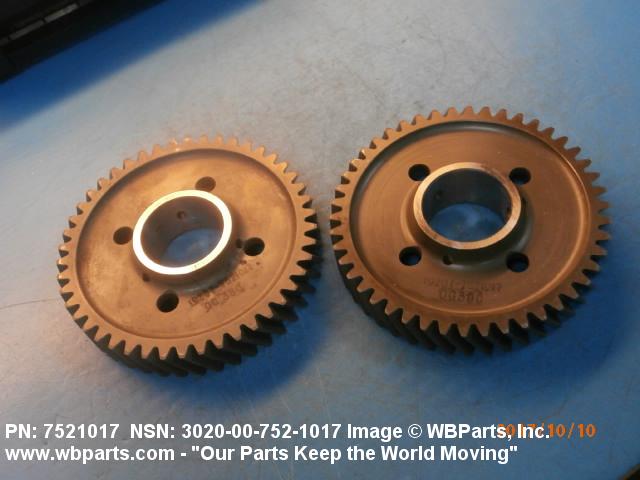

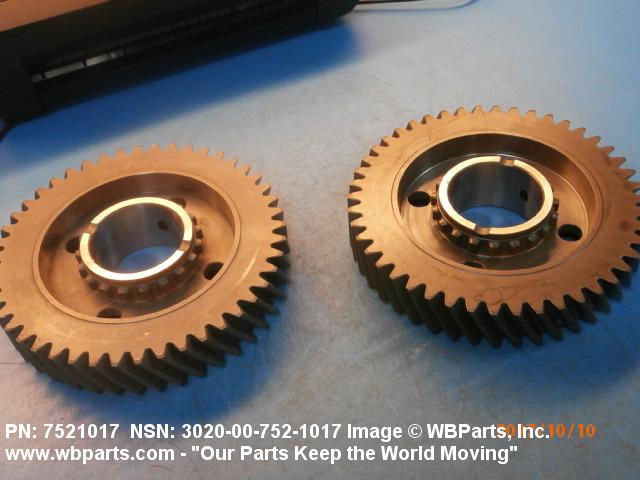

3020-00-752-1017 A gear, cylindrical in form, with teeth on the outer surface at an angle to the axis of the gear. See also GEAR, ANTIBACKLASH, HELICAL
Part Alternates: 2341T2, 30837, 30-8-37, 7521017, 914097, 3020-00-752-1017, 00-752-1017, 3020007521017, 007521017
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-752-1017 | 05464 ( GEAR, HELICAL ) |

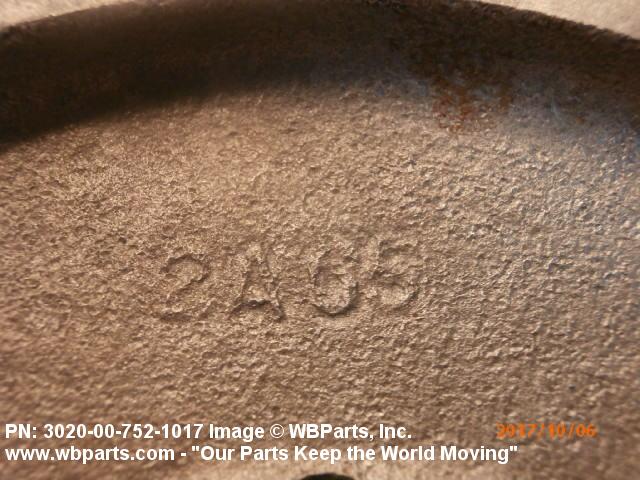

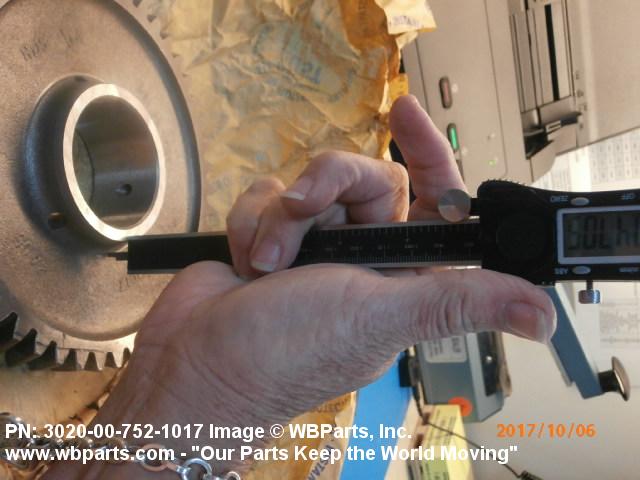

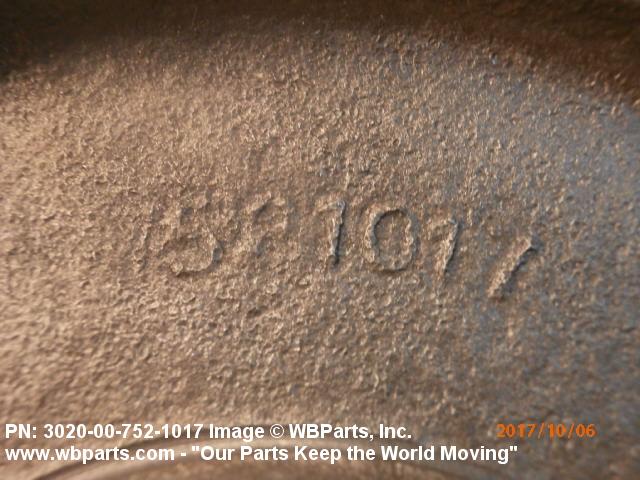

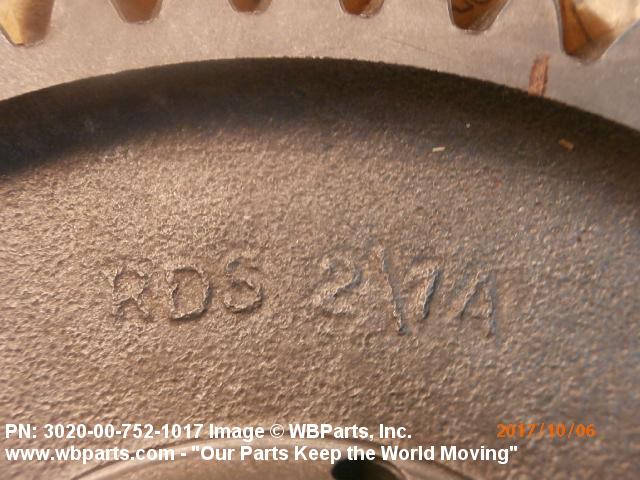

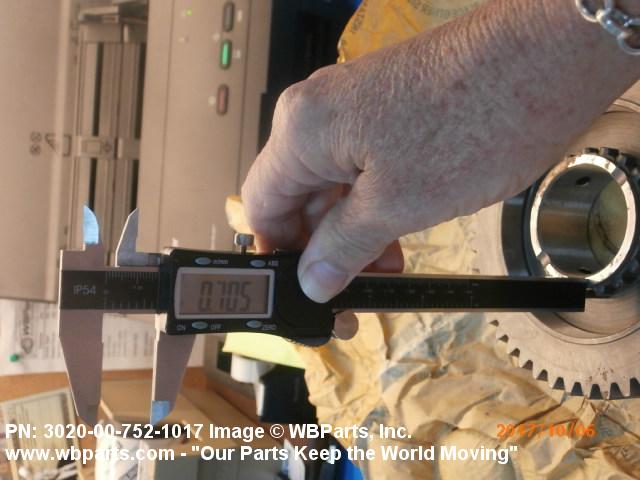

Drawings & Photos | NSN 3020-00-752-1017
Demand History | NSN 3020-00-752-1017
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-752-1017 | 2024-06-165 | 15 | BO |
| 30837 | 2023-11-312 | 1 | US |
| 3020-00-752-1017 | 2020-07-212 | 10 | US |
| 3020-00-752-1017 | 2019-02-35 | 10 | BO |
| 3020-00-752-1017 | 2018-09-260 | 1 | US |
| 3020-00-752-1017 | 2017-08-234 | 2 | us |
| 3020-00-752-1017 | 2013-02-36 | 52 | DIBBS |
| 3020-00-752-1017 | 2012-11-334 | 23 | DIBBS |
Cross Reference | NSN 3020-00-752-1017

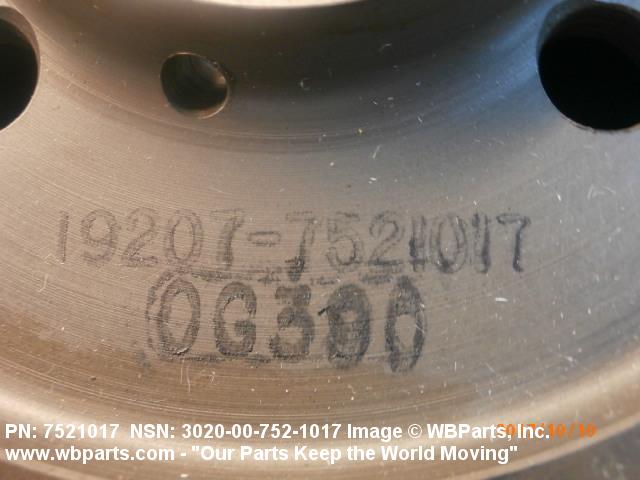

| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2341T2 | 56442 | DIAMOND REO TRUCK CO |
| 30-8-37 | 22852 | SPALLA INC |
| 30-8-37 | 95019 | DANA CORP SPICER TRANSMISSION DIV |
| 3020007521017 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7521017 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 914097 | 58275 | SASCO INC CANADIAN DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-752-1017
Related Products | NSN 3020-00-752-1017
Technical Data | NSN 3020-00-752-1017

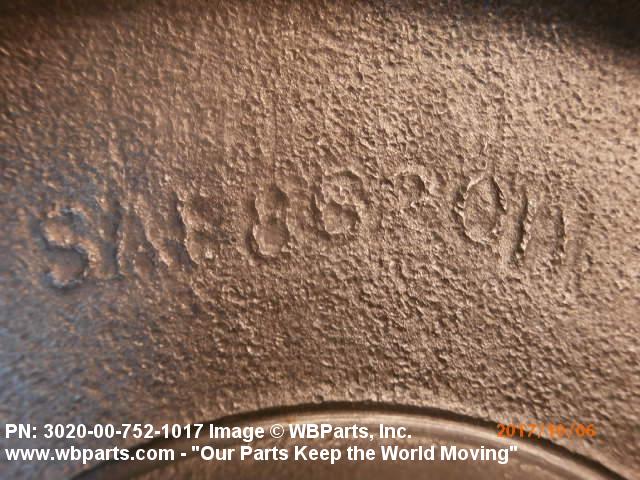

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8620H OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 59.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 46 |

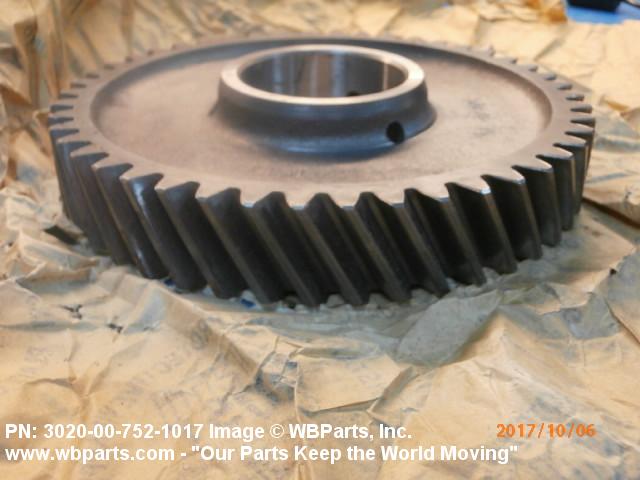

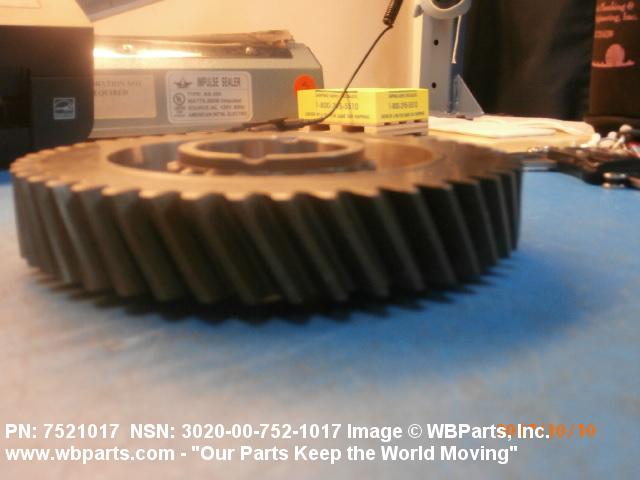

| TEETH TYPE | SINGLE HELIX |
| TOOTH FORM | STANDARD |
| TOOTH DIRECTION | LEFT |
| PRESSURE ANGLE | 20.0000 DEGREES |
| HELIX ANGLE | 28.2723 DEGREES |
| STYLE DESIGNATOR | 4 PROTRUDING HUBS |
| PITCH DIAMETER | 6.4619 INCHES NOMINAL |

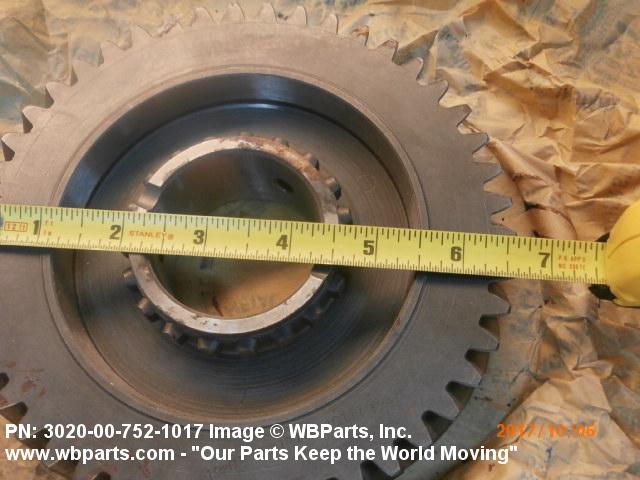

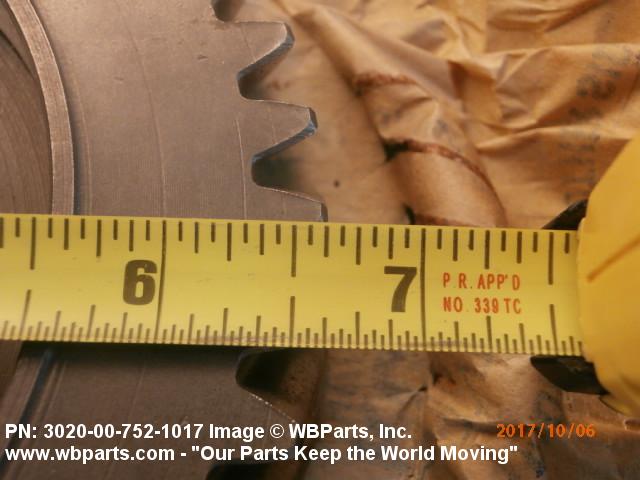

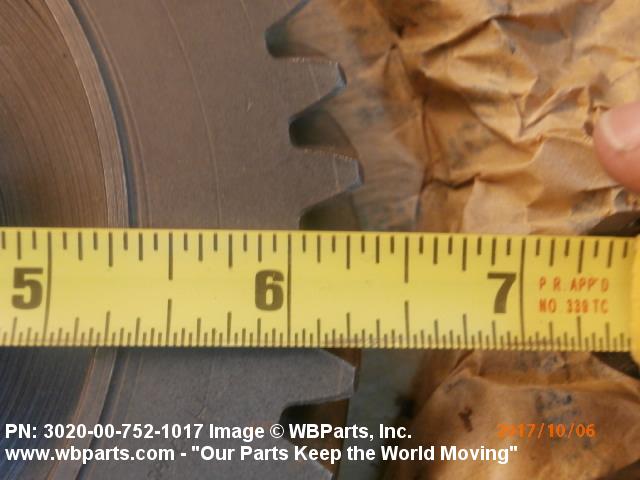

| NOMINAL OUTSIDE DIAMETER | 6.645 INCHES |

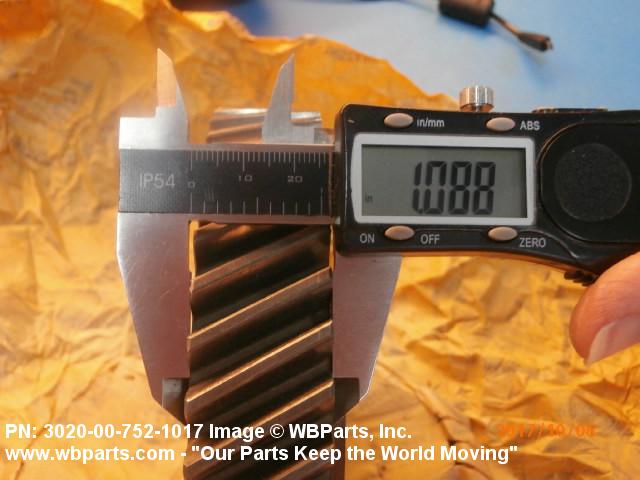

| FACE NOMINAL WIDTH | 1.078 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.187 INCHES FIRST END 0.184 INCHES SECOND END |
| BORE STYLE | 1 PLAIN BOTH ENDS |

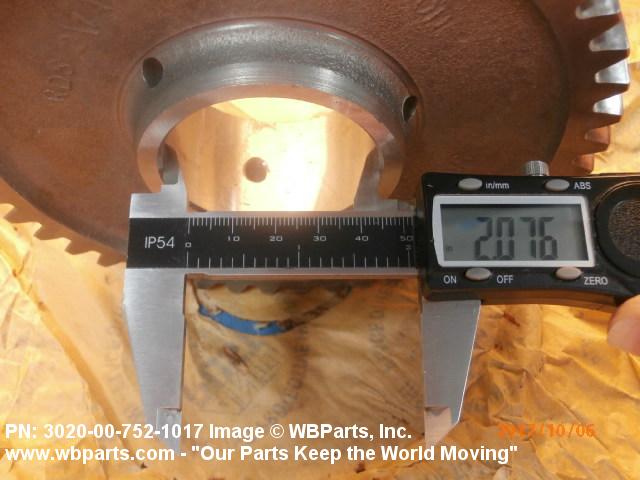

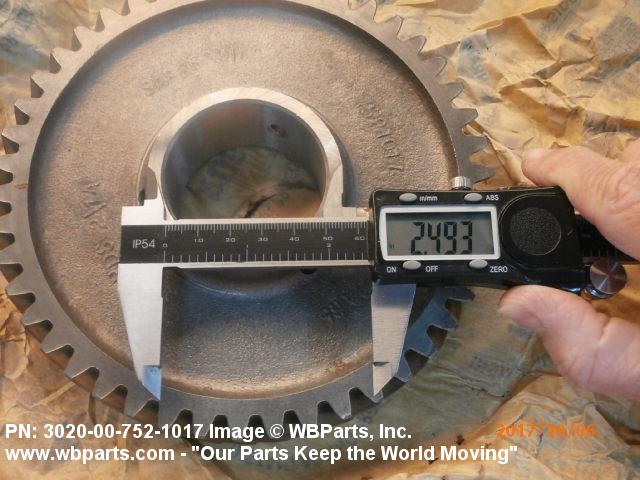

| BORE NOMINAL DIAMETER | 2.078 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 4A 1 STEP FIRST END 1 PLAIN SECOND END |
| HUB NOMINAL DIAMETER | 2.500 INCHES SECOND END |
| END NOMINAL LENGTH | 0.094 INCHES FIRST END |
| END NOMINAL DIAMETER | 2.156 INCHES FIRST END |
| FIRST STEP NOMINAL LENGTH | 0.187 INCHES FIRST END |

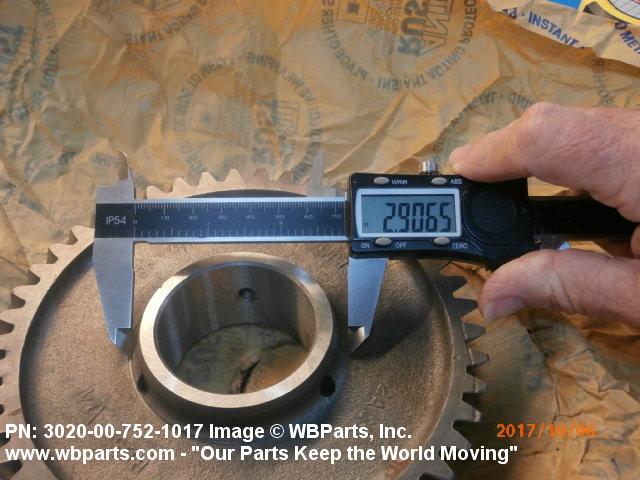

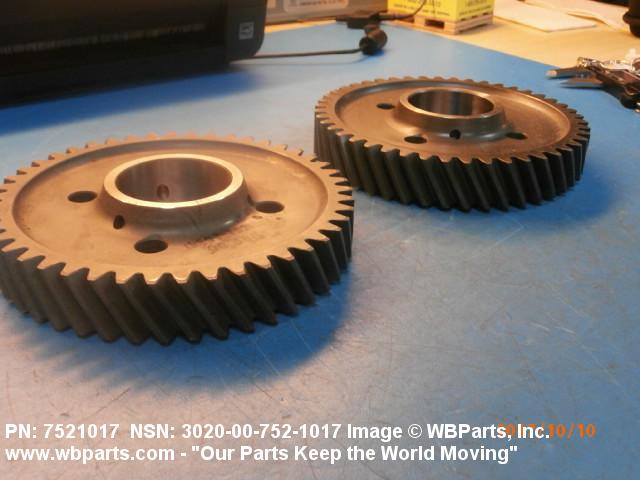

| FIRST STEP NOMINAL DIAMETER | 2.840 INCHES FIRST END |
| BODY STYLE | 3A WEBBED, SOLID |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MOUNTING HOLE TYPE AND QUANTITY | 4 PLAIN TRANSVERSELY THROUGH FACE |
| MOUNTING HOLE NOMINAL DIAMETER | 0.516 INCHES TRANSVERSELY THROUGH FACE |
| BOLT HOLE CIRCLE NOMINAL DIAMETER | 3.500 INCHES AXIALLY THROUGH BODY, FIRST END |
| MANUFACTURERS CODE | 95019 |
| DESIGN CONTROL REFERENCE | 30-8-37 |
Restrictions/Controls & Freight Information | NSN 3020-00-752-1017
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-752-1017
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | NK | 2 1/2 Ton Vehicle Configuration, Multi-Fuel |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
