NSN 3020-00-738-4484 MGC336, MGC3363, MGC336-3
Product Details | GEAR CLUSTER
3020-00-738-4484 A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER.
Part Alternates: MGC336, MGC3363, MGC336-3, 3020-00-738-4484, 00-738-4484, 3020007384484, 007384484
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 23 FEB 1968 | 00-738-4484 | 36636 ( GEAR CLUSTER ) |
Drawings & Photos | NSN 3020-00-738-4484
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-738-4484
Technical Data | NSN 3020-00-738-4484
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 416 FIRST GEAR STEEL COMP 302 SECOND GEAR |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND T FED SPEC SINGLE MATERIAL RESPONSE FIRST GEAR QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE SECOND GEAR |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONSTRUCTION | ASSEMBLED |
| DESIGN TYPE | SPUR FIRST GEAR SPUR SECOND GEAR |
| NOMINAL OUTSIDE DIAMETER | 0.450 INCHES FIRST GEAR 0.1290 INCHES SECOND GEAR |
| NOMINAL OVERALL LENGTH | 0.276 INCHES |

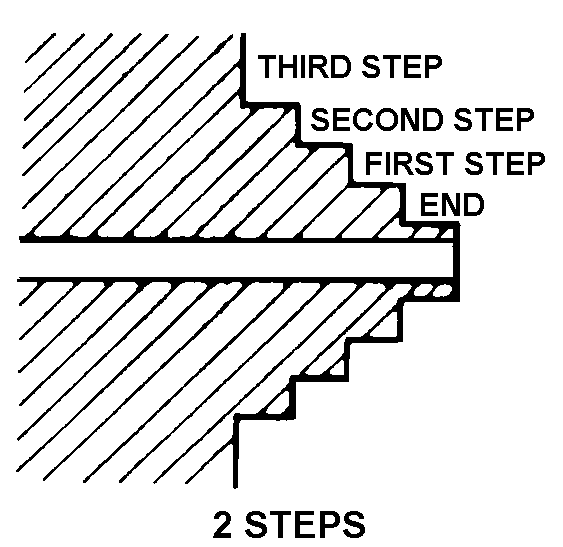

| HUB STYLE DESIGNATOR | 4B 2 STEPS FIRST END 4A 1 STEP SECOND END |
| HUB NOMINAL LENGTH | 0.048 INCHES FIRST END 0.137 INCHES SECOND END |
| HUB NOMINAL DIAMETER | 0.040 INCHES BOTH ENDS |
Restrictions/Controls & Freight Information | NSN 3020-00-738-4484
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-738-4484
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
