NSN 3020-00-587-6996 8426345, 00-587-6996, 005876996
Product Details | BEVEL GEAR
3020-00-587-6996 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: 8426345, 3020-00-587-6996, 00-587-6996, 3020005876996, 005876996
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-587-6996 | 05463 ( GEAR, BEVEL ) |
Drawings & Photos | NSN 3020-00-587-6996
Cross Reference | NSN 3020-00-587-6996
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8426345 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-587-6996
Related Products | NSN 3020-00-587-6996
Technical Data | NSN 3020-00-587-6996
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1330H AND STEEL COMP 8630H AND STEEL COMP 4130H OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66,AISI/SAE 1330H,8630H,4130H FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE MANGANESE AND PHOSPHATE ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-16232,TYPE Z,CLASS 1 MIL SPEC 1ST TREATMENT RESPONSE AND MIL-P-16232,TYPE M,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 33.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 36 |
| TEETH TYPE | STRAIGHT |
| PRESSURE ANGLE | 45.0000 DEGREES |
| PITCH ANGLE | 45.0000 DEGREES |

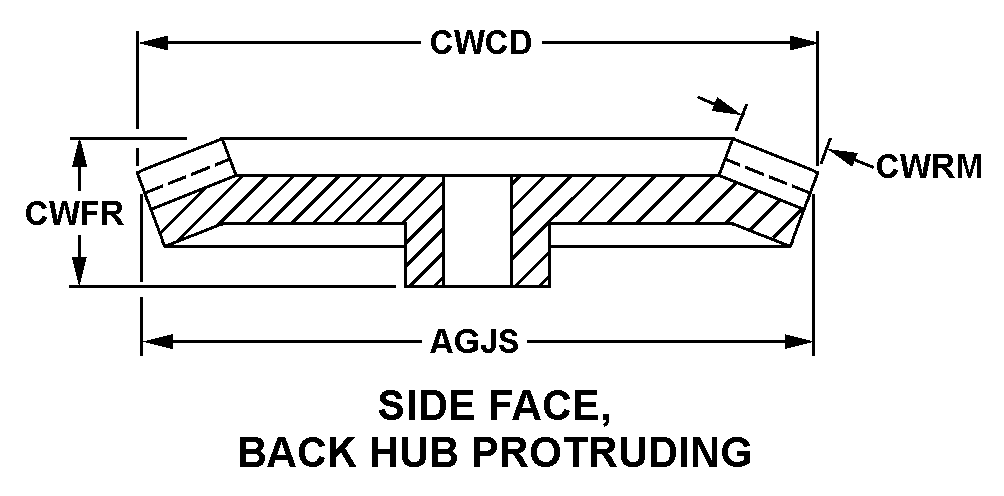

| STYLE DESIGNATOR | 31 SIDE FACE, BACK HUB PROTRUDING |
| PITCH DIAMETER | 4.5000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.641 INCHES |
| NOMINAL OUTSIDE DIAMETER | 4.6768 INCHES |
| FACE NOMINAL WIDTH | 1.000 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.687 INCHES SECOND END |
| BODY RECESS NOMINAL DEPTH | 0.2660 INCHES FIRST END |
| BORE STYLE | 6 INVOLUTE SPLINE BOTH ENDS |
| BORE NOMINAL DIAMETER | 1.100 INCHES BOTH ENDS |
| SPLINE QUANTITY | 16 BOTH ENDS |
| SPLINE PITCH DIAMETER | 1.0000 INCHES NOMINAL BOTH ENDS |
| END NOMINAL DIAMETER | 1.573 INCHES SECOND END |
| FIRST GROOVE NOMINAL WIDTH | 0.070 INCHES SECOND END |
| FIRST GROOVE NOMINAL DIAMETER | 1.468 INCHES SECOND END |
| NOMINAL DISTANCE FROM END TO FIRST GROOVE | 0.092 INCHES SECOND END |
| BODY STYLE | 3A WEBBED, SOLID |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 8426345 |
Restrictions/Controls & Freight Information | NSN 3020-00-587-6996
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | S | 60 |
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
