Product Details | CONE PULLEY
3020-00-497-6507 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 5172779, 3020-00-497-6507, 00-497-6507, 3020004976507, 004976507
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 21 JUN 1971 | 00-497-6507 | 08110 ( PULLEY, CONE ) |
Drawings & Photos | NSN 3020-00-497-6507
Cross Reference | NSN 3020-00-497-6507
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5172779 | 72582 | MTU AMERICA INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-497-6507
Related Products | NSN 3020-00-497-6507
Technical Data | NSN 3020-00-497-6507
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP GROOVE |
| STEP OUTSIDE DIAMETER | 9.000 INCHES NOMINAL AND 7.500 INCHES NOMINAL |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 3 |
| GROOVE DEPTH | 0.625 INCHES NOMINAL AND 0.625 INCHES NOMINAL AND 0.851 INCHES NOMINAL |
| GROOVE WIDTH | 0.656 INCHES NOMINAL AND 0.656 INCHES NOMINAL AND 0.812 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 34.0 |

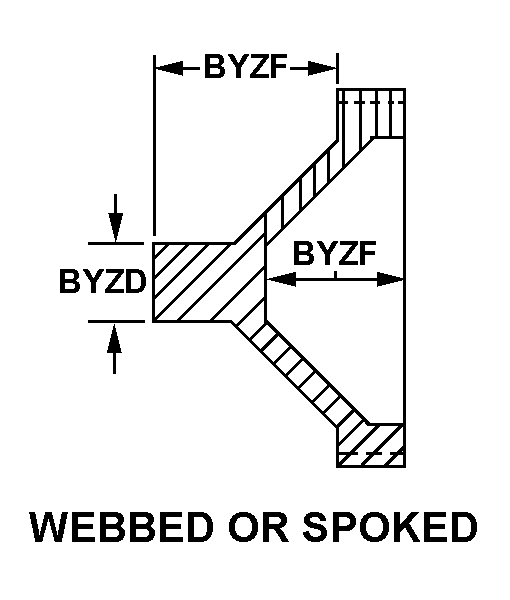

| STYLE DESIGNATOR | E16 WEBBED OR SPOKED |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | INCLUDED |
| OVERALL LENGTH | 6.375 INCHES NOMINAL |
| MATERIAL AND LOCATION | IRON, CAST OVERALL |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 2.000 INCHES NOMINAL |
| BORE LENGTH | 3.312 INCHES NOMINAL |
| KEYING FACILITY | INCLUDED |
| KEYING FACILITY TYPE | KEYWAY |
| QUANTITY | 1 |
| KEYWAY WIDTH | 0.376 INCHES MINIMUM AND 0.381 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 1.176 INCHES MINIMUM AND 1.186 INCHES MAXIMUM |
| PROTRUDING HUB CHARACTERISTIC | PLAIN |
| HUB END OUTSIDE DIAMETER AND LOCATION | 3.000 INCHES NOMINAL AA END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 2.812 INCHES NOMINAL AA END AND 3.000 INCHES NOMINAL BB END |
| SPECIAL FEATURES | 2 PULLER HOLES,6 BAR RING HOLES,6 RIBS |
