NSN 3020-00-496-2475 886C681P1, 00-496-2475, 004962475
Product Details | SPUR GEAR SECTOR
3020-00-496-2475 A gear sector with complements of spur gear teeth.
Part Alternates: 886C681P1, 3020-00-496-2475, 00-496-2475, 3020004962475, 004962475
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 26 SEP 1969 | 00-496-2475 | 28377 ( GEAR SECTOR, SPUR ) |

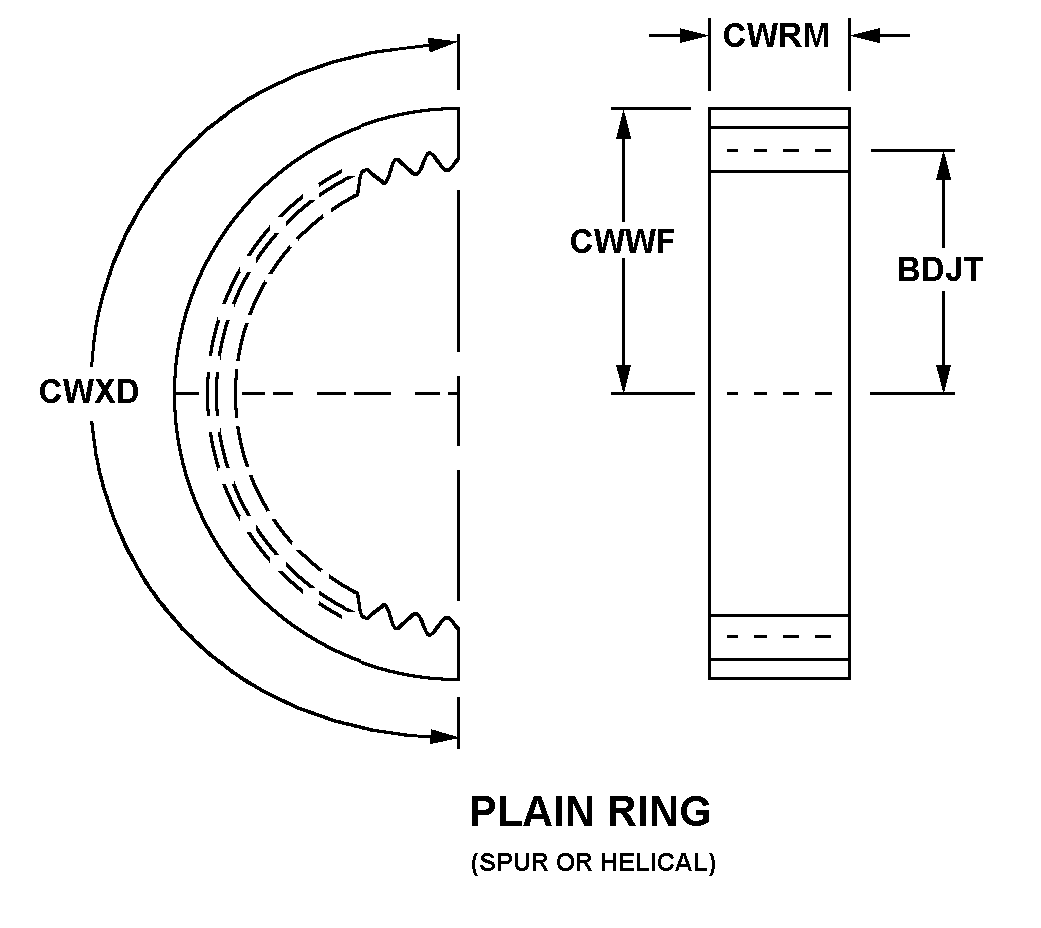

Drawings & Photos | NSN 3020-00-496-2475
Cross Reference | NSN 3020-00-496-2475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 886C681P1 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
