NSN 3020-00-250-8080 SP25233, TP25233, 00-250-8080
Product Details | HELICAL GEAR
3020-00-250-8080 A gear, cylindrical in form, with teeth on the outer surface at an angle to the axis of the gear. See also GEAR, ANTIBACKLASH, HELICAL
Part Alternates: SP25233, TP25233, 3020-00-250-8080, 00-250-8080, 3020002508080, 002508080
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-250-8080 | 05464 ( GEAR, HELICAL ) |
Drawings & Photos | NSN 3020-00-250-8080
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-250-8080
Related Products | NSN 3020-00-250-8080
Technical Data | NSN 3020-00-250-8080
| Characteristic | Specifications |
|---|---|
| HARDNESS RATING | 50.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 42 |
| TEETH TYPE | SINGLE HELIX |
| TOOTH FORM | STUB |
| TOOTH DIRECTION | RIGHT |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 9 ONE PROTRUDING HUB, ONE RECESSED HUB |
| PITCH DIAMETER | 6.5000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.999 INCHES |
| NOMINAL OUTSIDE DIAMETER | 6.7210 INCHES |
| FACE NOMINAL WIDTH | 1.875 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.125 INCHES FIRST END |

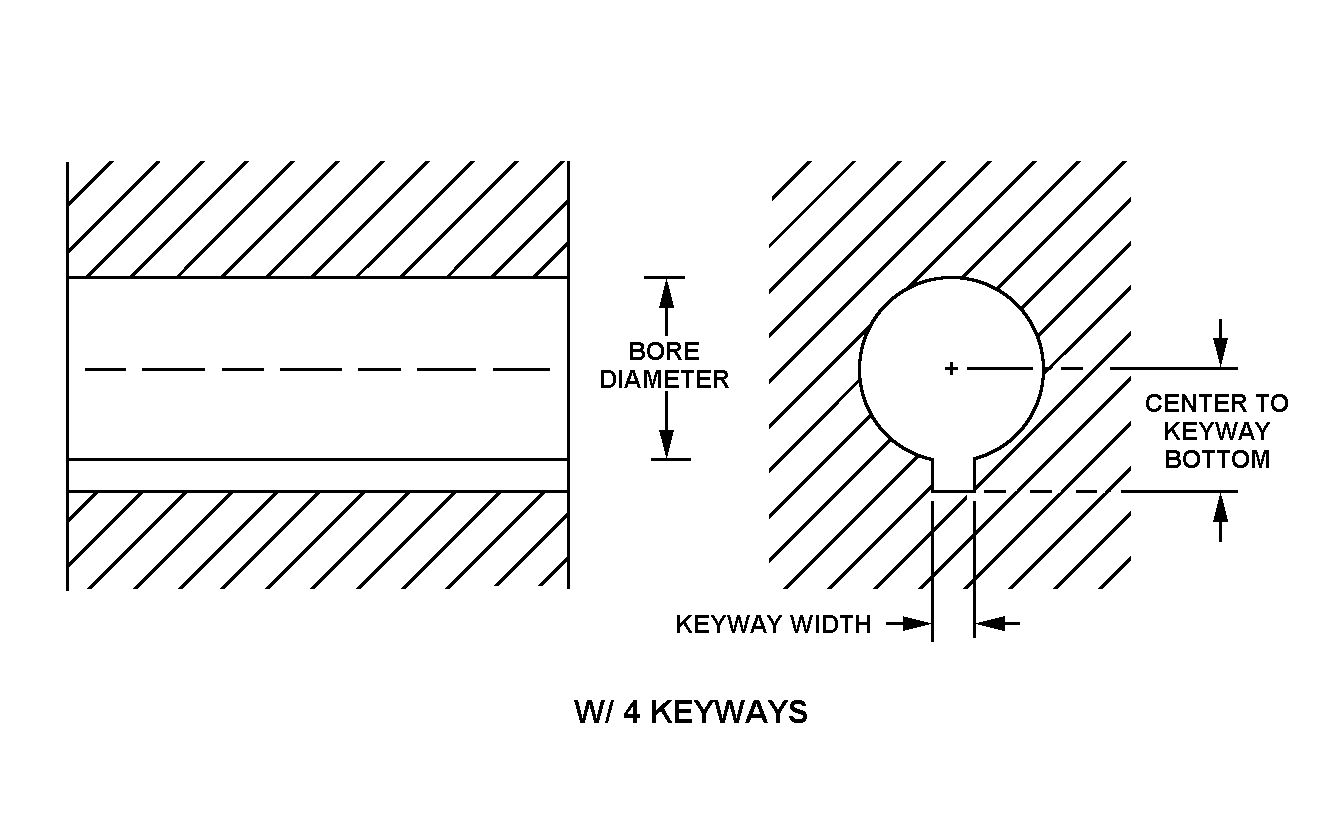

| BORE STYLE | 10D W/4 KEYWAYS BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |
| HUB NOMINAL DIAMETER | 2.750 INCHES FIRST END 2.750 INCHES SECOND END |
| BODY STYLE | 3B WEBBED, OFFSET, SOLID |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | SP25233 |
