NSN 3020-00-247-3528 MS42110021RC1CL, MS421-100-2-1RC1CL, ASA10020L
Product Details | ROLLER CHAIN LINK
3020-00-247-3528 An assembled unit of a CHAIN, ROLLER consisting of side plates, roller(s), bushing(s), or pin(s). It may be a single or double pitch. Links containing bushings without rollers shall be as designated by the American National Standards Institute as "roller chain." Excludes LINK, CHAIN (as modified); and PULLEY, SASH.
Part Alternates: MS42110021RC1CL, MS421-100-2-1RC1CL, ASA10020L, ASA100-2-0L, C6-65, SP108, D0UBLE4700L, D0UBLE470-0L, D1000L, D100-0L, D4700L, D470-0L, RC10020L, RC100-2-0L, C665, 10020L, 100-2-0L, 12P02, 3020-00-247-3528, 00-247-3528, 3020002473528, 002473528
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1961 | 00-247-3528 | 04488 ( LINK, ROLLER CHAIN ) |
Drawings & Photos | NSN 3020-00-247-3528
Cross Reference | NSN 3020-00-247-3528
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100-2-0L | 55739 | JEFFREY CHAIN L.P. |
| 100-2-0L | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| 100-2-0L | 81130 | WHITNEY CHAIN OPERATION POWER TRANSMISSION DIV DRESSER INDUSTRIES |
| 12P02 | 05643 | BARBER-GREENE CO |
| 12P02 | 0MKW7 | MINNPAR, LLC DBA MINNPAR |
| ASA100-2-0L | 72625 | DIAMOND CHAIN CO DIV OF AMSTED INDUSTRIES INC |
| ASA100-2-0L | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| ASA100-2-0L | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
| C6-65 | 05643 | BARBER-GREENE CO |
| C6-65 | 0MKW7 | MINNPAR, LLC DBA MINNPAR |
| D0UBLE470-0L | 72625 | DIAMOND CHAIN CO DIV OF AMSTED INDUSTRIES INC |
| D100-0L | 71041 | ALTRA HOLDINGS, INC. DIV BOSTON GEAR |
| D100-0L | 78985 | UNION CHAIN DIV OF UST INC |
| D470-0L | 05643 | BARBER-GREENE CO |
| D470-0L | 0MKW7 | MINNPAR, LLC DBA MINNPAR |
| MS421-100-2-1RC1CL | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RC100-2-0L | 36384 | FMC CORP LINK-BELT DIV |
| SP108 | 71459 | CHRISTIAN ENGINEERING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-247-3528
Related Products | NSN 3020-00-247-3528
Technical Data | NSN 3020-00-247-3528
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| NOMINAL PITCH DISTANCE | 1.250 INCHES |

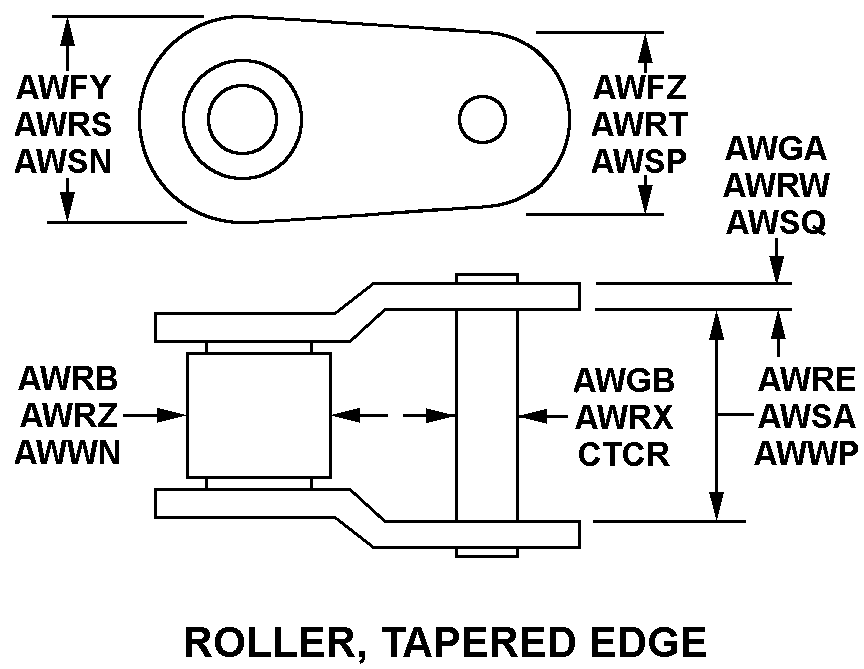

| LINK STYLE | C4 ROLLER, TAPERED EDGE |
