Product Details | HELICAL GEAR
3020-00-204-2868 A gear, cylindrical in form, with teeth on the outer surface at an angle to the axis of the gear. See also GEAR, ANTIBACKLASH, HELICAL
Part Alternates: 1834, 3020-00-204-2868, 00-204-2868, 3020002042868, 002042868
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-204-2868 | 05464 ( GEAR, HELICAL ) |
Drawings & Photos | NSN 3020-00-204-2868
Cross Reference | NSN 3020-00-204-2868
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1834 | 58265 | STRUTHERS WELLS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-204-2868
Related Products | NSN 3020-00-204-2868
Technical Data | NSN 3020-00-204-2868
| Characteristic | Specifications |
|---|---|
| TEETH QUANTITY | 61 |
| TEETH TYPE | SINGLE HELIX |
| TOOTH FORM | STANDARD |
| TOOTH DIRECTION | LEFT |
| PRESSURE ANGLE | 25.0000 DEGREES |
| HELIX ANGLE | 23.0000 DEGREES |

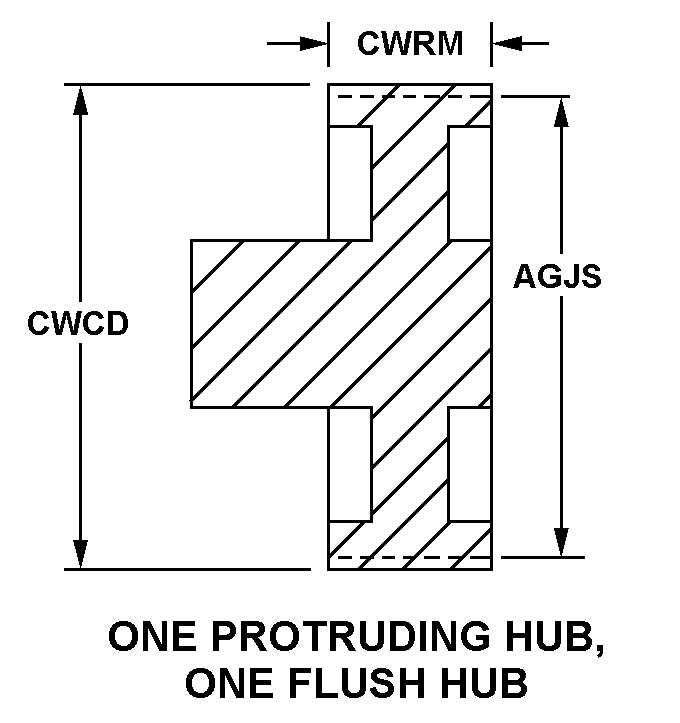

| STYLE DESIGNATOR | 5 ONE PROTRUDING HUB, ONE FLUSH HUB |
| PITCH DIAMETER | 20.4170 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 7.562 INCHES |
| NOMINAL OUTSIDE DIAMETER | 21.0310 INCHES |
| FACE NOMINAL WIDTH | 6.375 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 1.188 INCHES FIRST END |
| KEYWAY NOMINAL WIDTH | 1.250 INCHES BOTH ENDS |
| BODY STYLE | 3B WEBBED, OFFSET, SOLID |
