NSN 3010-01-484-9136 H6961602, H696-1602, H6961602A36
Product Details | RIGID SHAFT COUPLING
3010-01-484-9136 A device for connecting the ends of two shafts to produce in effect, one piece of rigid shafting so that the rotary motion of one shaft is transmitted to the other shaft. Couplings of the sleeve type must have an over-all length exceeding the outside diameter, or must have an internal spline.
Part Alternates: H6961602, H696-1602, H6961602A36, H696-1602-A36, 5637067896A36, 563-7067896-A36, 7067896, 3010-01-484-9136, 01-484-9136, 3010014849136, 014849136
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 10 MAY 2001 | 01-484-9136 | 13742 ( COUPLING, SHAFT, RIGID ) |
Drawings & Photos | NSN 3010-01-484-9136
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-01-484-9136
Technical Data | NSN 3010-01-484-9136
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | NICKEL ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 CL-A FORM-1 COND-FORG FED SPEC ALL MATERIAL RESPONSES |

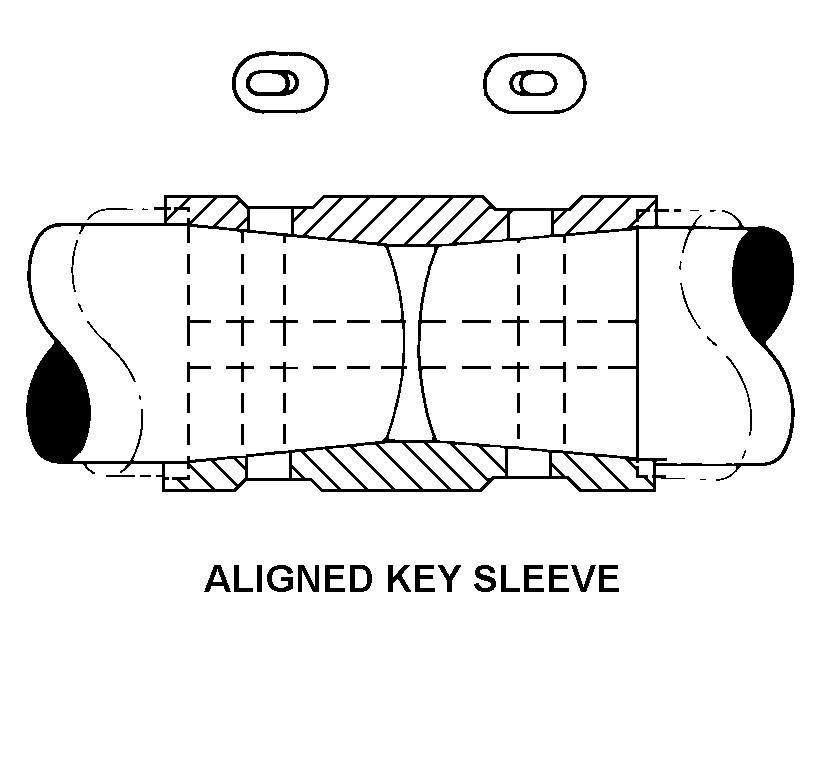

| STYLE DESIGNATOR | A9 ALIGNED KEY SLEEVE |
| OVERALL DIAMETER | 3.7500 INCHES NOMINAL |
| OVERALL LENGTH | 7.2500 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT BOTH ENDS |
| SPECIAL FEATURES | COUPLING ASSY. CONSISTS OF COUPLING HALF MALE P/N 563-7067896-94 AND COUPLING HALF FEMALE P/N 563-7067896-95 |
| III END ITEM IDENTIFICATION | VALVE HULL AND BACKUP HOVERING SYSTEM |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | COUPLING HALF MALE AND FEMALE |
Restrictions/Controls & Freight Information | NSN 3010-01-484-9136
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-484-9136
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
