NSN 3010-01-426-9132 M40011210, 400-1-3/8X5/16, 400138X516
Product Details | FLEXIBLE SHAFT COUPLING
3010-01-426-9132 A device for connecting the ends of two shafts so that rotary motion of one shaft is transmitted to the other shaft. It is constructed to allow for slight misalignment of shafts both linear and angular.
Part Alternates: M40011210, 400-1-3/8X5/16, 400138X516, 3010-01-426-9132, 01-426-9132, 3010014269132, 014269132
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 20 MAR 1996 | 01-426-9132 | 04459 ( COUPLING, SHAFT, FLEXIBLE ) |

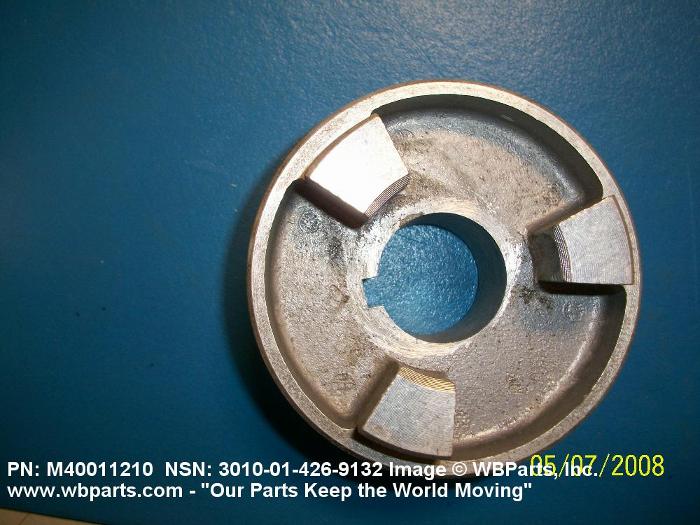

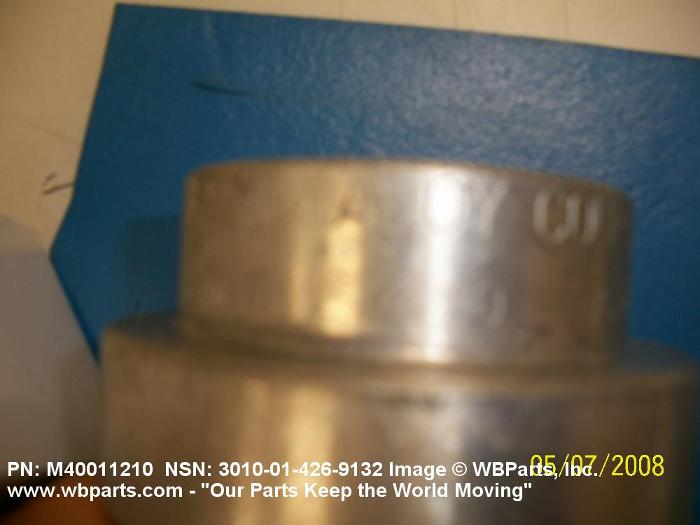

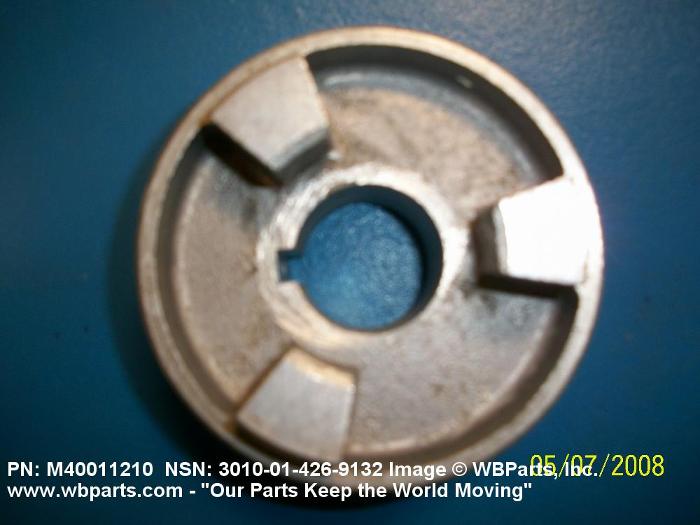

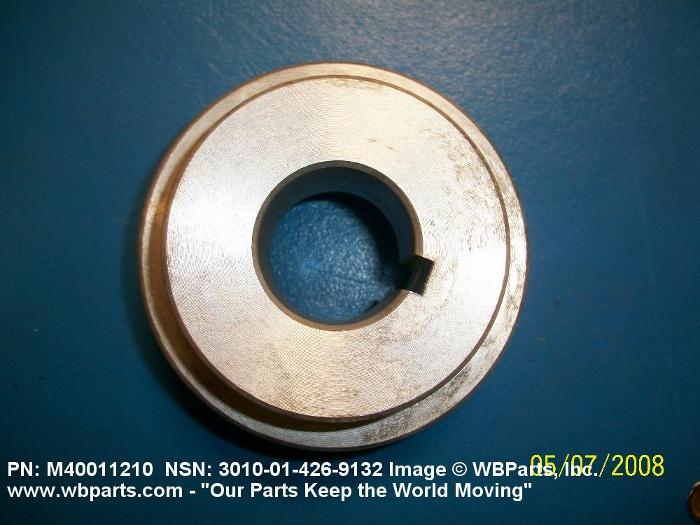

Drawings & Photos | NSN 3010-01-426-9132
Demand History | NSN 3010-01-426-9132
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-01-426-9132 | 2011-06-172 | 2 | Germany |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-01-426-9132
Technical Data | NSN 3010-01-426-9132
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | INSERT |
| OVERALL LENGTH | 4.240 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.980 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT BOTH ENDS |
| BORE DIAMETER | 1.8750 INCHES MAXIMUM BOTH ENDS |
| KEYING FACILITY QUANTITY | 1 BOTH ENDS |
| KEYING FACILITY TYPE | KEYWAY BOTH ENDS |
| KEYWAY WIDTH | 0.375 INCHES NOMINAL BOTH ENDS |
| SECURING METHOD | THREADED HOLE BOTH ENDS |
| THREADED HOLE QUANTITY | 1 BOTH ENDS |
| THREAD SIZE DESIGNATOR | 3/8-16 BOTH ENDS |
| FEATURES PROVIDED | KEYWAY |
| SPECIAL FEATURES | MATERIAL:MAGNESIUM |
Restrictions/Controls & Freight Information | NSN 3010-01-426-9132
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
