NSN 3010-01-421-4634 578064, 01-421-4634, 014214634
Product Details | RIGID SHAFT COUPLING
3010-01-421-4634 A device for connecting the ends of two shafts to produce in effect, one piece of rigid shafting so that the rotary motion of one shaft is transmitted to the other shaft. Couplings of the sleeve type must have an over-all length exceeding the outside diameter, or must have an internal spline.
Part Alternates: 578064, 3010-01-421-4634, 01-421-4634, 3010014214634, 014214634
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 08 NOV 1995 | 01-421-4634 | 13742 ( COUPLING, SHAFT, RIGID ) |
Drawings & Photos | NSN 3010-01-421-4634
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-01-421-4634
Technical Data | NSN 3010-01-421-4634
| Characteristic | Specifications |
|---|---|

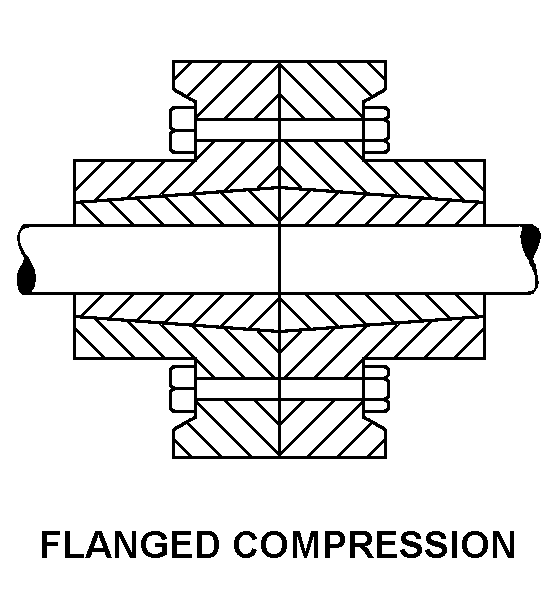

| STYLE DESIGNATOR | A6 FLANGED COMPRESSION |
| OVERALL DIAMETER | 1420.0 MILLIMETERS NOMINAL |
| BORE SHAPE | STRAIGHT BOTH ENDS |
| BORE LENGTH | 1185.0 MILLIMETERS NOMINAL FIRST END |
| FEATURES PROVIDED | BORE COUNTERBORE |
| SECURING METHOD | UNTHREADED HOLE |
| UNTHREADED HOLE QUANTITY | 10 |
| HOLE DIAMETER | 103.0 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | COUNTERBORE DIAMETER: FIRST END, 637.4 MM NOMINAL; COUNTERBORE DEPTH: FIRST END, 250.0 MM NOMINAL |
| III END ITEM IDENTIFICATION | WEAPONS SYSTEM STRATEGIC SEALIFT CONVERSION SHIPS CLASS |
Restrictions/Controls & Freight Information | NSN 3010-01-421-4634
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-421-4634
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
