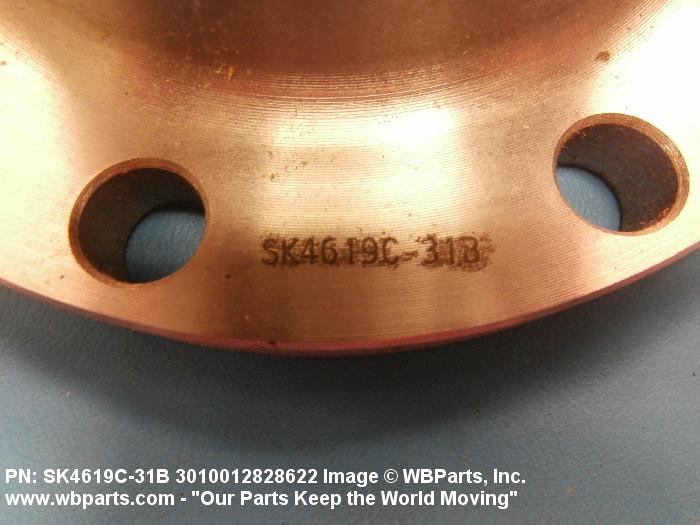

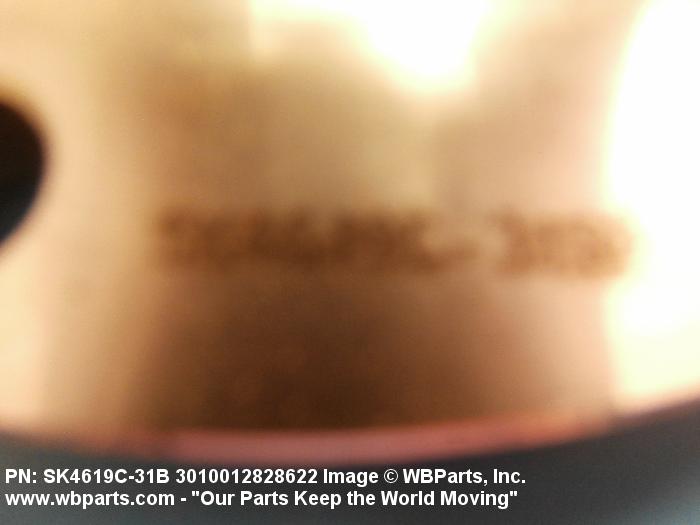

NSN 3010-01-282-8622 SK4619C31B, SK-4619C-31B, SK4619C-31B
Product Details | UNIVERSAL JOINT COMPANION FLANGE

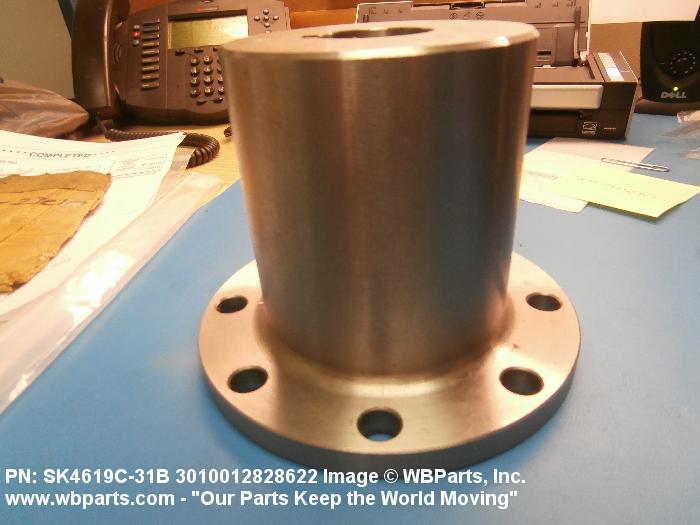

3010-01-282-8622 An item designed for nonvehicular applications having a flange on one end with provisions for a shaft on the other end. Designed to mate with the flange of a YOKE, UNIVERSAL JOINT, VEHICULAR for the purpose of transmitting rotary motion.
Part Alternates: SK4619C31B, SK-4619C-31B, SK4619C-31B, 3010-01-282-8622, 01-282-8622, 3010012828622, 012828622
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 23 JUL 1988 | 01-282-8622 | 52065 ( FLANGE, COMPANION, NONVEHICULAR UNIVERSAL JOINT ) |

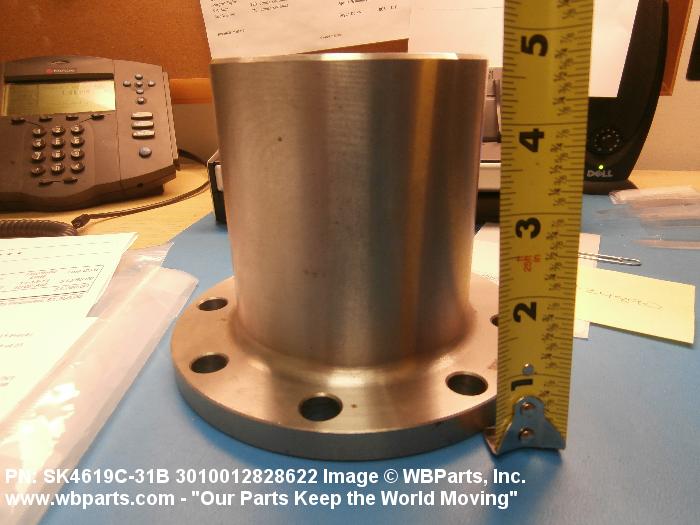

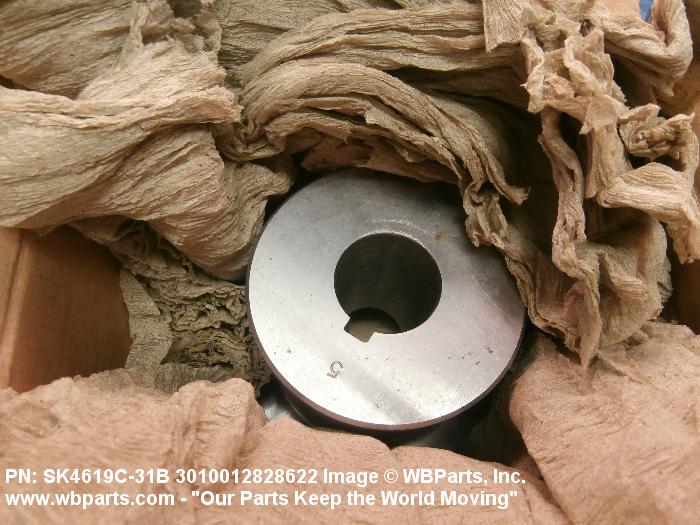

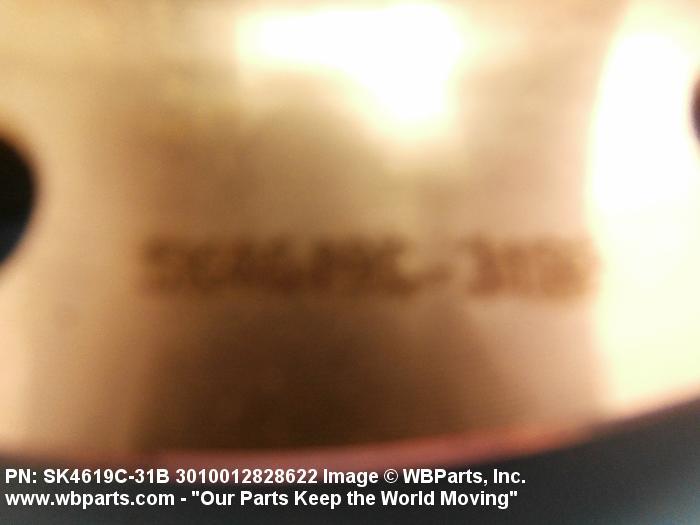

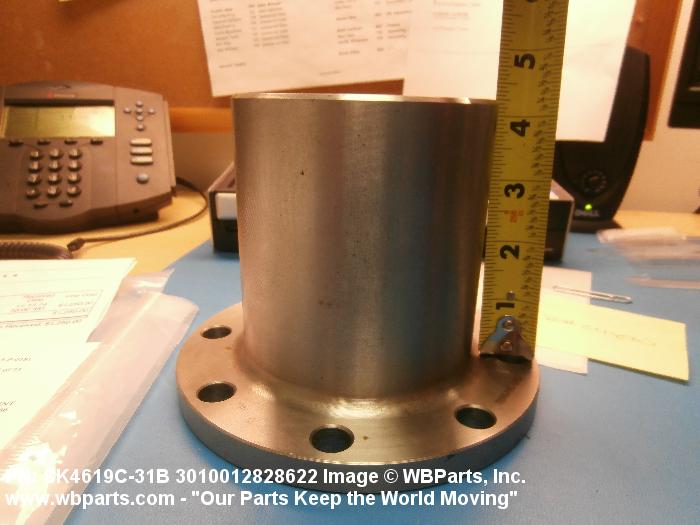

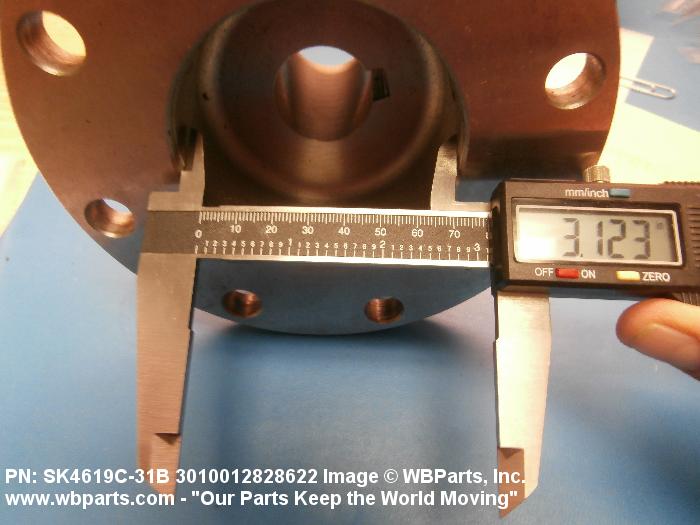

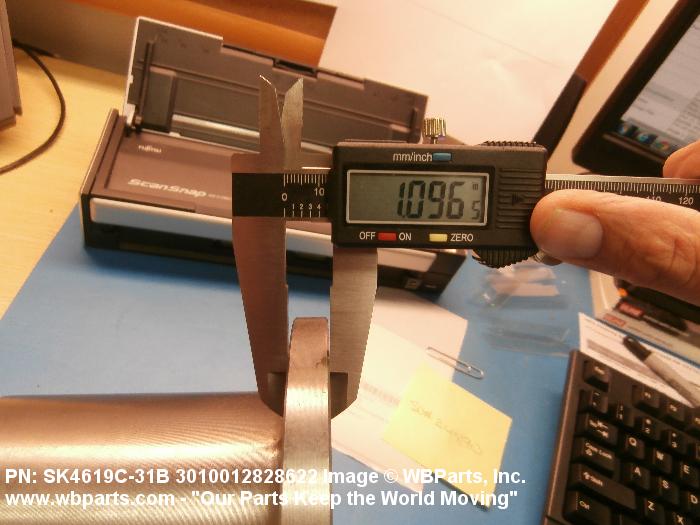

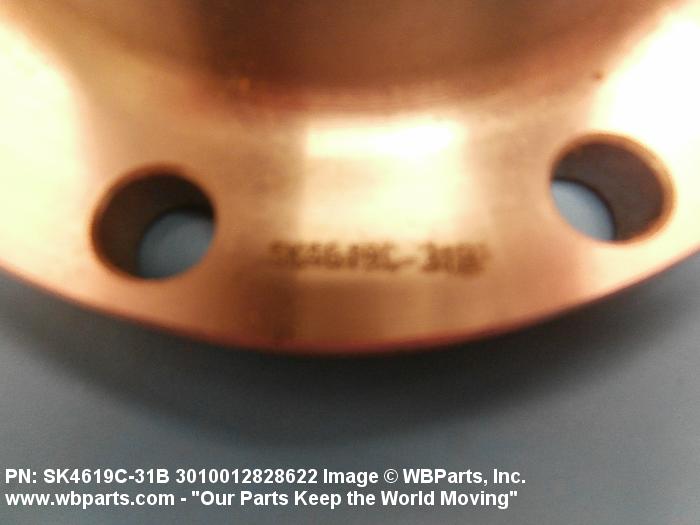

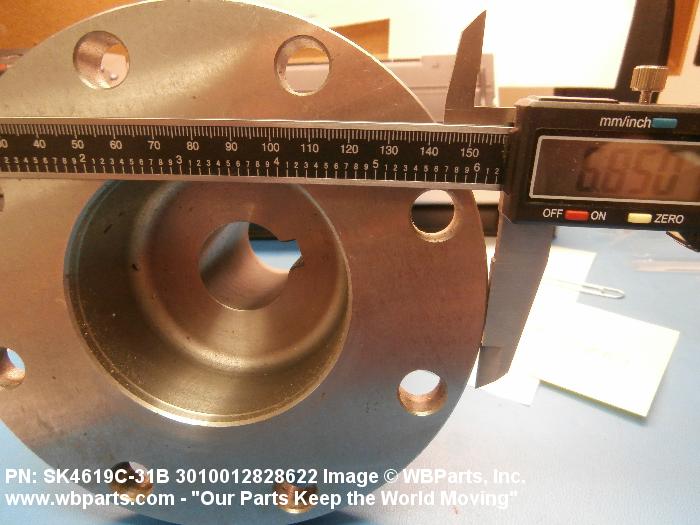

Drawings & Photos | NSN 3010-01-282-8622
Demand History | NSN 3010-01-282-8622
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-01-282-8622 | 2014-09-259 | 1 | United States |
| 3010-01-282-8622 | 2014-07-212 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-01-282-8622
Technical Data | NSN 3010-01-282-8622
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 4.760 INCHES NOMINAL |
| SPECIAL FEATURES | BORE TAPERED WITH KEYWAY; KEYING FACILITY QUANTITY: 1; DISTANCE FROM CENTERLINE TO KEYING FACILITY: 0.841 IN. NOMINAL |

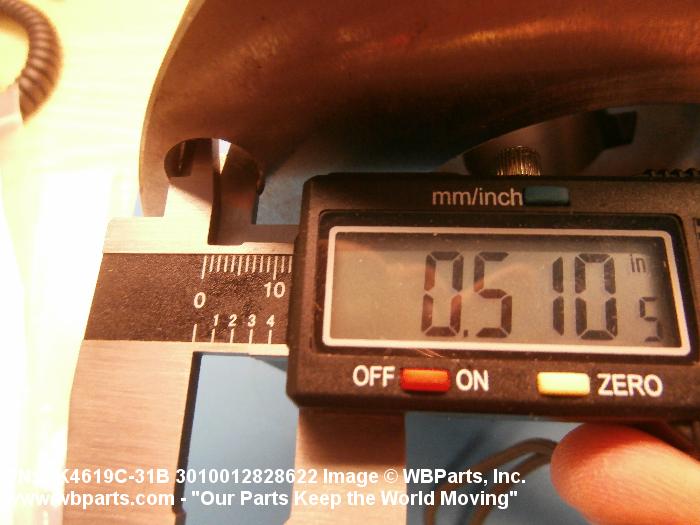

| (NON-CORE DATA) MOUNTING HOLE DIAMETER | 0.531 INCHES NOMINAL |

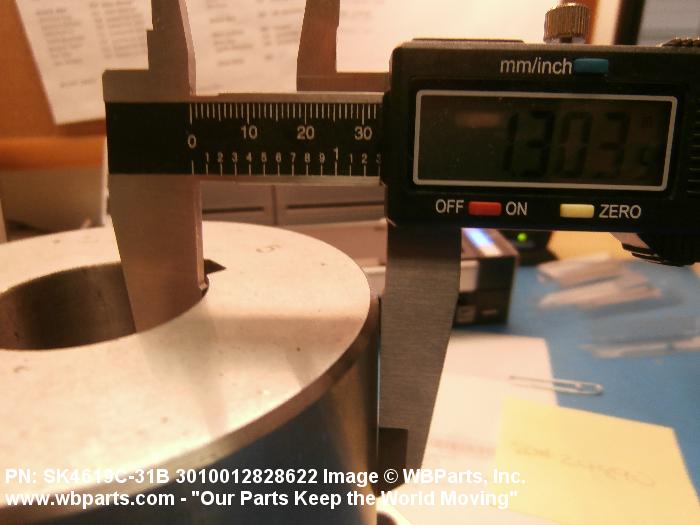

| (NON-CORE DATA) MAJOR DIAMETER | 1.302 INCHES NOMINAL |
| (NON-CORE DATA) FLANGE THICKNESS | 0.5000 INCHES NOMINAL |

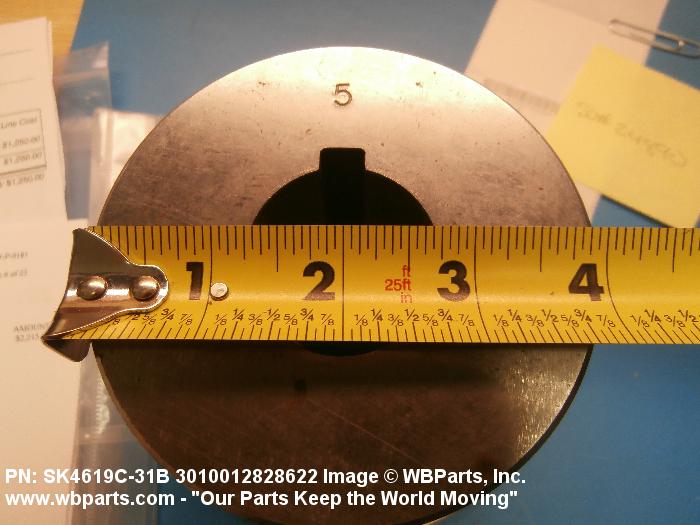

| (NON-CORE DATA) HUB OUTSIDE DIAMETER | 4.000 INCHES NOMINAL |
| (NON-CORE DATA) BORE LENGTH | 3.215 INCHES NOMINAL |
| (NON-CORE DATA) HUB LENGTH | 4.260 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL DIAMETER | 6.250 INCHES NOMINAL |
| (NON-CORE DATA) BOLT CIRCLE DIAMETER | 5.375 INCHES NOMINAL |
| (NON-CORE DATA) WIDTH JOINT | 0.375 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3010-01-282-8622
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 190500 | VEHICLE PARTS GROUP |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-282-8622
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
