NSN 3010-01-265-2652 S2081, S-2081, 01-265-2652
Product Details | FLEXIBLE SHAFT COUPLING
3010-01-265-2652 A device for connecting the ends of two shafts so that rotary motion of one shaft is transmitted to the other shaft. It is constructed to allow for slight misalignment of shafts both linear and angular.
Part Alternates: S2081, S-2081, 3010-01-265-2652, 01-265-2652, 3010012652652, 012652652
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 OCT 1987 | 01-265-2652 | 04459 ( COUPLING, SHAFT, FLEXIBLE ) |

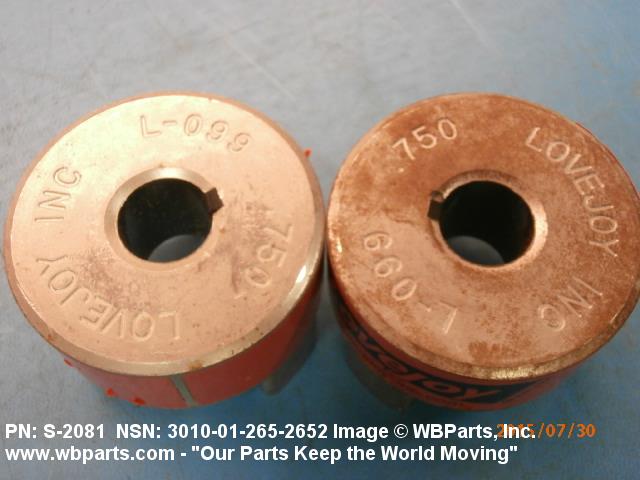

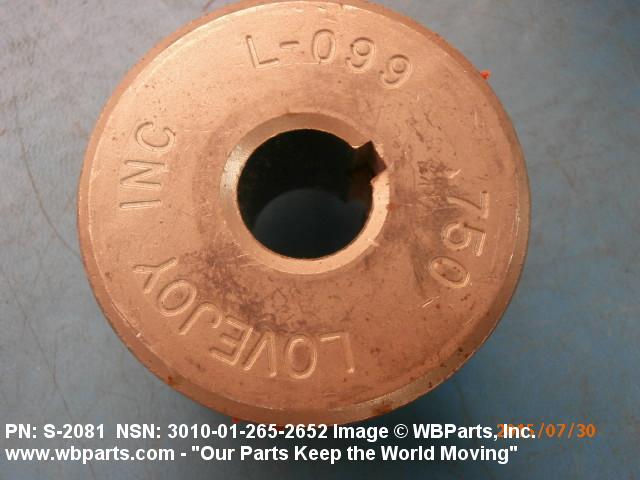

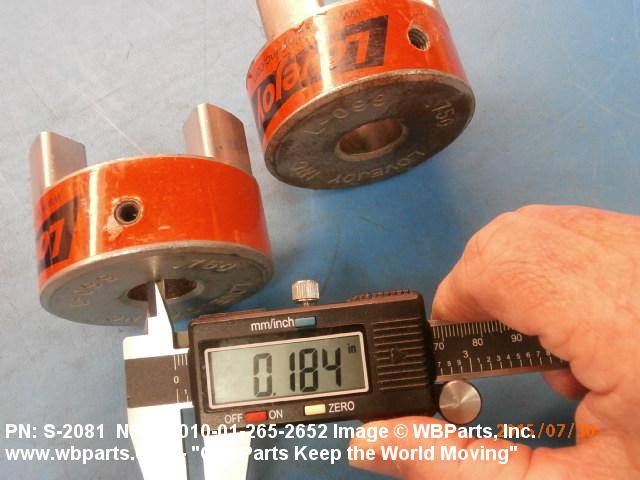

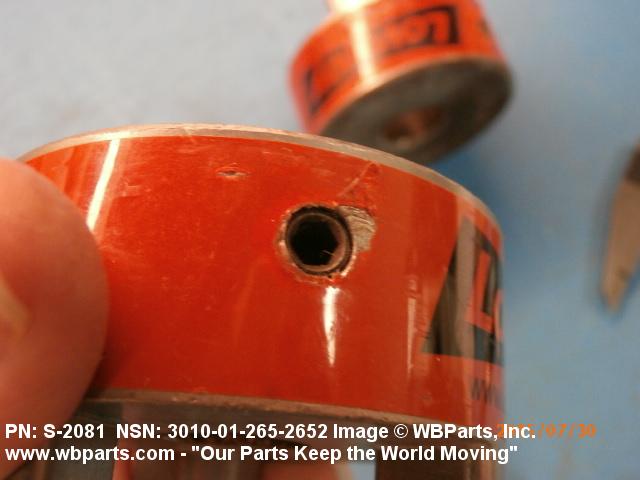

Drawings & Photos | NSN 3010-01-265-2652
Demand History | NSN 3010-01-265-2652
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-01-265-2652 | 2016-06-176 | 30 | United States |
| 3010-01-265-2652 | 2015-09-245 | 222 | DIBBS |
| 3010-01-265-2652 | 2015-07-202 | 11 | United States |
| 3010-01-265-2652 | 2015-07-191 | 11 | United States |
| 3010-01-265-2652 | 2015-03-81 | 123 | DIBBS |
| 3010-01-265-2652 | 2013-03-64 | 9 | DIBBS |
| 3010-01-265-2652 | 2012-11-325 | 0 | DIBBS |
| 3010-01-265-2652 | 2007-03-67 | 120 | DIBBS |
Cross Reference | NSN 3010-01-265-2652
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S-2081 | 25567 | GORMAN-RUPP COMPANY, THE DBA MANSFIELD DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-01-265-2652
Related Products | NSN 3010-01-265-2652
Technical Data | NSN 3010-01-265-2652
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | INSERT |

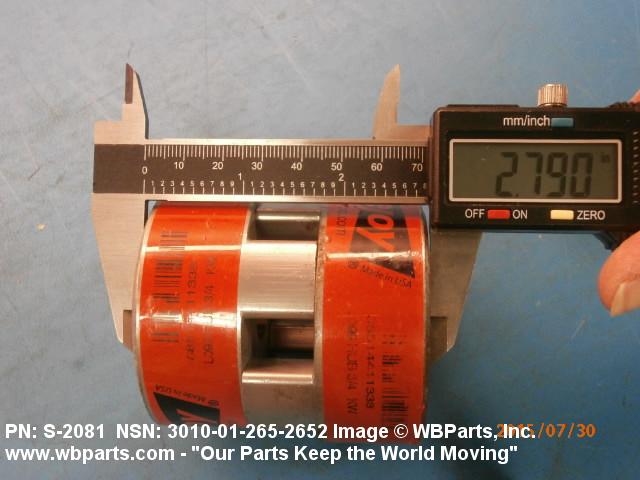

| OVERALL LENGTH | 2.8125 INCHES NOMINAL |

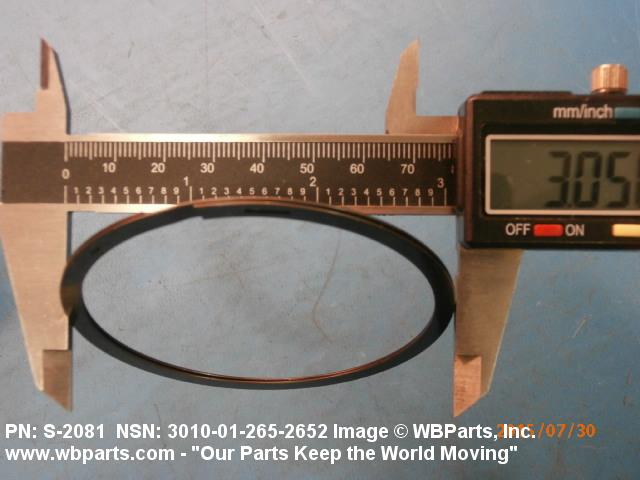

| OUTSIDE DIAMETER | 3.0625 INCHES NOMINAL |
| INSERT MATERIAL | RUBBER SYNTHETIC |
| BORE SHAPE | STRAIGHT BOTH ENDS |

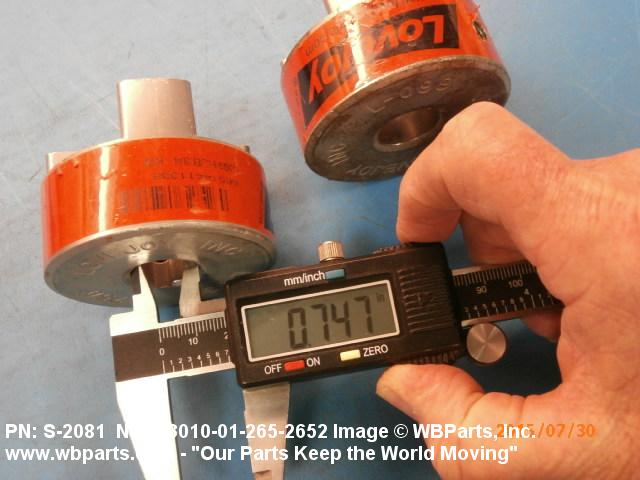

| BORE DIAMETER | 0.7505 INCHES NOMINAL BOTH ENDS |

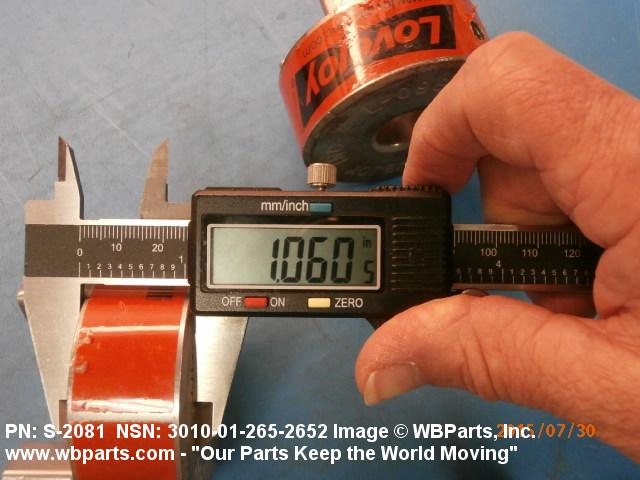

| BORE LENGTH | 1.0625 INCHES NOMINAL BOTH ENDS |
| KEYING FACILITY QUANTITY | 1 BOTH ENDS |
| KEYING FACILITY TYPE | KEYWAY BOTH ENDS |
| KEYWAY WIDTH | 0.1875 INCHES NOMINAL BOTH ENDS |
| KEYWAY DEPTH | 0.1875 INCHES NOMINAL BOTH ENDS |
| SECURING METHOD | THREADED HOLE BOTH ENDS |
| THREADED HOLE QUANTITY | 1 BOTH ENDS |
| THREADED HOLE LOCATION | 0.4375 IN. FROM HUB END OVER KEYWAY BOTH ENDS |
| THREAD SIZE DESIGNATOR | 5/16-18 BOTH ENDS |
| FURNISHED ITEMS AND QUANTITY | SETSCREW 2 |
| FEATURES PROVIDED | KEYWAY |
Restrictions/Controls & Freight Information | NSN 3010-01-265-2652
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-265-2652
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | NR | Heavy Expanded Mobility Tactical Trucks (HEMTT), all body types (ABT) M977, M978, M983, M984, M984A1, M985 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
