NSN 3010-01-083-6026 BEC42CC1010L90V, 01-083-6026, 010836026

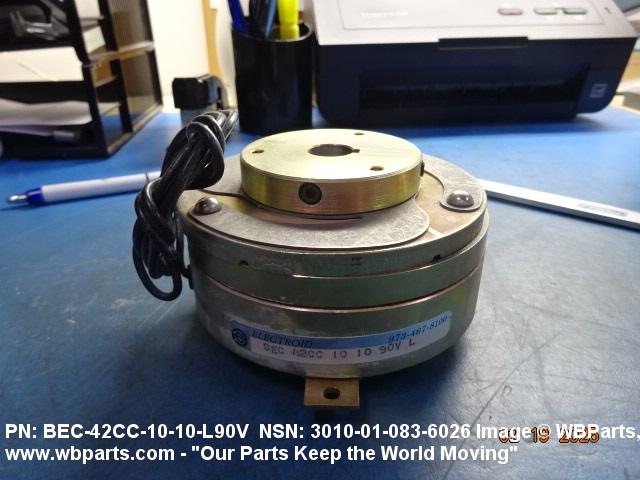

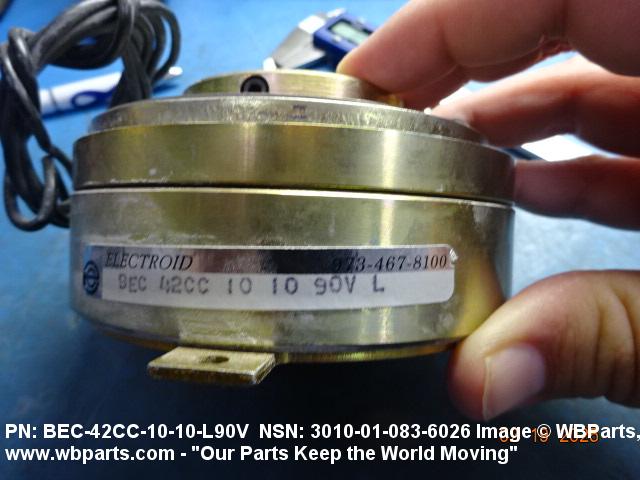

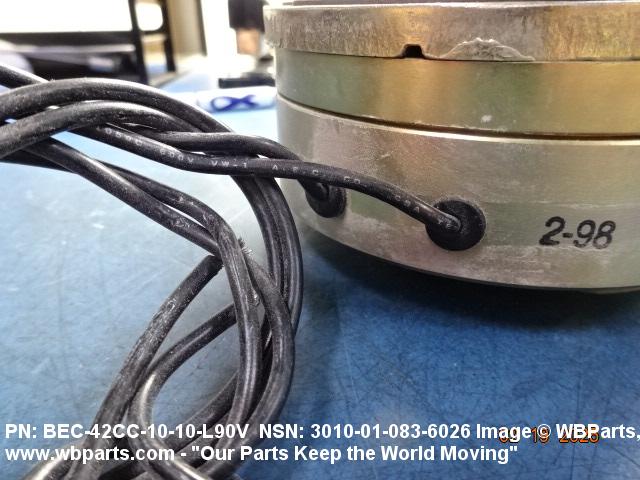

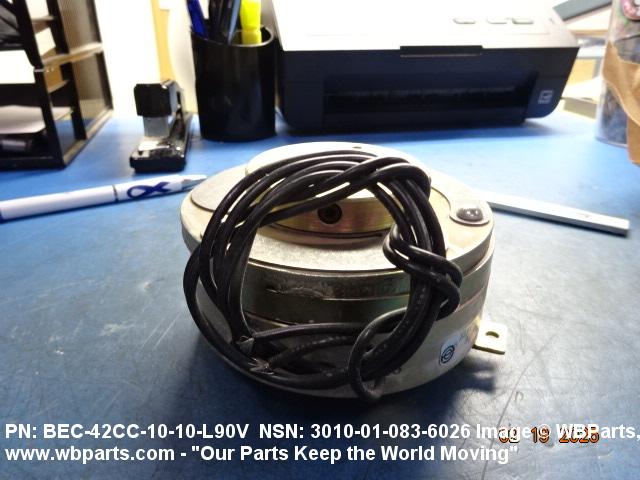

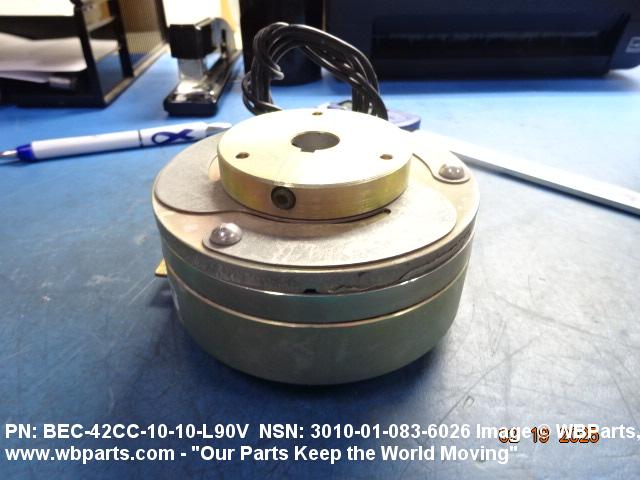

Product Details | MAGNETIC CLUTCH
3010-01-083-6026 A clutch which transmits motion or power from the driving or field member to the driven or armature member of a nonvehicular item, and whose friction surfaces are drawn and held together by magnetic attraction when electric current is applied.
Part Alternates: BEC42CC1010L90V, 3010-01-083-6026, 01-083-6026, 3010010836026, 010836026
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 26 SEP 1979 | 01-083-6026 | 52055 ( CLUTCH, MAGNETIC, NONVEHICULAR ) |
Cross Reference | NSN 3010-01-083-6026
| Part Number | Cage Code | Manufacturer |
|---|---|---|

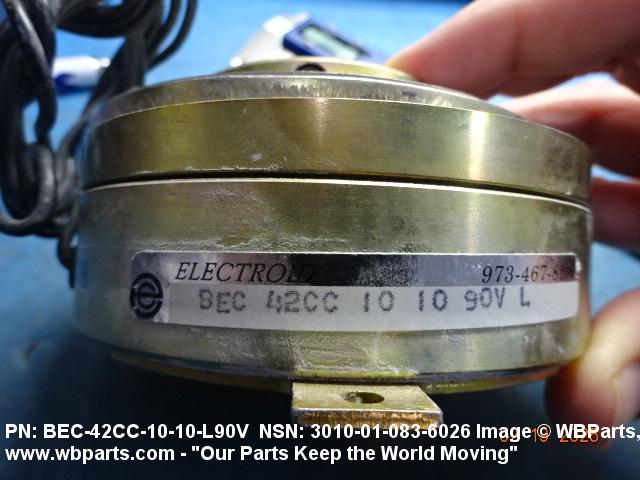

| BEC-42CC-10-10-L (90V) | 16554 | VALCOR ENGINEERING CORP DBA ELECTROID CO DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-01-083-6026
Related Products | NSN 3010-01-083-6026
Technical Data | NSN 3010-01-083-6026
| Characteristic | Specifications |
|---|---|
| DRIVE TYPE | DISC |

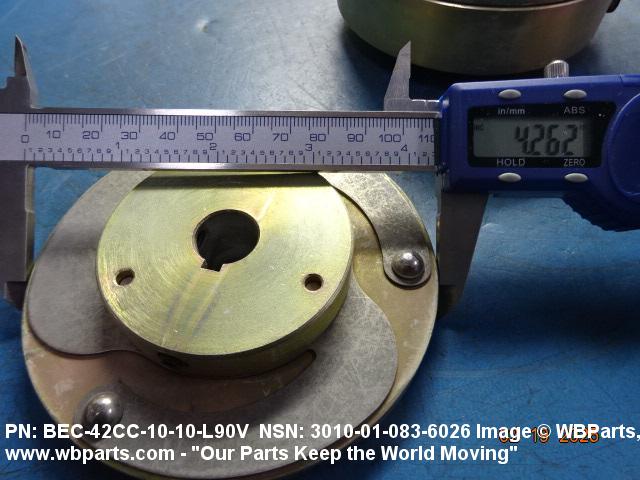

| OVERALL DIAMETER | 4.125 INCHES NOMINAL |
| OVERALL LENGTH | 3.843 INCHES NOMINAL |

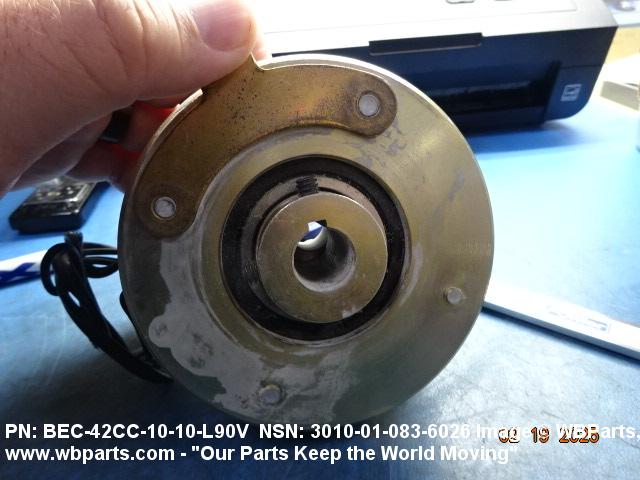

| ARMATURE HUB BORE DIAMETER | 0.625 INCHES NOMINAL |
| TORQUE CAPACITY | 25.000 FOOT-POUNDS NOMINAL |
| (NON-CORE DATA) DIRECT CURRENT REQUIRED | 130.0 MILLIAMPERES |
| (NON-CORE DATA) VOLTAGE IN VOLTS | 90.0 |
| (NON-CORE DATA) MAXIMUM SPEED RATING IN RPM | 5000.0 |
Restrictions/Controls & Freight Information | NSN 3010-01-083-6026
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061800 | ELECTROMAGNETIC BRAKES CLUTCHES ETC |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-083-6026
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
