NSN 3010-01-041-0217 G1600, 887C050809, 887F050048PC13
Product Details | GEARCASE-MOTOR
3010-01-041-0217 An item whose prime motion is produced by an electric motor driving through a geared mechanism which establishes the speed, direction and type of motion produced. The gearing may be integrally housed with the motor or coupled to a separately housed motor. For units with gearing mechanisms having a variable input/output ratio, manually or automatically selected, see MOTOR-TRANSMISSION.
Part Alternates: G1600, 887C050809, 887F050048PC13, 050809, 3010-01-041-0217, 01-041-0217, 3010010410217, 010410217
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 19 MAY 1977 | 01-041-0217 | 01102 ( GEARCASE-MOTOR ) |

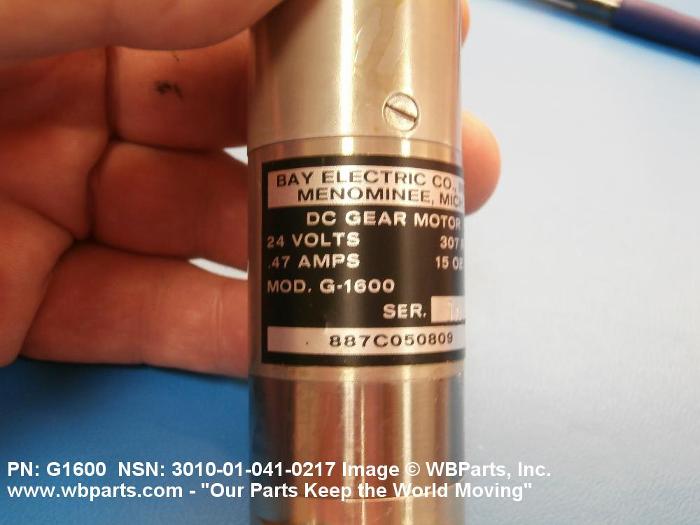

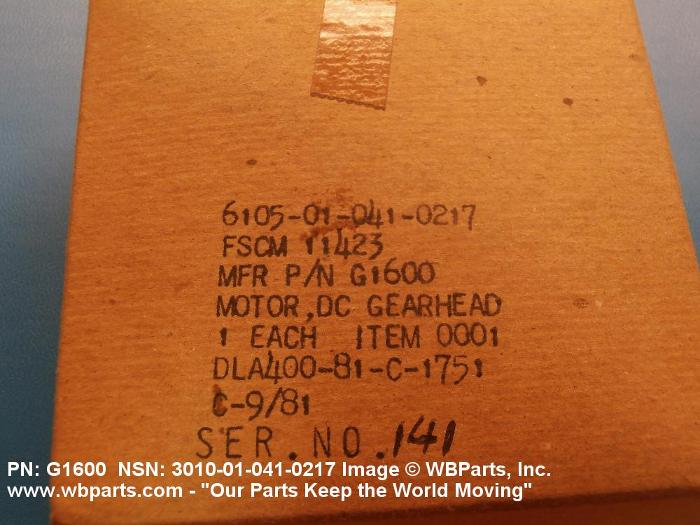

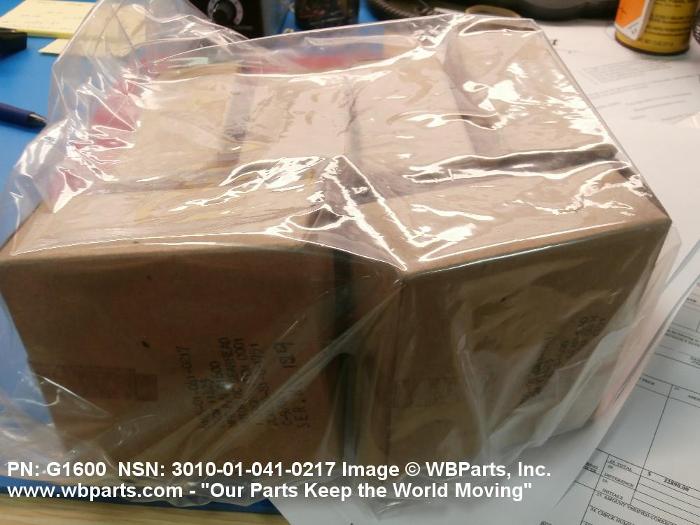

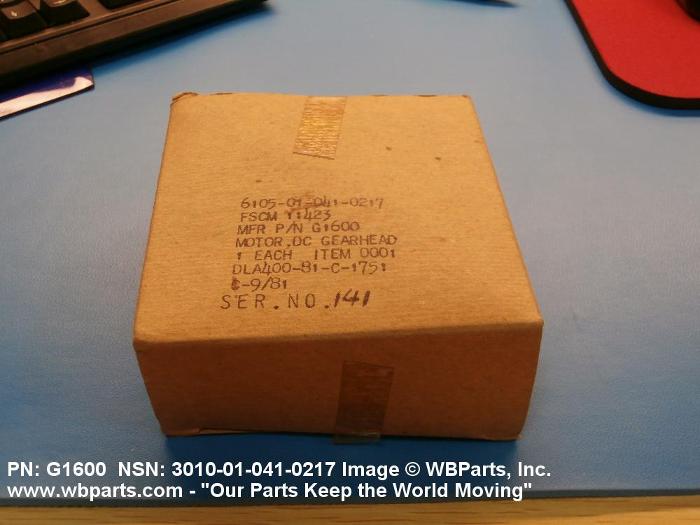

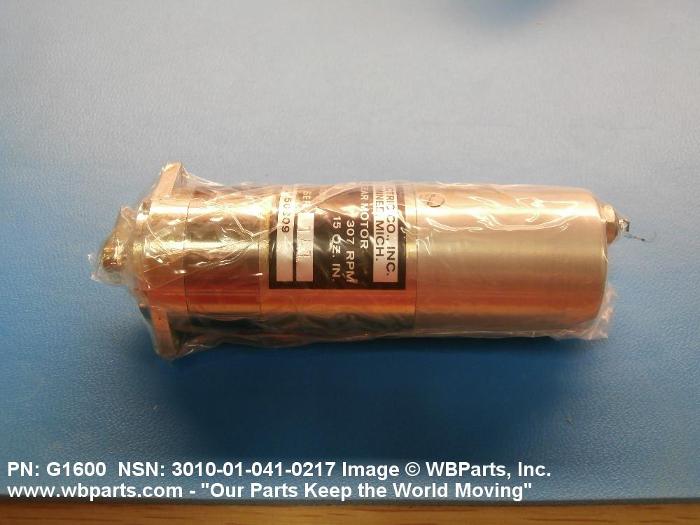

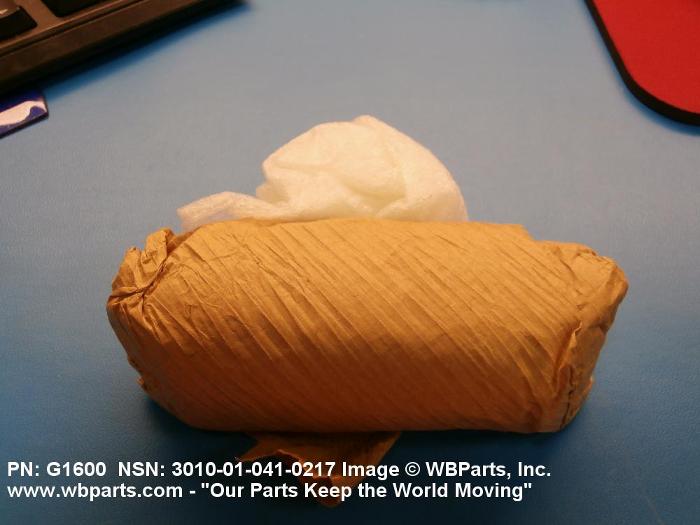

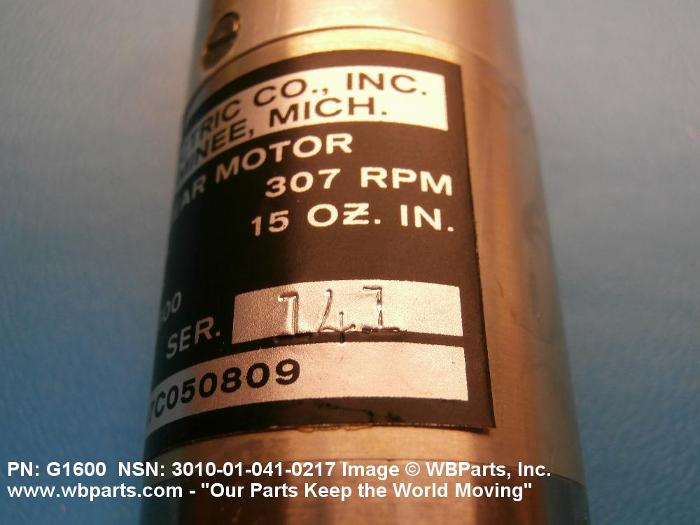

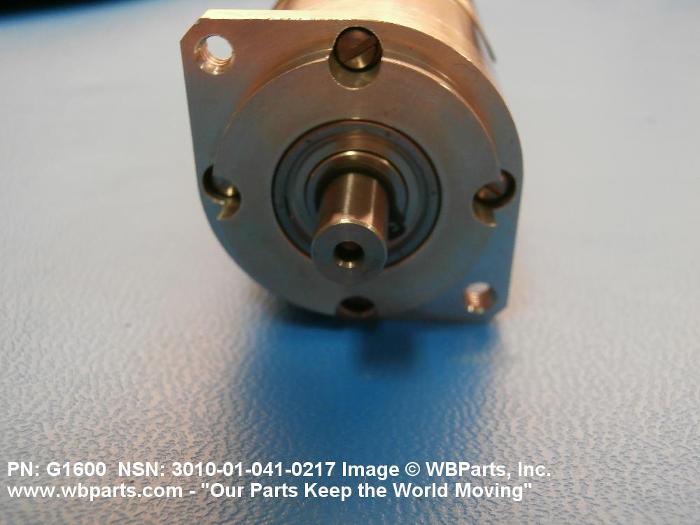

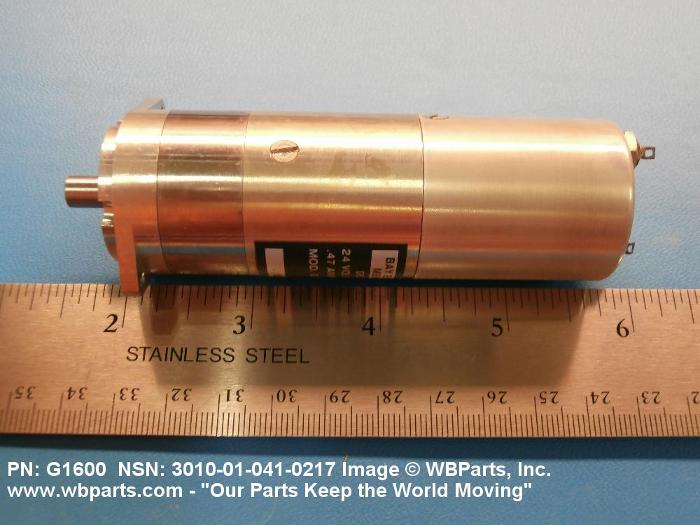

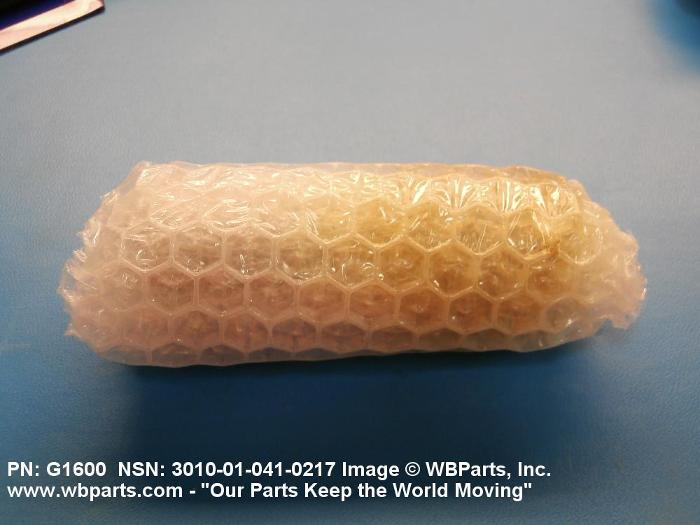

Drawings & Photos | NSN 3010-01-041-0217
Demand History | NSN 3010-01-041-0217
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-01-041-0217 | 2016-02-49 | 2 | DIBBS |
| 3010-01-041-0217 | 2012-08-226 | 0 | United States |
| 3010-01-041-0217 | 2012-06-181 | 6 | DIBBS |
| 3010-01-041-0217 | 2011-04-100 | 6 | DIBBS |
| 3010-01-041-0217 | 2010-11-326 | 6 | DIBBS |
Cross Reference | NSN 3010-01-041-0217
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 050809 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
| 887C050809 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 887C050809 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
| 887F050048PC13 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
| G1600 | 11423 | BAY PRECISION INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-01-041-0217
Related Products | NSN 3010-01-041-0217
Technical Data | NSN 3010-01-041-0217
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 4.125 INCHES |
| OVERALL WIDTH | 1.250 INCHES |
| OVERALL HEIGHT | 1.500 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.500 INCHES SINGLE END |
| MOUNTING METHOD | FLANGE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 1.420 INCHES |
| INCLOSURE FEATURE | DUSTPROOF AND EXPLOSION PROOF AND SPLASH PROOF |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT TYPE | DC INPUT |
| CURRENT RATING IN AMPS | 0.470 SINGLE OUTPUT |
| CURRENT RATING METHOD | NO LOAD |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 24.0 LINE TO NEUTRAL SINGLE INPUT |
| TORQUE RATING AND TYPE | 15.0 INCH-OUNCES STALLED |
| WINDING TYPE | PERMANENT MAGNET |
| DUTY CYCLE | CONTINUOUS |
| COOLING METHOD | NONVENTILATED |

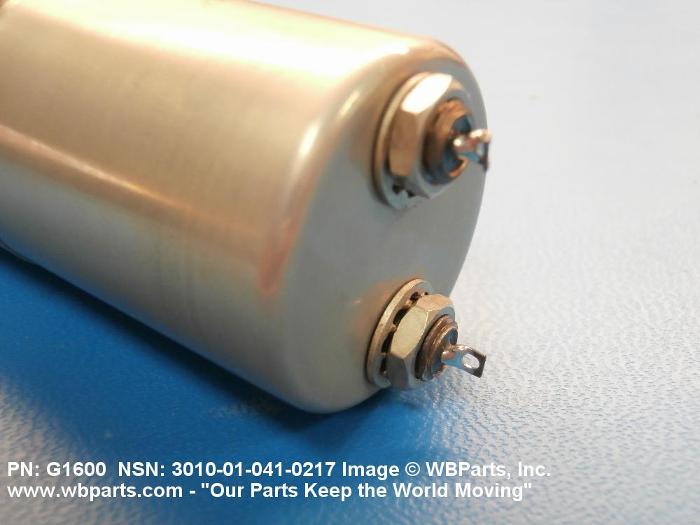

| TERMINAL TYPE AND QUANTITY | 2 SOLDER LUG |
| SPEED CONTROL METHOD AND DEVICE TYPE | AUTOMATIC MECHANICAL |
| SHAFT ROTATION DIRECTION | CLOCKWISE SINGLE END |
| GEARED HEAD OUTPUT SHAFT SPEED RATING | 34.000 SINGLE REVOLUTIONS PER MINUTE SINGLE END |
| GEARED HEAD OUTPUT SHAFT ALIGNMENT POSITION | INLINE W/ARMATURE SINGLE END |
| SHAFT END CHARACTERISTIC | A1 SINGLE STYLE SINGLE END |
| SHAFT DIAMETER | 1.0630 INCHES NOMINAL SINGLE END |
| FEATURES PROVIDED | VERTICAL MOUNTING POSITION AND HORIZONTAL MOUNTING POSITION |
| MANUFACTURERS CODE | 11423 |
| DESIGN CONTROL REFERENCE | G1600 |
Restrictions/Controls & Freight Information | NSN 3010-01-041-0217
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062070 | GEAR MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-041-0217
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
