NSN 3010-00-873-7725 C5A1036, C5A1194, G15P5037
Product Details | GEARCASE-MOTOR
3010-00-873-7725 An item whose prime motion is produced by an electric motor driving through a geared mechanism which establishes the speed, direction and type of motion produced. The gearing may be integrally housed with the motor or coupled to a separately housed motor. For units with gearing mechanisms having a variable input/output ratio, manually or automatically selected, see MOTOR-TRANSMISSION.
Part Alternates: C5A1036, C5A1194, G15P5037, RC15230, 5A1036, 5A1194, 3010-00-873-7725, 00-873-7725, 3010008737725, 008737725
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-873-7725 | 01102 ( GEARCASE-MOTOR ) |

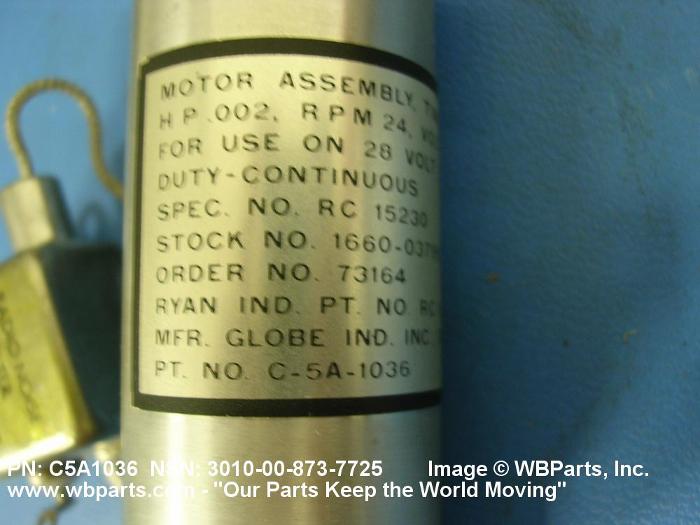

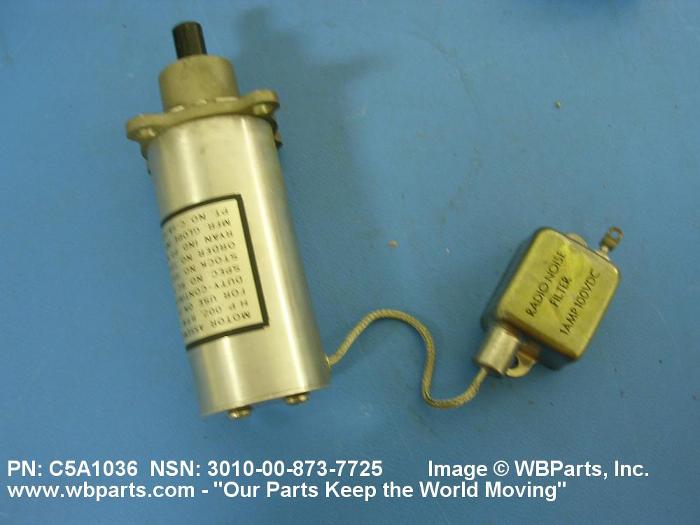

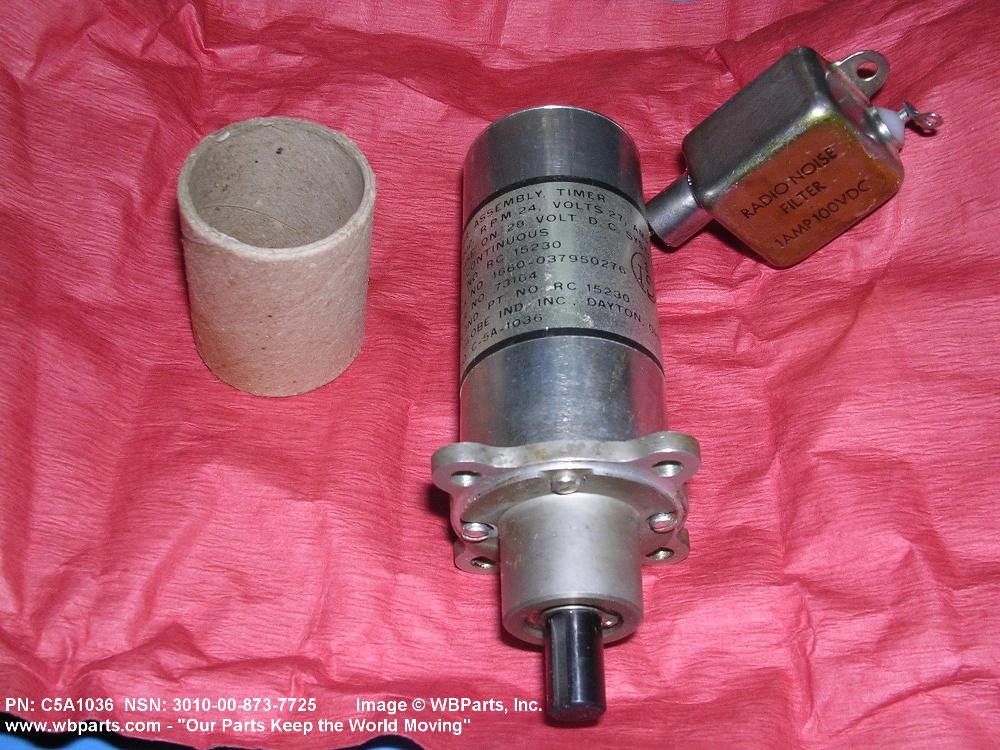

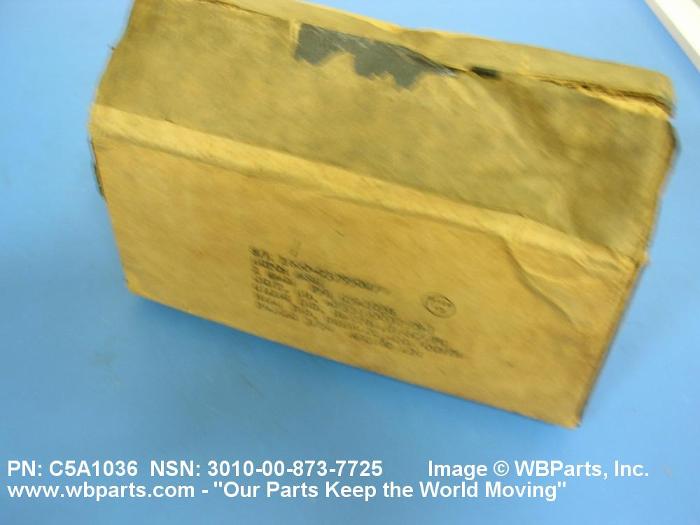

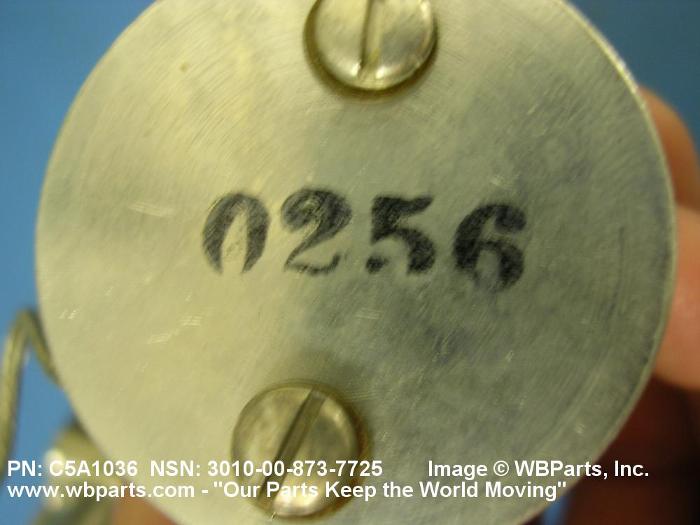

Drawings & Photos | NSN 3010-00-873-7725
Demand History | NSN 3010-00-873-7725
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5A1194 | 2008-07-190 | 1 | United States |
| 5A1194 | 2008-07-190 | 1 | United States |
| 5A1194 | 2007-07-200 | 1 | United States |
| 5A1194 | 2007-06-179 | 1 | United States |
Cross Reference | NSN 3010-00-873-7725
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5A1036 | 25140 | GLOBE MOTORS, INC. DBA GLOBE MOTORS |
| 5A1194 | 25140 | GLOBE MOTORS, INC. DBA GLOBE MOTORS |
| C5A1036 | 25140 | GLOBE MOTORS, INC. DBA GLOBE MOTORS |
| C5A1194 | 25140 | GLOBE MOTORS, INC. DBA GLOBE MOTORS |
| G15P5037 | 94033 | CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV |
| RC15230 | 48ZY0 | MAS COMPONENTS AND COATINGS LLC DIV MAS COMPONENTS & COATINGS LLC |
| RC15230 | 75324 | KILGORE FLARES COMPANY LLC |
| RC15230 | 93712 | ALLIANT DEFENSE ELECTRONICS SYSTEMS INC DBA LUNDY TECHNICAL CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-873-7725
Related Products | NSN 3010-00-873-7725
Technical Data | NSN 3010-00-873-7725
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 4.050 INCHES |
| OVERALL WIDTH | 1.906 INCHES |
| OVERALL HEIGHT | 1.906 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.500 INCHES SINGLE END |
| MOUNTING METHOD | FLANGE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 1.531 INCHES |
| INCLOSURE FEATURE | EXPLOSION PROOF |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT TYPE | DC INPUT |
| CURRENT RATING IN AMPS | 0.300 SINGLE OUTPUT |
| CURRENT RATING METHOD | LOAD |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 28.0 LINE TO NEUTRAL SINGLE INPUT |
| TORQUE RATING AND TYPE | 3.1 INCH-POUNDS RUNNING |
| WINDING TYPE | PERMANENT MAGNET |
| DUTY CYCLE | CONTINUOUS |
| COOLING METHOD | NONVENTILATED |
| MAXIMUM OPERATING ALTITUDE RATING | 60000.0 FEET |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| SHAFT ROTATION DIRECTION | CLOCKWISE SINGLE END |
| GEARED HEAD OUTPUT SHAFT SPEED RATING | 27.600 SINGLE REVOLUTIONS PER MINUTE SINGLE END |
| GEARED HEAD OUTPUT SHAFT ALIGNMENT POSITION | INLINE W/ARMATURE SINGLE END |
| SHAFT END CHARACTERISTIC | A11 SINGLE STYLE SINGLE END |
| SHAFT DIAMETER | 0.3750 INCHES NOMINAL SINGLE END |
| FEATURES PROVIDED | VERTICAL MOUNTING POSITION AND HORIZONTAL MOUNTING POSITION |

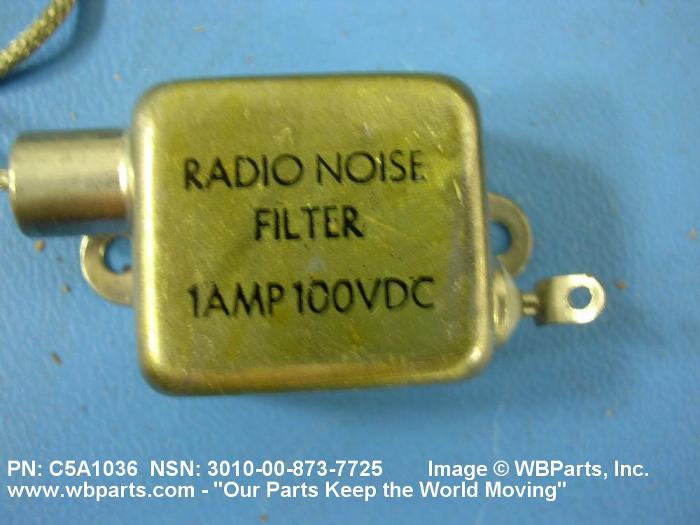

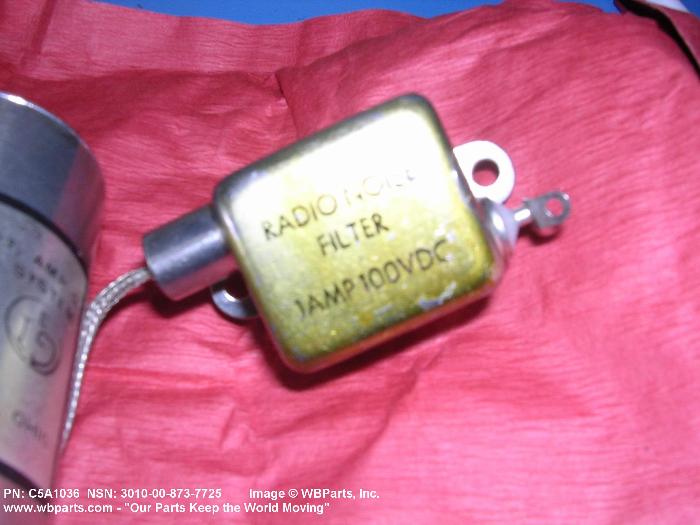

| SPECIAL FEATURES | RADIO INTERFERENCE SUPPRESSION |
Restrictions/Controls & Freight Information | NSN 3010-00-873-7725
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197339 | WHEELS COG/GEAR/PINION I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-873-7725
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
