NSN 3010-00-869-2441 VW1A8673, VW1A867-3, 9001301
Product Details | GEARCASE-MOTOR
3010-00-869-2441 An item whose prime motion is produced by an electric motor driving through a geared mechanism which establishes the speed, direction and type of motion produced. The gearing may be integrally housed with the motor or coupled to a separately housed motor. For units with gearing mechanisms having a variable input/output ratio, manually or automatically selected, see MOTOR-TRANSMISSION.
Part Alternates: VW1A8673, VW1A867-3, 9001301, 90013-01, 9001405, 90014-05, 3010-00-869-2441, 00-869-2441, 3010008692441, 008692441
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1960 | 00-869-2441 | 01102 ( GEARCASE-MOTOR ) |

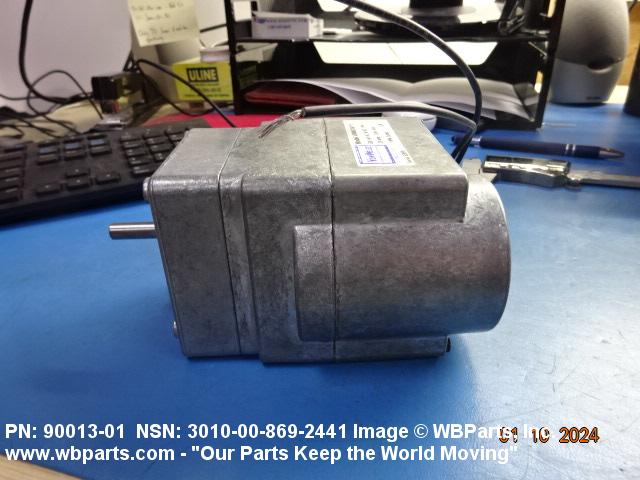

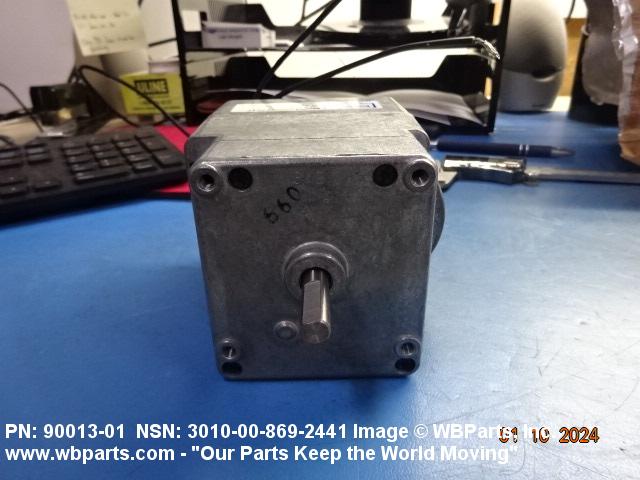

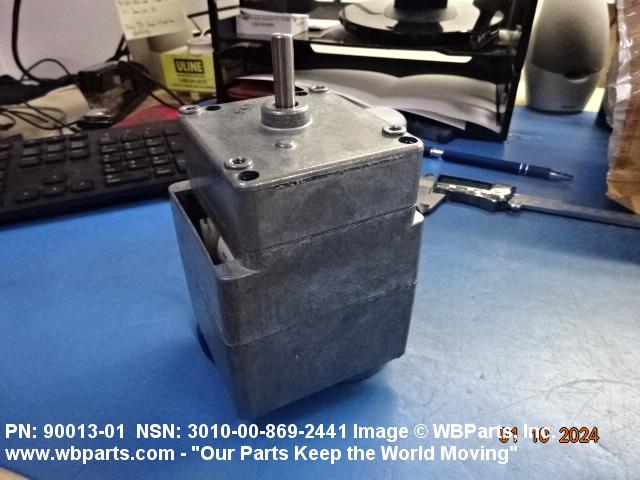

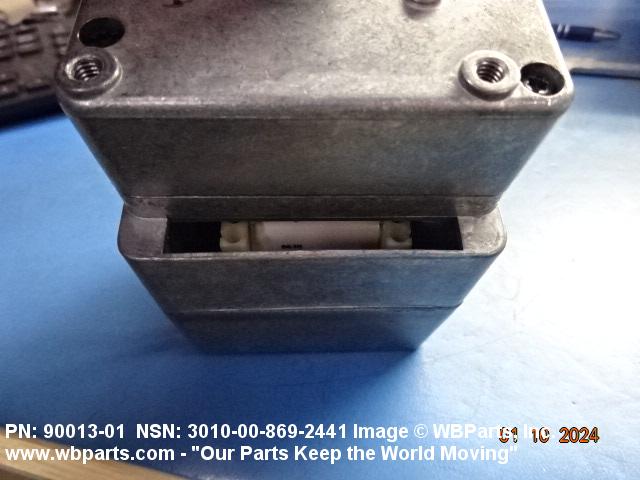

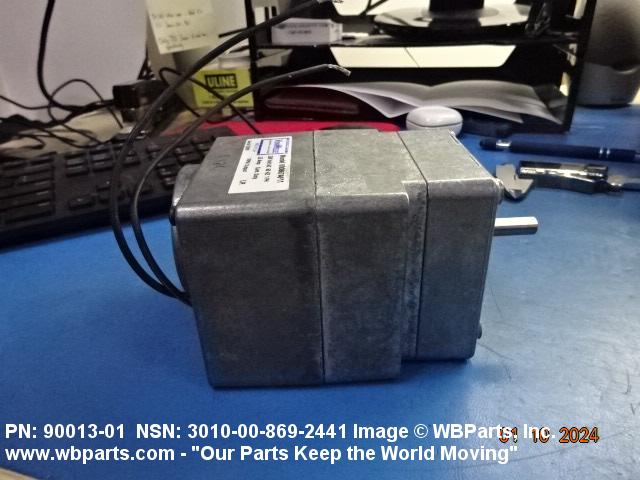

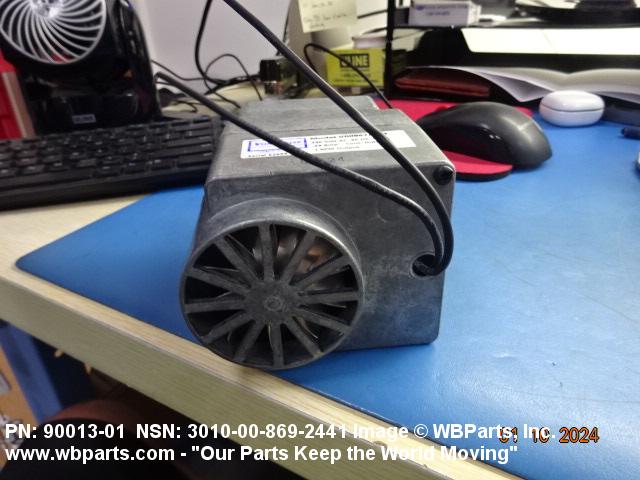

Drawings & Photos | NSN 3010-00-869-2441
Demand History | NSN 3010-00-869-2441
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9001301 | 2023-11-334 | 2 | United States |
| 3010-00-869-2441 | 2010-12-347 | 2 | DIBBS |
| 3010-00-869-2441 | 2009-05-151 | 80 | DIBBS |
| 3010-00-869-2441 | 2009-04-106 | 24 | DIBBS |
| 3010-00-869-2441 | 2008-11-317 | 13 | DIBBS |
| 3010-00-869-2441 | 2007-03-71 | 17 | DIBBS |
Cross Reference | NSN 3010-00-869-2441
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-00-869-2441
Technical Data | NSN 3010-00-869-2441
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 4.188 INCHES |
| OVERALL WIDTH | 3.375 INCHES |
| OVERALL HEIGHT | 3.188 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.875 INCHES SINGLE END |
| MOUNTING METHOD | FACE |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED HOLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 3.375 INCHES |
| INCLOSURE FEATURE | OPEN |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT TYPE | AC INPUT |
| CURRENT RATING IN AMPS | 0.240 SINGLE OUTPUT |
| CURRENT RATING METHOD | LOAD |
| FREQUENCY IN HERTZ | 60.0 INPUT |
| PHASE | SINGLE INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 230.0 LINE TO NEUTRAL SINGLE INPUT |
| WINDING TYPE | INDUCTION-SHADED POLE |
| DUTY CYCLE | CONTINUOUS |
| COOLING METHOD | FAN COOLED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| SPEED CONTROL METHOD AND DEVICE TYPE | AUTOMATIC MECHANICAL |
| SHAFT ROTATION DIRECTION | CLOCKWISE SINGLE END |
| GEARED HEAD OUTPUT SHAFT SPEED RATING | 0.250 SINGLE REVOLUTIONS PER MINUTE SINGLE END |
| GEARED HEAD OUTPUT SHAFT ALIGNMENT POSITION | INLINE W/ARMATURE SINGLE END |
| SHAFT END CHARACTERISTIC | A5 SINGLE STYLE SINGLE END |
| SHAFT DIAMETER | 0.3120 INCHES NOMINAL SINGLE END |
| FLATTED PORTION LENGTH | 0.8120 INCHES NOMINAL SINGLE END |
| FLAT DEPTH | 0.0310 INCHES NOMINAL SINGLE END |
| FEATURES PROVIDED | VERTICAL MOUNTING POSITION AND HORIZONTAL MOUNTING POSITION |
| SPECIAL FEATURES | BRACKET 1 EA |
| MANUFACTURERS CODE | 82974 |
| DESIGN CONTROL REFERENCE | 90013-01 |
Restrictions/Controls & Freight Information | NSN 3010-00-869-2441
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062070 | GEAR MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-869-2441
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
