NSN 3010-00-787-7227 59A1026391, 59A102-6391, 9195434
Product Details | GEARCASE-MOTOR
3010-00-787-7227 An item whose prime motion is produced by an electric motor driving through a geared mechanism which establishes the speed, direction and type of motion produced. The gearing may be integrally housed with the motor or coupled to a separately housed motor. For units with gearing mechanisms having a variable input/output ratio, manually or automatically selected, see MOTOR-TRANSMISSION.
Part Alternates: 59A1026391, 59A102-6391, 9195434, 3010-00-787-7227, 00-787-7227, 3010007877227, 007877227
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-787-7227 | 01102 ( GEARCASE-MOTOR ) |

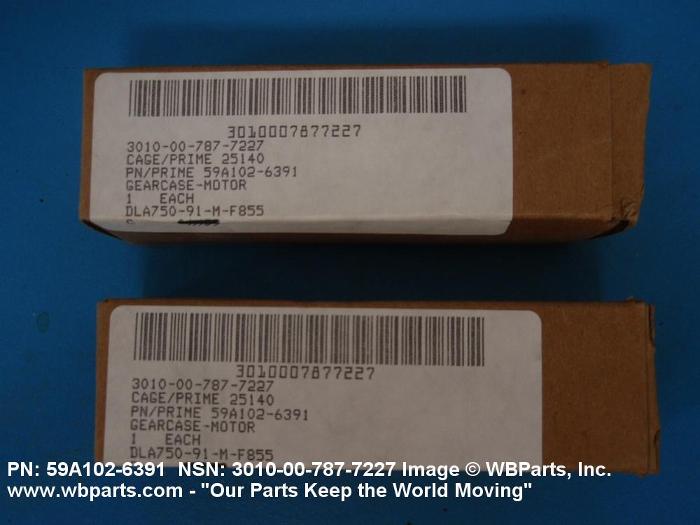

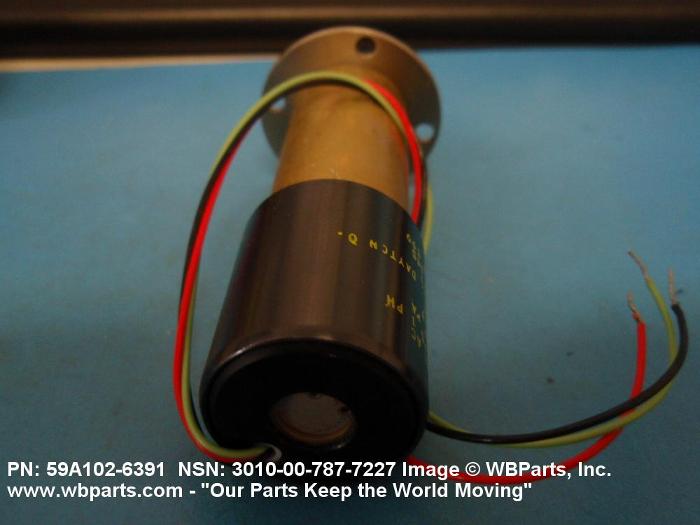

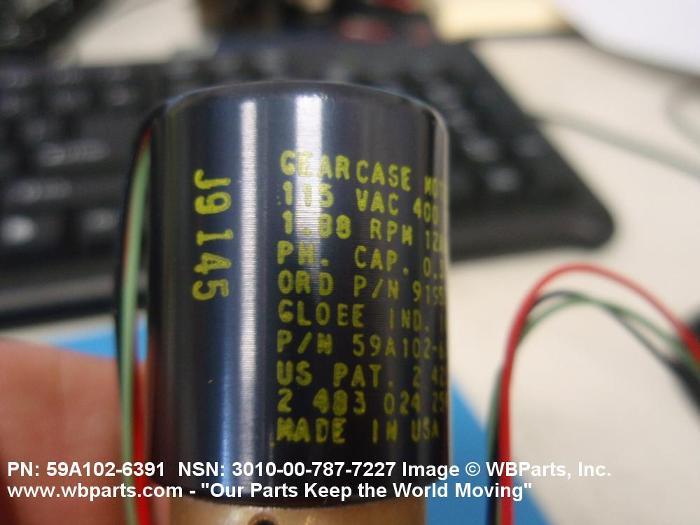

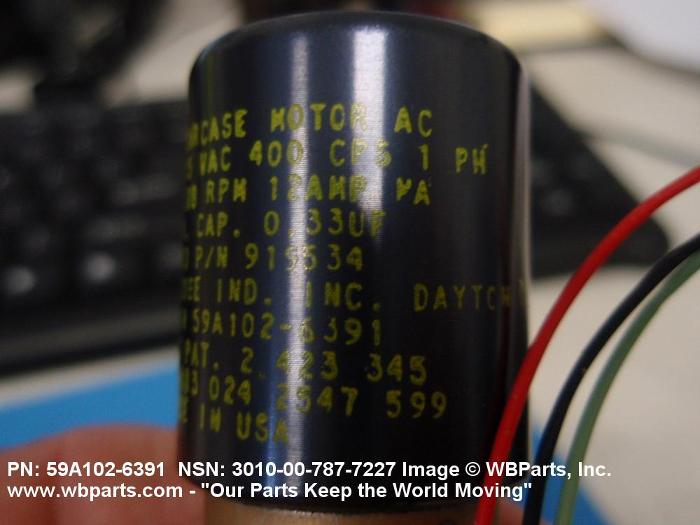

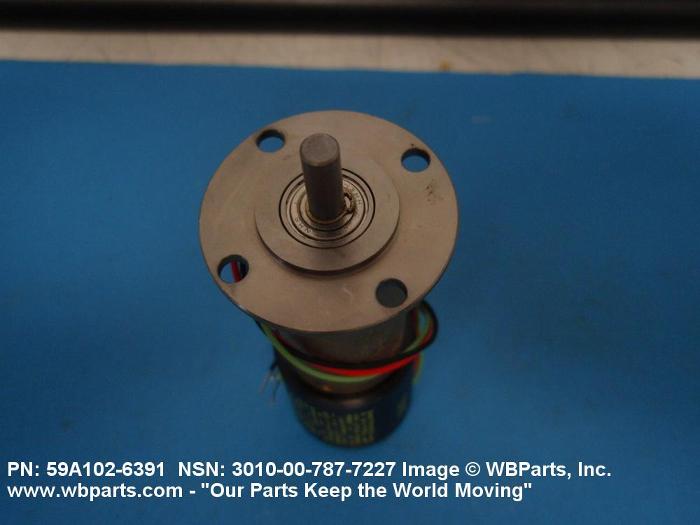

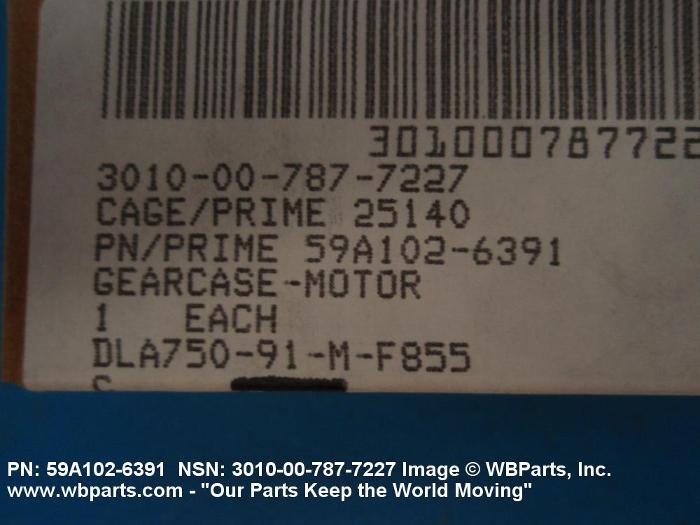

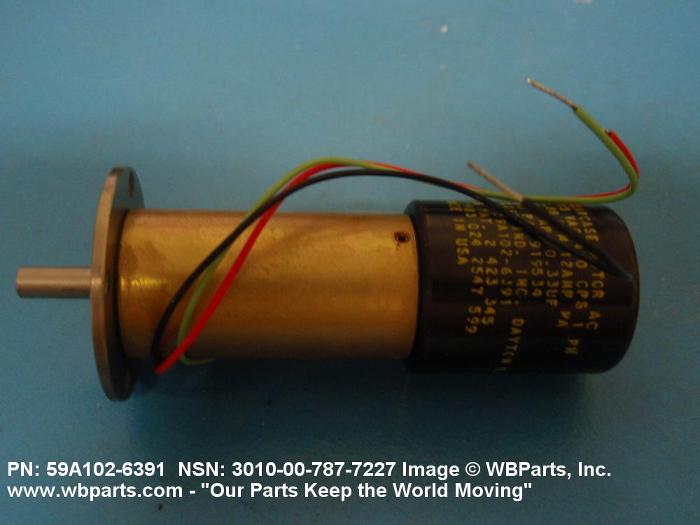

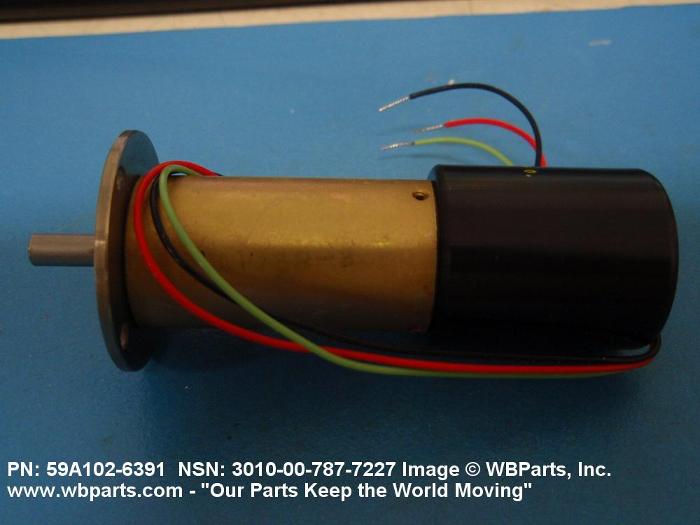

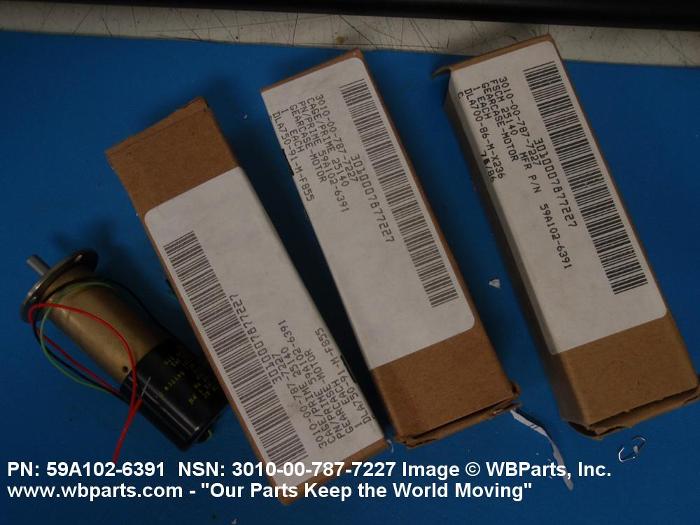

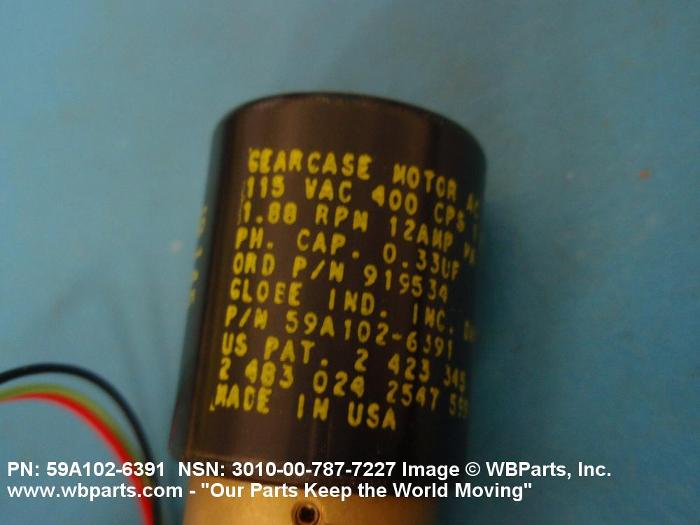

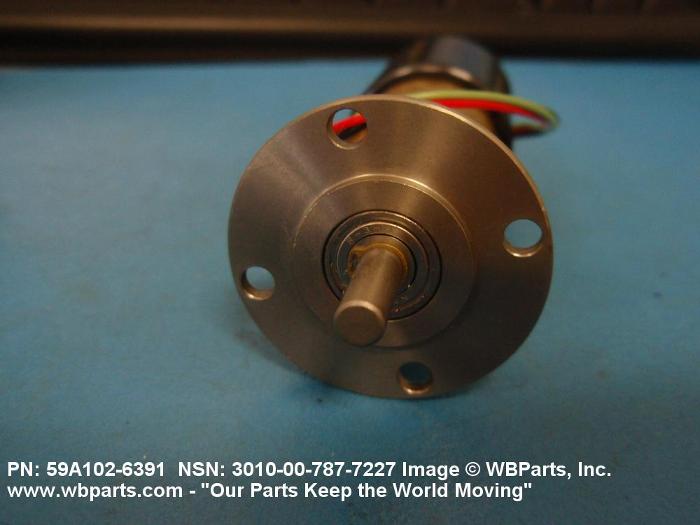

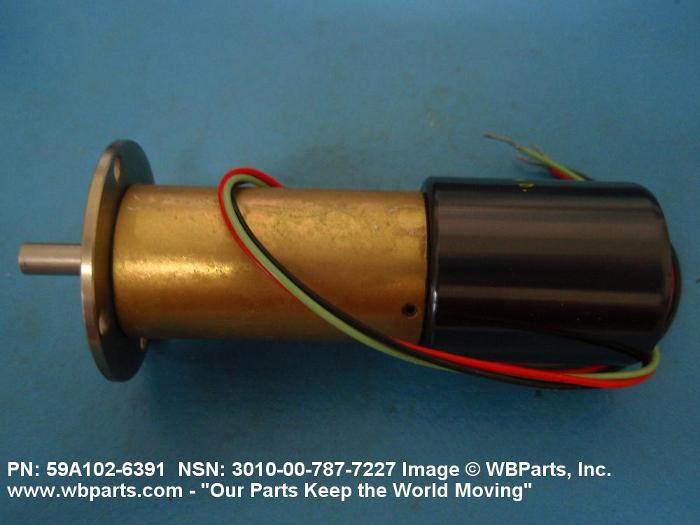

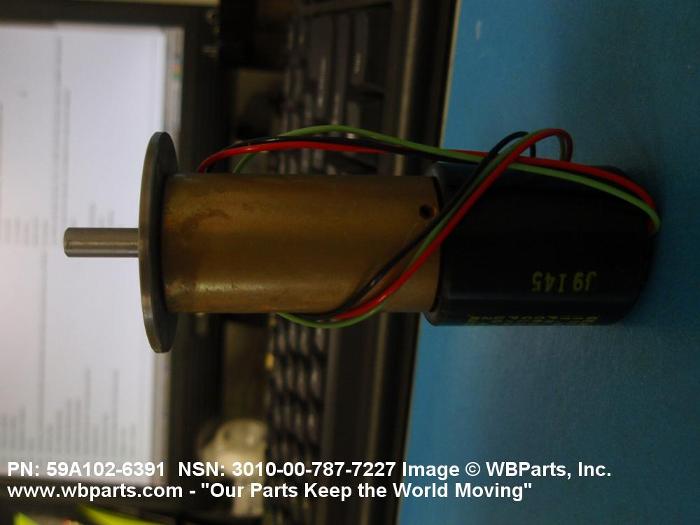

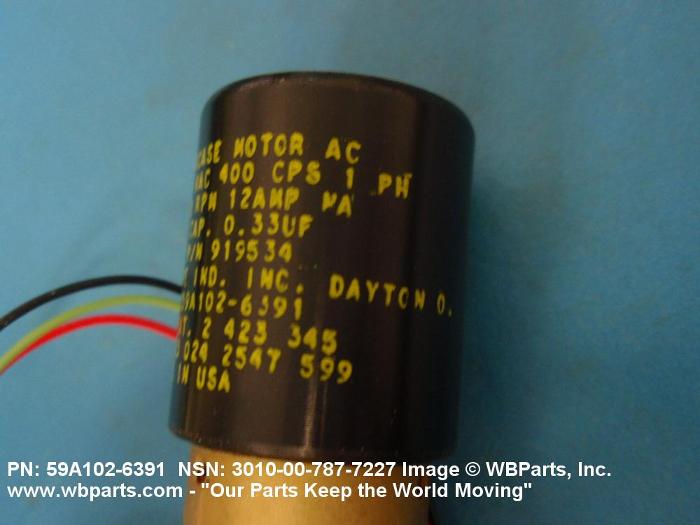

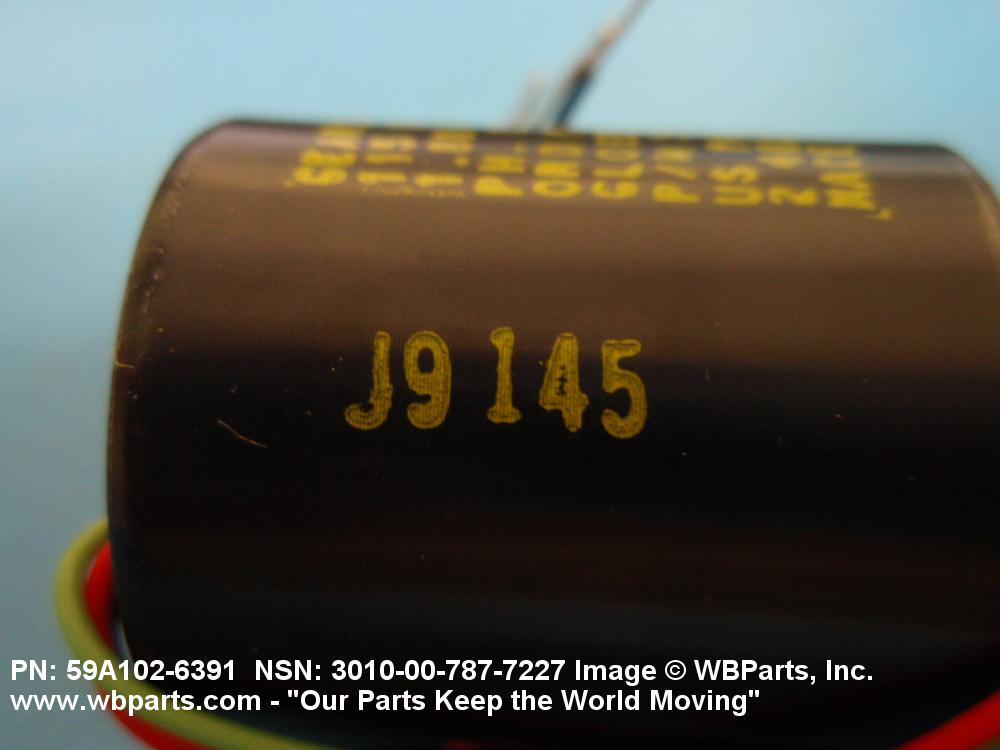

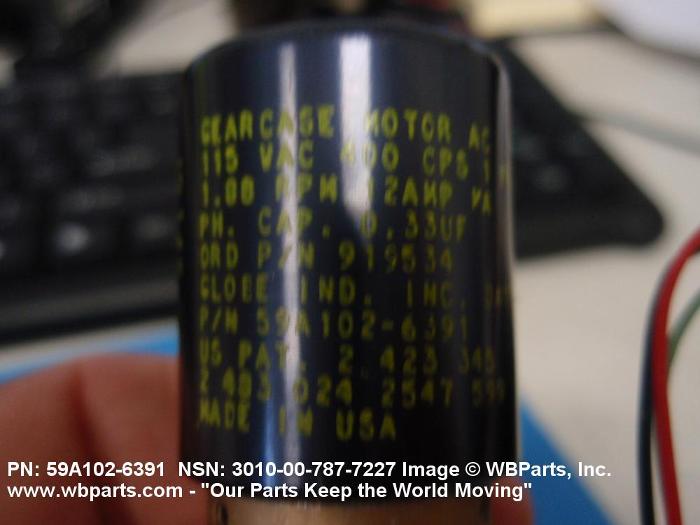

Drawings & Photos | NSN 3010-00-787-7227
Demand History | NSN 3010-00-787-7227
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-00-787-7227 | 2014-02-49 | 1 | DIBBS |
| 3010-00-787-7227 | 2011-03-69 | 6 | United States |
| 3010-00-787-7227 | 2010-07-210 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-787-7227
Related Products | NSN 3010-00-787-7227
Technical Data | NSN 3010-00-787-7227
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 3.619 INCHES |
| OVERALL WIDTH | 1.375 INCHES |
| OVERALL HEIGHT | 1.375 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.475 INCHES SINGLE END |
| MOUNTING METHOD | PAD |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.812 INCHES |
| NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.812 INCHES |
| INCLOSURE FEATURE | EXPLOSION PROOF |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT TYPE | AC INPUT |
| CURRENT RATING IN AMPS | 0.120 SINGLE OUTPUT |
| CURRENT RATING METHOD | LOAD |
| FREQUENCY IN HERTZ | 400.0 INPUT |
| PHASE | SINGLE INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 115.0 LINE TO NEUTRAL SINGLE INPUT |
| TORQUE RATING AND TYPE | 18.75 FOOT-POUNDS RUNNING |
| WINDING TYPE | SYNCHRONOUS |
| DUTY CYCLE | CONTINUOUS |
| TEMP RATING | -40.0 OPERATING DEG CELSIUS AND 71.0 OPERATING DEG CELSIUS AND 65.0 AMBIENT DEG CELSIUS |
| COOLING METHOD | NONVENTILATED |
| MAXIMUM OPERATING ALTITUDE RATING | 10000.0 FEET |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| SHAFT ROTATION DIRECTION | CLOCKWISE SINGLE END |
| GEARED HEAD OUTPUT SHAFT SPEED RATING | 1.880 SINGLE REVOLUTIONS PER MINUTE SINGLE END |
| GEARED HEAD OUTPUT SHAFT ALIGNMENT POSITION | INLINE W/ARMATURE SINGLE END |
| ANGLE OF SHAFT TO MOUNTING BASE | 90.0 DEGREES SINGLE END |
| SHAFT END CHARACTERISTIC | A1 SINGLE STYLE SINGLE END |
| SHAFT DIAMETER | 0.749 INCHES MINIMUM AND 0.750 INCHES MAXIMUM SINGLE END |
| FEATURES PROVIDED | VERTICAL MOUNTING POSITION AND HORIZONTAL MOUNTING POSITION |
Restrictions/Controls & Freight Information | NSN 3010-00-787-7227
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062070 | GEAR MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-787-7227
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
