Product Details | RIGID SHAFT COUPLING
3010-00-779-6321 A device for connecting the ends of two shafts to produce in effect, one piece of rigid shafting so that the rotary motion of one shaft is transmitted to the other shaft. Couplings of the sleeve type must have an over-all length exceeding the outside diameter, or must have an internal spline.
Part Alternates: CS30100003, CS3010-0003, W212C185X1, W212C185X7, W246249, 3010-00-779-6321, 00-779-6321, 3010007796321, 007796321
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-779-6321 | 13742 ( COUPLING, SHAFT, RIGID ) |
Drawings & Photos | NSN 3010-00-779-6321
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-00-779-6321
Technical Data | NSN 3010-00-779-6321
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL COMP 1042 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI 1042 ASSN STD SINGLE MATERIAL RESPONSE |

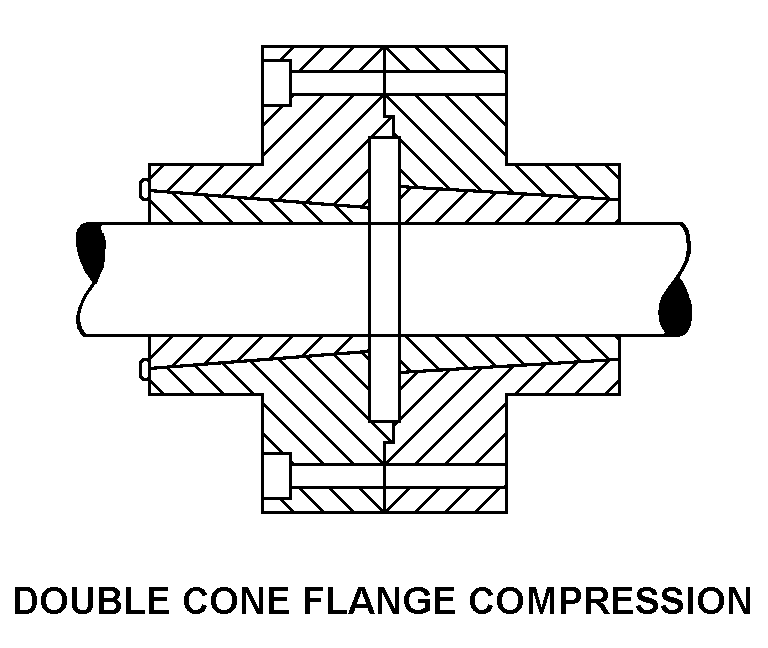

| STYLE DESIGNATOR | A4 DOUBLE CONE FLANGE COMPRESSION |
| OVERALL DIAMETER | 6.249 INCHES MINIMUM AND 6.250 INCHES MAXIMUM |
| OVERALL LENGTH | 7.930 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT FIRST END |
| BORE DIAMETER | 1.6250 INCHES MINIMUM AND 1.6260 INCHES MAXIMUM FIRST END 1.8730 INCHES MINIMUM AND 1.8740 INCHES MAXIMUM SECOND END |
| BORE LENGTH | 2.9620 INCHES MINIMUM AND 2.9640 INCHES MAXIMUM FIRST END 2.6200 INCHES MINIMUM AND 2.6220 INCHES MAXIMUM SECOND END |
| FEATURES PROVIDED | KEYWAY AND BORE COUNTERBORE |
| SPECIAL FEATURES | COUNTERBORE DIAMETER: BOTH ENDS, 2.560 IN. NOMINAL; COUNTERBORE DEPTH: FIRST END, 1.406 MINIMUM AND 1.408 IN. MAXIMUM; SECOND END, 0.938 IN. MINIMUM AND 0.940 IN. MAXIMUM; DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY: FIRST END, 0.908 IN. MINIMUM AND 0.914 IN. MAXIMUM; SECOND END, 1.064 IN. MINIMUM AND 1.069 IN. MAXIMUM; FLANGE WIDTH: 1.860 IN. NOMINAL; HUB DIAMETER: 3.250 IN. NOMINAL; 1 KEYING FACILITY PROVIDED BOTH ENDS; KEYING FACILITY WIDTH: FIRST END, 0.375 IN. MINIMUM AND 0.380 IN. MAXIMUM; SECOND END, 0.500 IN. MINIMUM AND 0.510 IN. MAXIMUM |
