Product Details | UNIVERSAL JOINT

3010-00-740-1181 A flexible connection designed for nonvehicular applications which permits rotary motion to be transmitted between two shafts located at an angle to each other. The angle between the shafts may be continually varied within certain limits; the connecting ends must have either a flange, hub, or splined stub shaft; the plain portion of a splined stub shaft must not exceed the length of the splines. Excludes drive or propeller shafts with joint(s) at one or both ends. See UNIVERSAL JOINT,GEARED.

Part Alternates: D12BM0P, MILU20625, D12B, 3010-00-740-1181, 00-740-1181, 3010007401181, 007401181

Mechanical Power Transmission Equipment | Torque Converters and Speed Changers

Supply Group (FSG) NSN Assign. NIIN
30 01 JAN 1963 00-740-1181

Drawings & Photos | NSN 3010-00-740-1181


Demand History | NSN 3010-00-740-1181

Part Number Request Date QTY Origin
3010-00-740-1181 2024-11-312 4 DIBBS
3010-00-740-1181 2024-10-294 2 DIBBS
3010-00-740-1181 2015-08-216 8 DIBBS
3010-00-740-1181 2015-03-74 8 DIBBS
3010-00-740-1181 2014-11-321 8 DIBBS
3010-00-740-1181 2014-11-309 8 DIBBS
MILU20625 2007-10-288 30 Taiwan

Cross Reference | NSN 3010-00-740-1181

Part Number Cage Code Manufacturer
D12B 75665 LOVEJOY INC
D12BM0P 75665 LOVEJOY INC
MILU20625 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3010-00-740-1181

Technical Data | NSN 3010-00-740-1181

Characteristic Specifications

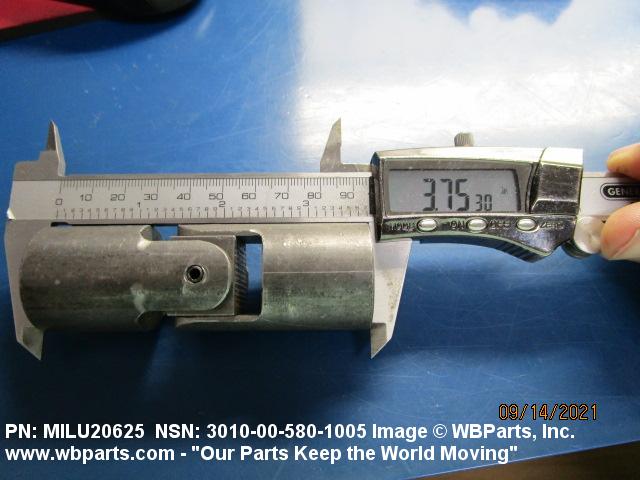

OVERALL LENGTH 5.438 INCHES NOMINAL
SPECIAL FEATURES WIDTH: 0.125 IN. NOMINAL; CONNECTION END TYPE: HUB
NONDEFINITIVE SPEC/STD DATA A CLASS
REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS AS DIFFERENTIATED BY OUTSIDE SHAPE, OUTER PERIPHERY MACHINED SURFACE FINISH, SPLIT HUB FEATURE, LENGTH FROM UNIVERSAL JOINT SPIDER CENTERLINE TO HUB END, HUB END THREAD PROVISION, HUB BORE, BORE STYLE, MAJOR DIAMETER, WIDTH, KEYING FACILITY QUANTITY, DISTANCE FROM CENTERLINE TO KEYING FACILITY, HUB SECURING HOLE, OVERALL LENGTH
(NON-CORE DATA) MAJOR DIAMETER 1.000 INCHES NOMINAL
(NON-CORE DATA) OUTSIDE DIAMETER 2.000 INCHES NOMINAL
(NON-CORE DATA) BEARING TYPE PLAIN
(NON-CORE DATA) LENGTH FROM UNIVERSAL JOINT SPIDER CENTERLINE TO HUB END 2.719 INCHES NOMINAL
(NON-CORE DATA) KEYING FACILITY QUANTITY 1
(NON-CORE DATA) HUB BORE INCLUDED
(NON-CORE DATA) OUTSIDE SHAPE ROUND
(NON-CORE DATA) DISTANCE FROM CENTERLINE TO KEYING FACILITY 0.625 INCHES NOMINAL
(NON-CORE DATA) FSC APPLICATION DATA OVERHEAD HOIST
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MILU20625
MANUFACTURERS CODE 75665
DESIGN CONTROL REFERENCE D12B
