Product Details | GEARCASE-MOTOR

3010-00-567-5999 An item whose prime motion is produced by an electric motor driving through a geared mechanism which establishes the speed, direction and type of motion produced. The gearing may be integrally housed with the motor or coupled to a separately housed motor. For units with gearing mechanisms having a variable input/output ratio, manually or automatically selected, see MOTOR-TRANSMISSION.

Part Alternates: B5870, B58703, B5870-3, B5870A, 9893501G1, 3010-00-567-5999, 00-567-5999, 3010005675999, 005675999

Mechanical Power Transmission Equipment | Torque Converters and Speed Changers

Supply Group (FSG) NSN Assign. NIIN
30 01 JAN 1963 00-567-5999

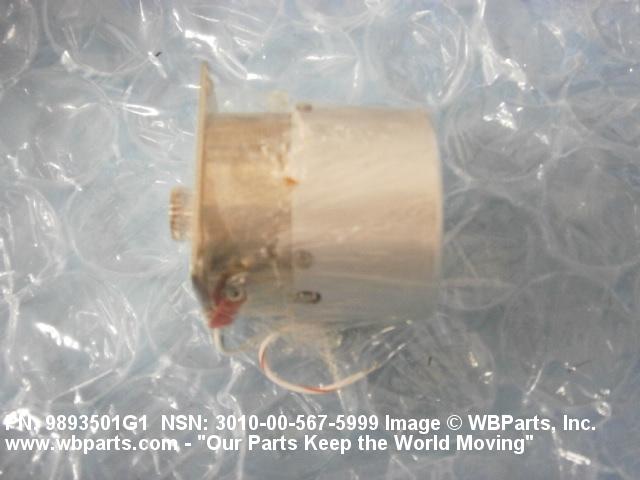

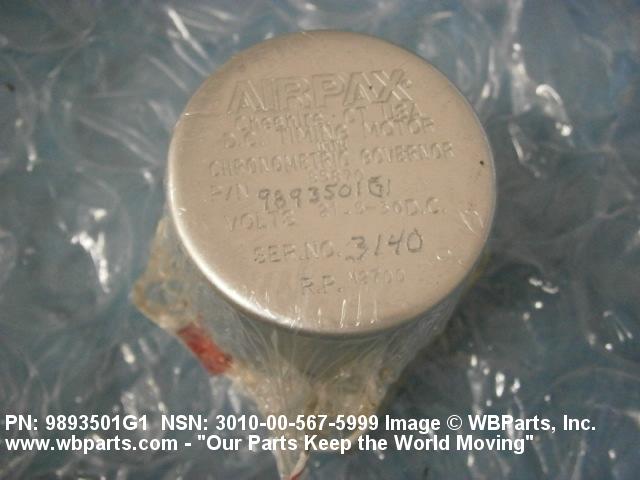

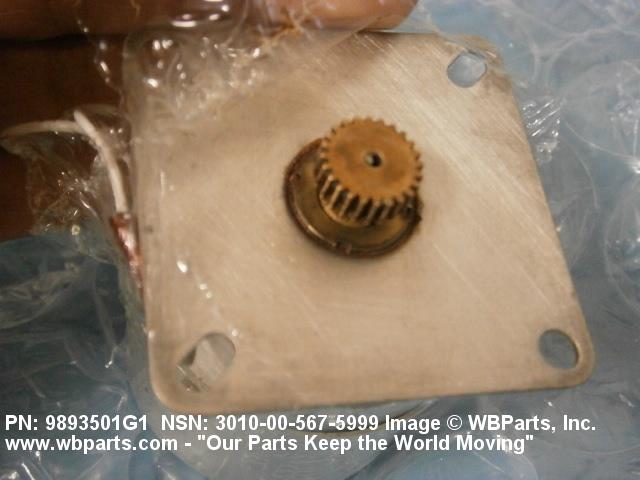

Drawings & Photos | NSN 3010-00-567-5999


Demand History | NSN 3010-00-567-5999

Part Number Request Date QTY Origin
3010-00-567-5999 2021-10-275 1 United States
3010-00-567-5999 2020-12-353 3 us
3010-00-567-5999 2020-09-261 5 US
9893501G1 2020-09-246 5 ID
3010-00-567-5999 2020-08-219 5 United States
3010-00-567-5999 2019-11-330 12 ID
9893501G1 2019-06-165 1 us
9893501G1 2015-08-215 2 US
3010-00-567-5999 2014-12-345 20 United States
B5870 2014-08-231 20 United States
B5870 2013-09-268 10
B5870 2012-03-65 20
9893501G1 2012-01-18 3 India
B5870 2011-12-346 20
B5870 2011-11-332 20
9893501G1 2010-10-287 38
B5870 2010-10-287 38
3010-00-567-5999 2010-05-138 1 US
3010-00-567-5999 2010-05-126 1 US
3010-00-567-5999 2010-01-11 10 US
3010-00-567-5999 2009-11-314 2 United Kingdom
B58703 2008-10-302 1 United States
9893501G1 2008-10-277 2 us
9893501G1 2008-07-197 5 US
3010-00-567-5999 2007-09-246 10 Turkey

Cross Reference | NSN 3010-00-567-5999

Part Number Cage Code Manufacturer
9893501G1 97424 AMETEK, INC. DIV AEROSPACE & DEFENSE
B5870 057L8 ELECTRIC INDICATOR CO INC ELINCO WATERBURY DIV
B5870 73693 SCHULZE MFG. INC.
B5870 77569 NORTH AMERICAN PHILIPS CORP
B5870 82227 VDO CONTROL SYSTEMS INC
B5870-3 82227 VDO CONTROL SYSTEMS INC
B5870A 82227 VDO CONTROL SYSTEMS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3010-00-567-5999

Technical Data | NSN 3010-00-567-5999

Characteristic Specifications
OVERALL LENGTH 2.219 INCHES
OVERALL WIDTH 1.938 INCHES
OVERALL HEIGHT 1.938 INCHES
LENGTH OF SHAFT FROM HOUSING 0.308 INCHES SINGLE END
MOUNTING METHOD FLANGE
MOUNTING FACILITY TYPE AND QUANTITY 2 UNTHREADED HOLE
MOUNTING FACILITY CIRCLE DIAMETER 2.250 INCHES
INCLOSURE FEATURE TOTALLY INCLOSED
INCLOSURE SPECIFICATION COMMERCIAL
CURRENT TYPE DC INPUT
CONNECTION TYPE AND VOLTAGE RATING IN VOLTS 30.0 LINE TO NEUTRAL SINGLE INPUT
TORQUE RATING AND TYPE 5.0 INCH-OUNCES RUNNING
WINDING TYPE PERMANENT MAGNET
DUTY CYCLE CONTINUOUS
TEMP RATING -18.0 AMBIENT DEG CELSIUS AND 73.0 AMBIENT DEG CELSIUS
COOLING METHOD NONVENTILATED
MAXIMUM OPERATING ALTITUDE RATING 50000.0 FEET
TERMINAL TYPE AND QUANTITY 2 WIRE LEAD
SPEED CONTROL METHOD AND DEVICE TYPE AUTOMATIC MECHANICAL
SHAFT ROTATION DIRECTION CLOCKWISE SINGLE END
GEARED HEAD OUTPUT SHAFT SPEED RATING 0.125 SINGLE REVOLUTIONS PER MINUTE SINGLE END
GEARED HEAD OUTPUT SHAFT ALIGNMENT POSITION INLINE W/ARMATURE SINGLE END
SHAFT END CHARACTERISTIC A1 SINGLE STYLE SINGLE END
SHAFT DIAMETER 0.1250 INCHES NOMINAL SINGLE END
FEATURES PROVIDED VERTICAL MOUNTING POSITION AND HORIZONTAL MOUNTING POSITION

Restrictions/Controls & Freight Information | NSN 3010-00-567-5999

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 062120 GENERATORS/MOTORS/PARTS NOI SUB1
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 593 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3010-00-567-5999

Category Code Description
Cognizance Codes9CNavy-owned stocks of defense construction material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9CDefense Supply Center Columbus
Columbus, OH 43215
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Z
EA : Each
