NSN 3010-00-553-1884 BT1708G2, 4810502, 481050-2
Product Details | GEARCASE-MOTOR
3010-00-553-1884 An item whose prime motion is produced by an electric motor driving through a geared mechanism which establishes the speed, direction and type of motion produced. The gearing may be integrally housed with the motor or coupled to a separately housed motor. For units with gearing mechanisms having a variable input/output ratio, manually or automatically selected, see MOTOR-TRANSMISSION.
Part Alternates: BT1708G2, 4810502, 481050-2, 3010-00-553-1884, 00-553-1884, 3010005531884, 005531884
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-553-1884 | 01102 ( GEARCASE-MOTOR ) |

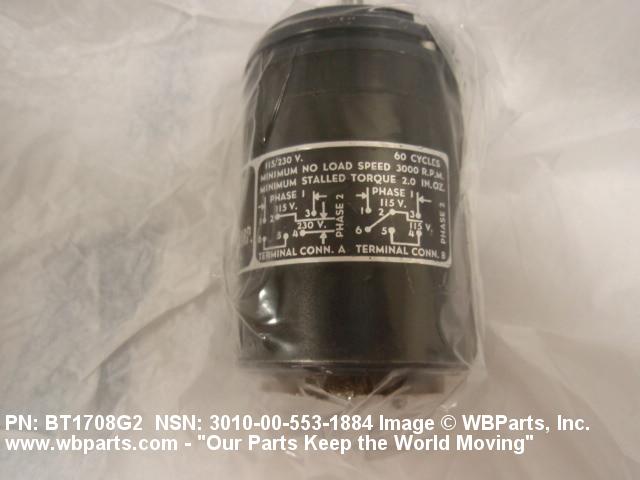

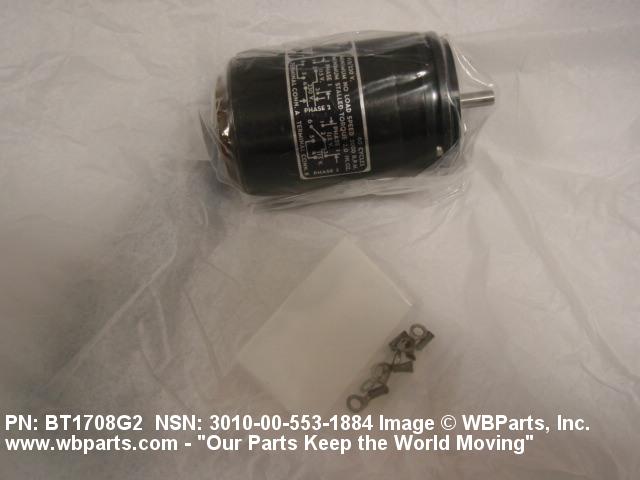

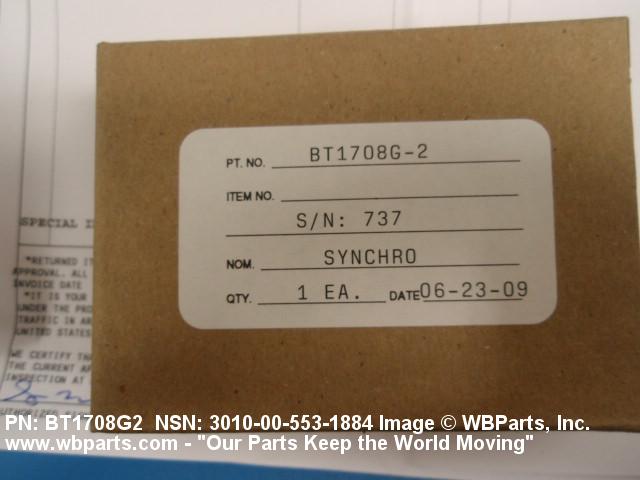

Drawings & Photos | NSN 3010-00-553-1884
Demand History | NSN 3010-00-553-1884
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-00-553-1884 | 2019-10-297 | 2 | US |
| BT1708G2 | 2019-04-94 | 1 | DIBBS |
| 3010-00-553-1884 | 2018-08-219 | 1 | DIBBS |
| 3010-00-553-1884 | 2018-08-217 | 1 | DIBBS |
| BT1708G2 | 2014-09-246 | 4 | United States |
| 3010-00-553-1884 | 2014-07-206 | 1 | US |
| 3010-00-553-1884 | 2012-06-165 | 1 | DIBBS |
| 3010-00-553-1884 | 2011-10-283 | 1 | United States |
| 3010-00-553-1884 | 2011-10-274 | 1 | DIBBS |
| 3010-00-553-1884 | 2009-11-311 | 1 | DIBBS |
| 3010-00-553-1884 | 2009-06-173 | 1 | United States |
| 3010-00-553-1884 | 2009-06-153 | 1 | DIBBS |
| BT1708G2 | 2009-03-89 | 5 | US |
| 3010-00-553-1884 | 2008-07-188 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-553-1884
Related Products | NSN 3010-00-553-1884
Technical Data | NSN 3010-00-553-1884
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 3.323 INCHES |
| OVERALL WIDTH | 1.750 INCHES |
| OVERALL HEIGHT | 1.750 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.540 INCHES SINGLE END |
| MOUNTING METHOD | FACE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 1.250 INCHES |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT TYPE | AC INPUT |
| FREQUENCY IN HERTZ | 60.0 INPUT |
| PHASE | SINGLE INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 115.0 LINE TO NEUTRAL SINGLE INPUT |
| TORQUE RATING AND TYPE | 2.0 INCH-OUNCES STALLED |
| WINDING TYPE | SYNCHRONOUS |
| DUTY CYCLE | CONTINUOUS |
| COOLING METHOD | NATURAL CONVECTION VENTILATED |
| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| SPEED CONTROL METHOD AND DEVICE TYPE | AUTOMATIC MECHANICAL |
| SHAFT ROTATION DIRECTION | CLOCKWISE OR COUNTERCLOCKWISE SINGLE END |
| GEARED HEAD OUTPUT SHAFT SPEED RATING | 30.000 SINGLE REVOLUTIONS PER MINUTE SINGLE END |
| GEARED HEAD OUTPUT SHAFT ALIGNMENT POSITION | INLINE W/ARMATURE SINGLE END |
| SHAFT END CHARACTERISTIC | A23 SINGLE STYLE SINGLE END |
| SHAFT DIAMETER | 0.1875 INCHES NOMINAL SINGLE END |
| TEETH QUANTITY | 12 SINGLE END |
| FEATURES PROVIDED | VERTICAL MOUNTING POSITION AND HORIZONTAL MOUNTING POSITION |
Restrictions/Controls & Freight Information | NSN 3010-00-553-1884
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062070 | GEAR MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-553-1884
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
