NSN 3010-00-545-1261 524C237H01, 616F358PC27, 00-545-1261
Product Details | FLEXIBLE SHAFT COUPLING
3010-00-545-1261 A device for connecting the ends of two shafts so that rotary motion of one shaft is transmitted to the other shaft. It is constructed to allow for slight misalignment of shafts both linear and angular.
Part Alternates: 524C237H01, 616F358PC27, 3010-00-545-1261, 00-545-1261, 3010005451261, 005451261
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 09 OCT 1974 | 00-545-1261 | 04459 ( COUPLING, SHAFT, FLEXIBLE ) |

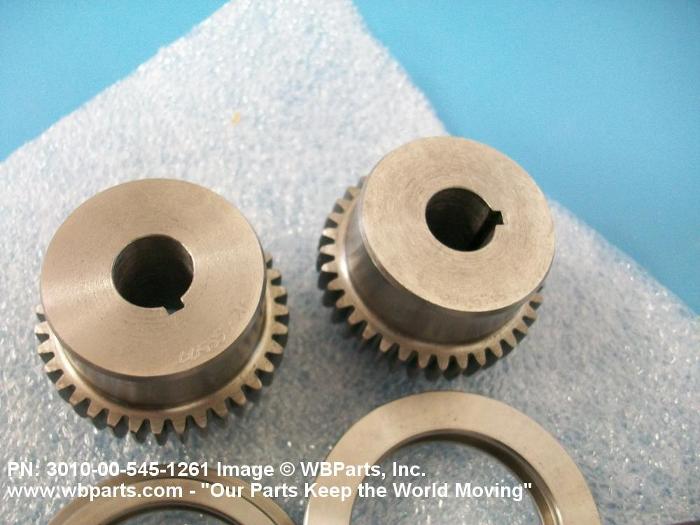

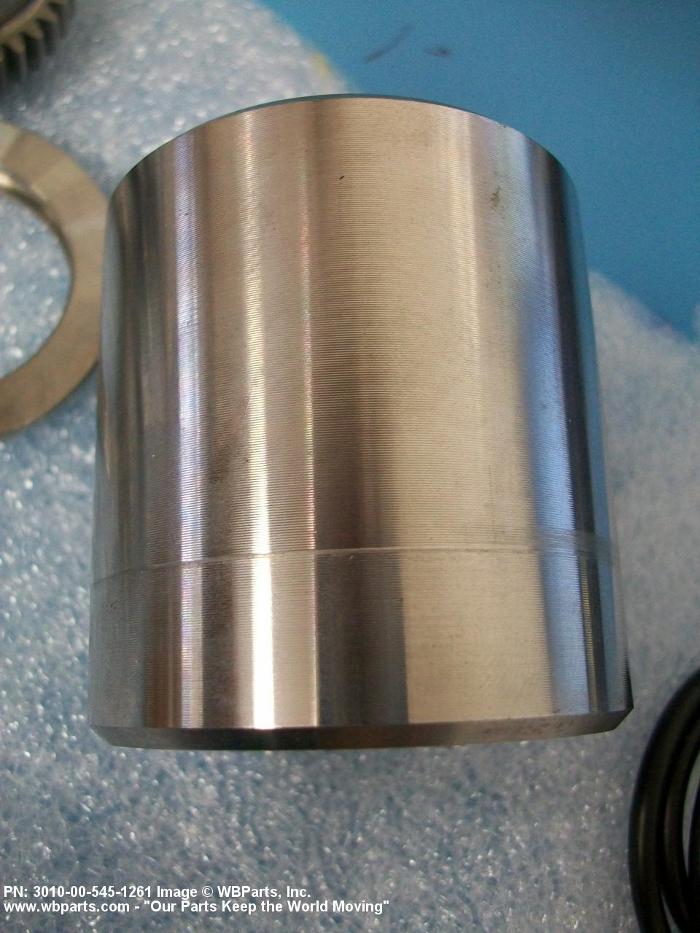

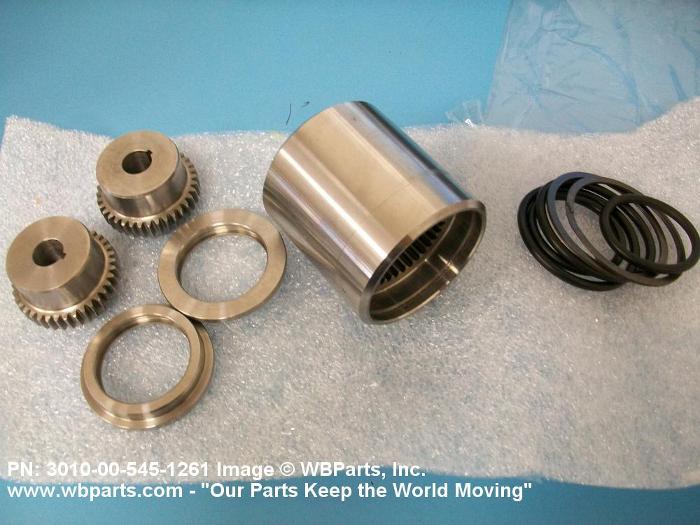

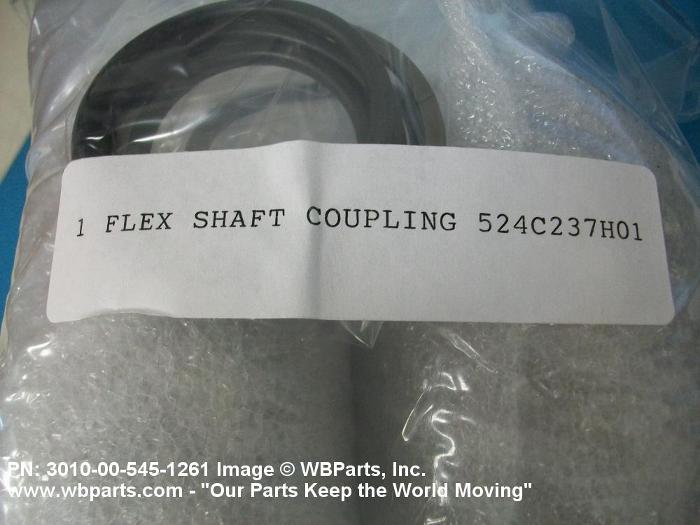

Drawings & Photos | NSN 3010-00-545-1261
Demand History | NSN 3010-00-545-1261
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-00-545-1261 | 2013-05-123 | 1 | DIBBS |
| 3010-00-545-1261 | 2013-03-64 | 10 | DIBBS |
| 524C237H01 | 2011-09-259 | 1 | United States |
| 3010-00-545-1261 | 2010-12-350 | 3 | DIBBS |
| 3010-00-545-1261 | 2010-11-309 | 2 | DIBBS |
| 3010-00-545-1261 | 2010-08-235 | 1 | DIBBS |
| 3010-00-545-1261 | 2010-06-171 | 1 | DIBBS |
| 3010-00-545-1261 | 2008-10-288 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-545-1261
Related Products | NSN 3010-00-545-1261
Technical Data | NSN 3010-00-545-1261
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | INTERNAL GEAR |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.125 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT BOTH ENDS |
| BORE DIAMETER | 0.5000 INCHES NOMINAL FIRST END 0.4375 INCHES NOMINAL SECOND END |
| BORE LENGTH | 1.0625 INCHES NOMINAL BOTH ENDS |
| KEYING FACILITY QUANTITY | 1 BOTH ENDS |
| KEYING FACILITY SPACING IN DEG | 0.0 BOTH ENDS |
| KEYING FACILITY TYPE | KEYWAY BOTH ENDS |
| KEYWAY WIDTH | 0.125 INCHES NOMINAL FIRST END 0.094 INCHES NOMINAL SECOND END |
| KEYWAY DEPTH | 0.0625 INCHES NOMINAL FIRST END 0.0469 INCHES NOMINAL SECOND END |

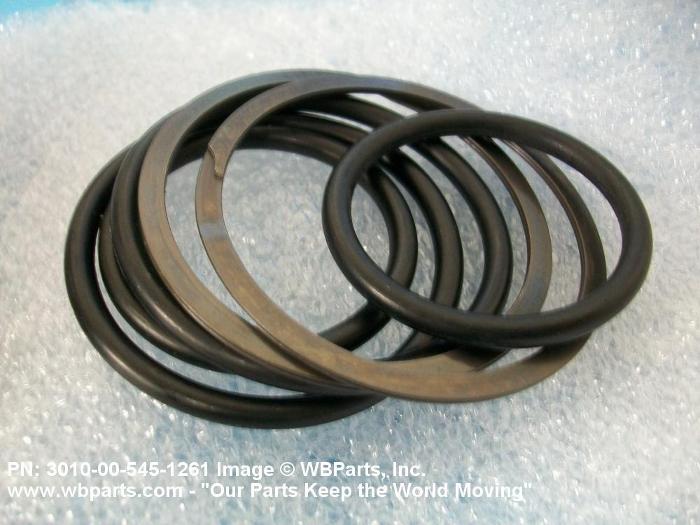

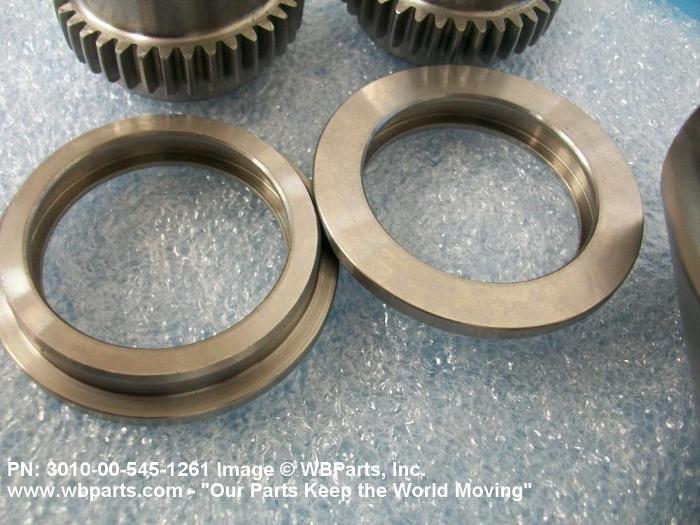

| FURNISHED ITEMS AND QUANTITY | RETAINER 4,O-RING 4 |

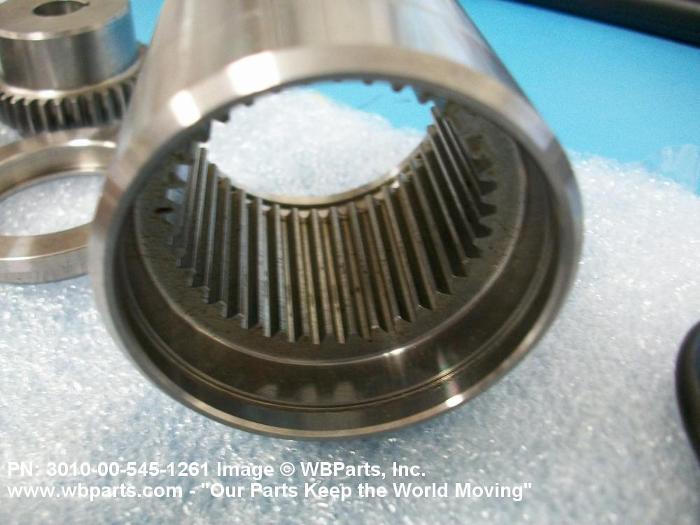

| FEATURES PROVIDED | KEYWAY AND SPLINE GEAR TEETH |
Restrictions/Controls & Freight Information | NSN 3010-00-545-1261
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-545-1261
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
