Product Details | UNIVERSAL JOINT YOKE

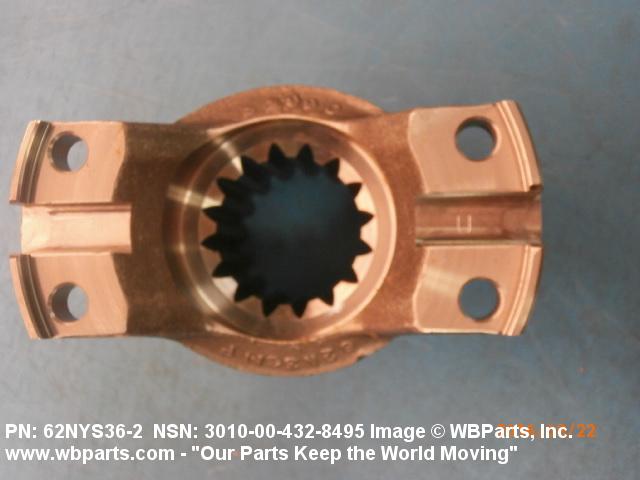

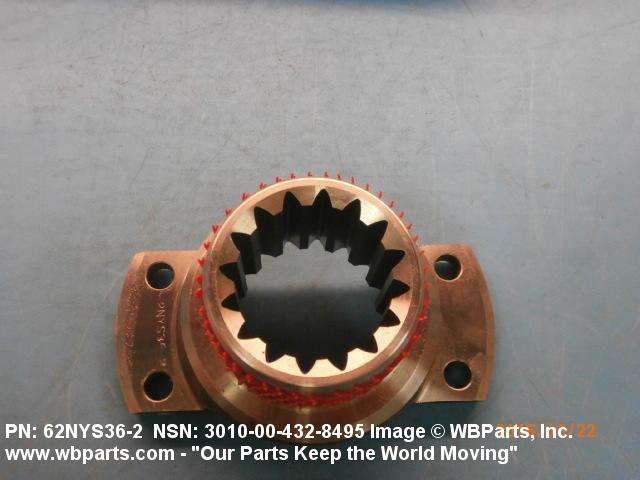

3010-00-432-8495 A component of a universal joint designed for nonvehicular applications. Consists of a fork-like device to accommodate the spider and bearings of a universal joint by various attaching methods. The opposite end must have either a flange, hub, or splined stub shaft which is designed to be attached to a driving or driven member. For items with a shaft, the length of the plain portion msut not exceed the length of the splines.
Part Alternates: 23749J, 2584229, 278411, 2-78411 , 62NYS362, 62NYS36-2, 3010-00-432-8495, 00-432-8495, 3010004328495, 004328495
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 12 MAY 1971 | 00-432-8495 | 52119 ( YOKE, UNIVERSAL JOINT, NONVEHICULAR ) |

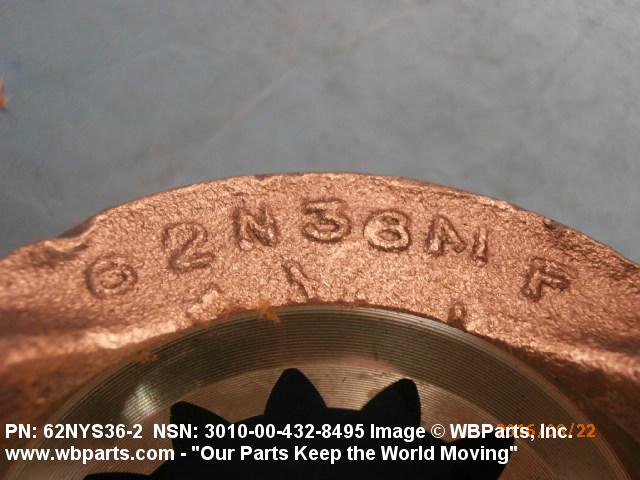

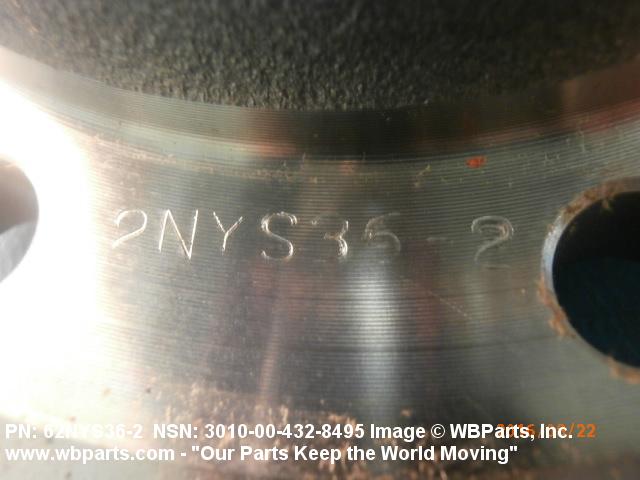

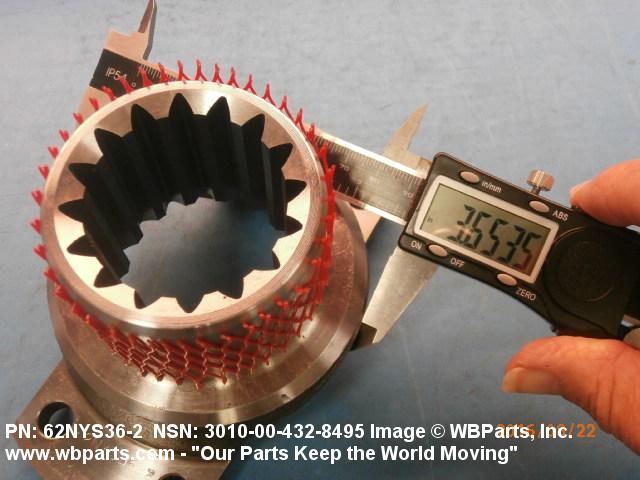

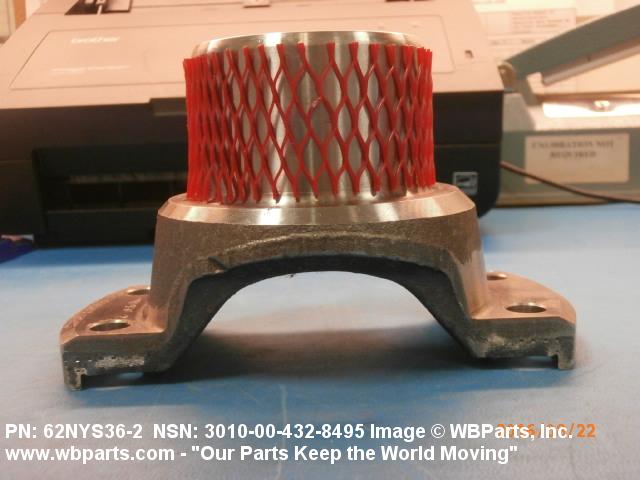

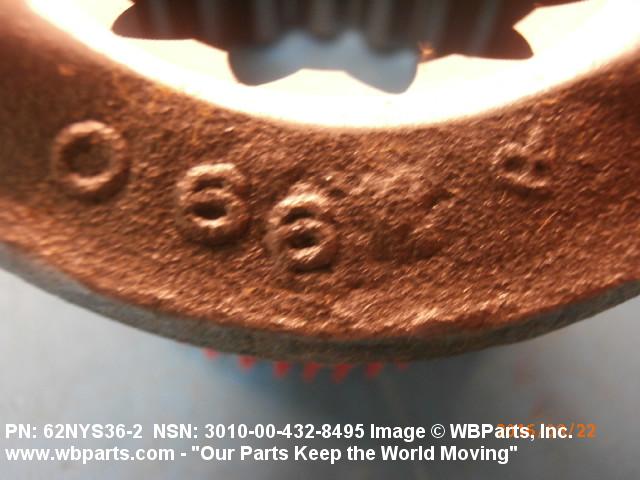

Drawings & Photos | NSN 3010-00-432-8495
Demand History | NSN 3010-00-432-8495
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2584229 | 2024-07-205 | 2 | United States |
| 2-78411 | 2023-03-75 | 4 | DIBBS |
| 62NYS36-2 | 2023-03-75 | 4 | DIBBS |
| 2-78411 | 2023-02-33 | 28 | DIBBS |
| 62NYS36-2 | 2023-02-33 | 28 | DIBBS |
| 2-78411 | 2022-03-68 | 71 | DIBBS |
| 62NYS36-2 | 2022-03-68 | 71 | DIBBS |
| 2-78411 | 2022-02-53 | 71 | DIBBS |
| 62NYS36-2 | 2022-02-53 | 71 | DIBBS |
| 2-78411 | 2021-03-66 | 65 | DIBBS |
| 62NYS36-2 | 2021-03-66 | 65 | DIBBS |
| 2-78411 | 2020-06-163 | 20 | DIBBS |
| 62NYS36-2 | 2020-06-163 | 20 | DIBBS |
| 2-78411 | 2020-05-152 | 19 | DIBBS |
| 62NYS36-2 | 2020-05-152 | 19 | DIBBS |
| 2-78411 | 2020-04-100 | 24 | DIBBS |
| 62NYS36-2 | 2020-04-100 | 24 | DIBBS |
| 2-78411 | 2020-01-30 | 48 | DIBBS |
| 62NYS36-2 | 2020-01-30 | 48 | DIBBS |
| 2-78411 | 2019-08-241 | 31 | DIBBS |
| 62NYS36-2 | 2019-08-241 | 31 | DIBBS |
| 2-78411 | 2019-08-213 | 15 | DIBBS |
| 62NYS36-2 | 2019-08-213 | 15 | DIBBS |
| 2-78411 | 2019-05-143 | 15 | DIBBS |
| 62NYS36-2 | 2019-05-143 | 15 | DIBBS |
| 3010-00-432-8495 | 2018-11-319 | 14 | DIBBS |
| 3010-00-432-8495 | 2018-09-249 | 39 | DIBBS |
| 3010-00-432-8495 | 2018-08-228 | 36 | DIBBS |
| 3010-00-432-8495 | 2018-02-58 | 12 | United States |
| 3010-00-432-8495 | 2018-02-46 | 69 | DIBBS |
| 3010-00-432-8495 | 2017-12-362 | 69 | DIBBS |
| 3010-00-432-8495 | 2017-11-310 | 12 | United States |
| 3010-00-432-8495 | 2017-10-276 | 51 | DIBBS |
| 3010-00-432-8495 | 2017-07-204 | 45 | DIBBS |
| 3010-00-432-8495 | 2017-03-89 | 65 | DIBBS |
| 3010-00-432-8495 | 2016-12-355 | 17 | DIBBS |
| 3010-00-432-8495 | 2016-12-340 | 39 | DIBBS |
| 3010-00-432-8495 | 2016-09-251 | 29 | DIBBS |
| 3010-00-432-8495 | 2016-08-234 | 22 | DIBBS |
| 3010-00-432-8495 | 2016-08-223 | 6 | United States |
| 3010-00-432-8495 | 2016-08-220 | 5 | DIBBS |
| 3010-00-432-8495 | 2015-12-340 | 53 | DIBBS |
| 3010-00-432-8495 | 2015-06-158 | 24 | DIBBS |
| 3010-00-432-8495 | 2015-06-152 | 8 | DIBBS |
| 3010-00-432-8495 | 2015-05-141 | 16 | DIBBS |
| 3010-00-432-8495 | 2015-05-137 | 8 | DIBBS |
| 3010-00-432-8495 | 2015-04-118 | 123 | DIBBS |
| 3010-00-432-8495 | 2015-03-90 | 90 | DIBBS |
| 3010-00-432-8495 | 2015-03-70 | 5 | DIBBS |
| 3010-00-432-8495 | 2015-03-64 | 27 | United States |
| 3010-00-432-8495 | 2015-02-47 | 27 | DIBBS |
| 3010-00-432-8495 | 2014-01-28 | 1 | DIBBS-RFPs |
| 3010-00-432-8495 | 2013-11-321 | 108 | DIBBS |
| 3010-00-432-8495 | 2013-04-114 | 54 | DIBBS |
| 3010-00-432-8495 | 2011-09-273 | 44 | DIBBS |
| 3010-00-432-8495 | 2011-08-241 | 12 | DIBBS |
| 3010-00-432-8495 | 2011-08-220 | 119 | DIBBS |
| 3010-00-432-8495 | 2011-04-104 | 2 | DIBBS |
| 3010-00-432-8495 | 2011-04-91 | 6 | DIBBS |
| 3010-00-432-8495 | 2011-02-56 | 20 | DIBBS |
| 3010-00-432-8495 | 2011-02-56 | 48 | DIBBS |
| 3010-00-432-8495 | 2011-02-35 | 23 | DIBBS |
| 3010-00-432-8495 | 2011-01-24 | 9 | DIBBS |
| 3010-00-432-8495 | 2010-07-211 | 8 | DIBBS |
| 3010-00-432-8495 | 2010-06-172 | 21 | DIBBS |
| 3010-00-432-8495 | 2008-12-354 | 20 | DIBBS |
| 3010-00-432-8495 | 2008-11-322 | 3 | DIBBS |
| 3010-00-432-8495 | 2008-02-36 | 32 | DIBBS |
| 3010-00-432-8495 | 2007-12-338 | 16 | DIBBS |
| 3010-00-432-8495 | 2007-09-268 | 12 | DIBBS |
| 3010-00-432-8495 | 2007-03-88 | 6 | DIBBS |
| 3010-00-432-8495 | 2007-03-74 | 9 | DIBBS |
| 3010-00-432-8495 | 2006-06-173 | 12 | DIBBS |
Cross Reference | NSN 3010-00-432-8495
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-432-8495
Related Products | NSN 3010-00-432-8495
Technical Data | NSN 3010-00-432-8495
| Characteristic | Specifications |
|---|---|

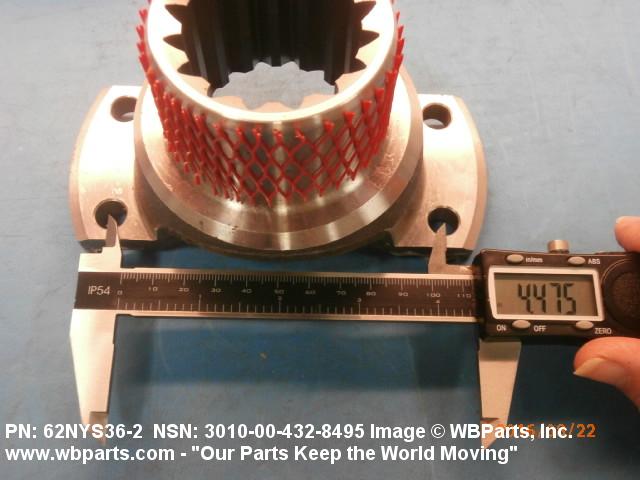

| FORK HEIGHT | 5.829 INCHES MINIMUM AND 5.854 INCHES MAXIMUM |
| SHAFT SPLINE QUANTITY | 16 |
| SPECIAL FEATURES | BSYF 32 MICROINCH |

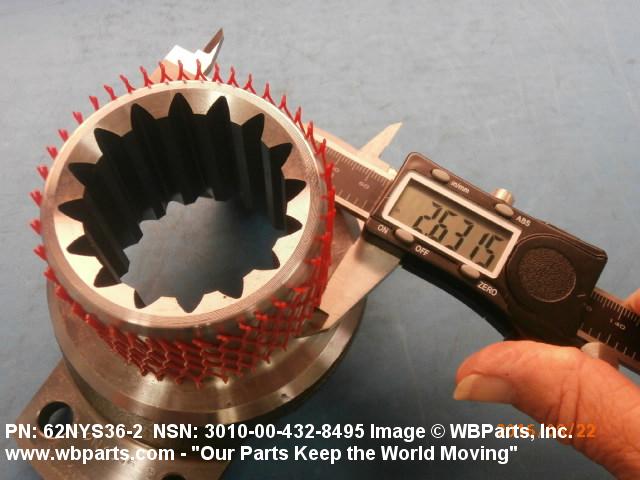

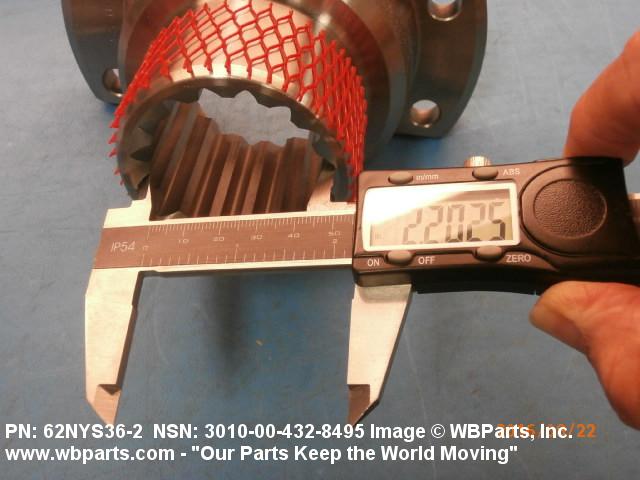

| (NON-CORE DATA) MAJOR DIAMETER | 2.225 INCHES MINIMUM AND 2.243 INCHES MAXIMUM |
| (NON-CORE DATA) OUTSIDE DIAMETER | 2.625 INCHES MINIMUM AND 2.628 INCHES MAXIMUM |

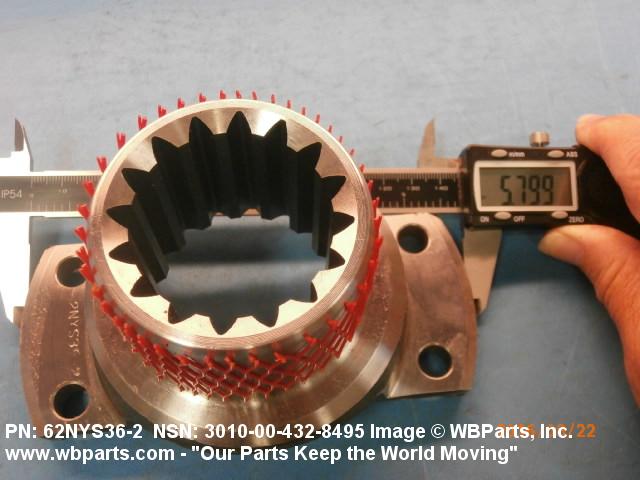

| (NON-CORE DATA) FORK WIDTH | 5.530 INCHES MINIMUM AND 5.532 INCHES MAXIMUM |
