NSN 3010-00-378-5995 2316795, 231679-5, 231679PC5
Product Details | NONVEHICULAR POSITIVE CLUTCH HALF
3010-00-378-5995 That portion of a CLUTCH, POSITIVE which transmits or receives motion or power by engagement with the mating member.
Part Alternates: 2316795, 231679-5, 231679PC5, 3010-00-378-5995, 00-378-5995, 3010003785995, 003785995
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-378-5995 | 52085 ( CLUTCH HALF, POSITIVE, NONVEHICULAR ) |

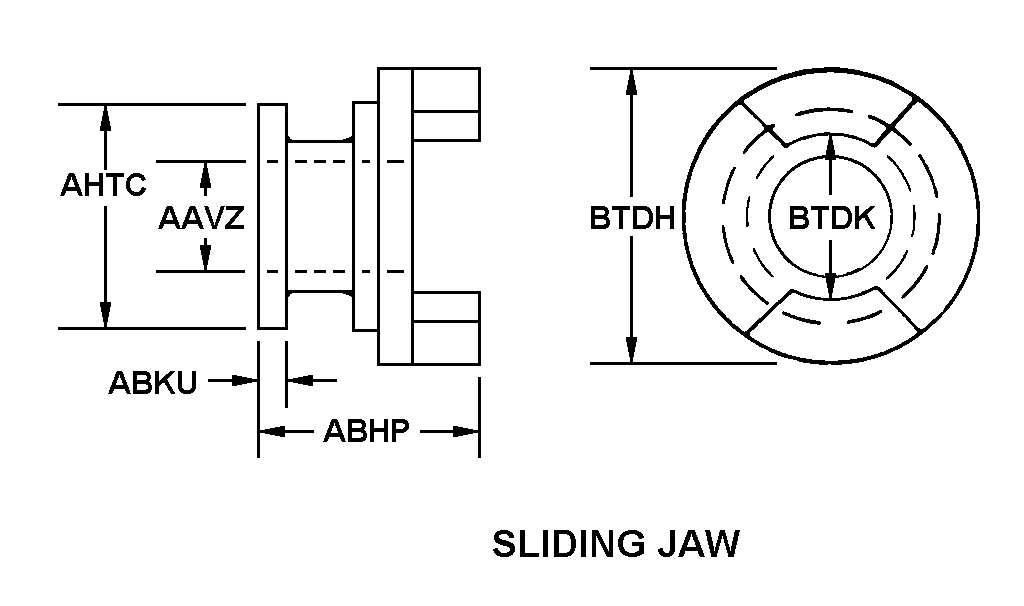

Drawings & Photos | NSN 3010-00-378-5995
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-378-5995
Related Products | NSN 3010-00-378-5995
Technical Data | NSN 3010-00-378-5995
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A2 SLIDING JAW |
| GROOVE DIAMETER | 1.795 INCHES MINIMUM AND 1.805 INCHES MAXIMUM |
| OVERALL LENGTH | 2.230 INCHES MINIMUM AND 2.270 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.225 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 2.195 INCHES MINIMUM AND 2.205 INCHES MAXIMUM |
| JAW CIRCLE OUTSIDE DIAMETER | 2.990 INCHES MINIMUM AND 3.010 INCHES MAXIMUM |
| JAW CIRCLE INSIDE DIAMETER | 1.990 INCHES MINIMUM AND 2.010 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT SPLINE |
| SPLINE QUANTITY | 6 |
| SPLINE MAJOR DIAMETER | 0.999 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3010-00-378-5995
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 132330 | TRANSMISSIONS/CLUTCHES/PARTS,NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-378-5995
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
