NSN 3010-00-374-9429 T9823, 71881R1, 00-374-9429
Product Details | SHIFTER FORK
3010-00-374-9429 An item having two or more prongs which may have transverse hole(s), slot(s), dowel pin(s), pad(s), in or on the end of each prong, to provide a means to accomplish the engagement or disengagement of gear(s), shaft(s), clutch, or the like. The opposite end has facilities for a shaft, lever, or the like. This item is designed for use on all applications other than vehicular. Excludes SHIFTER FORK, VEHICULAR.
Part Alternates: T9823, 71881R1, 3010-00-374-9429, 00-374-9429, 3010003749429, 003749429
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-374-9429 | 52052 ( SHIFTER FORK, NONVEHICULAR ) |
Drawings & Photos | NSN 3010-00-374-9429
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-00-374-9429
Technical Data | NSN 3010-00-374-9429
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

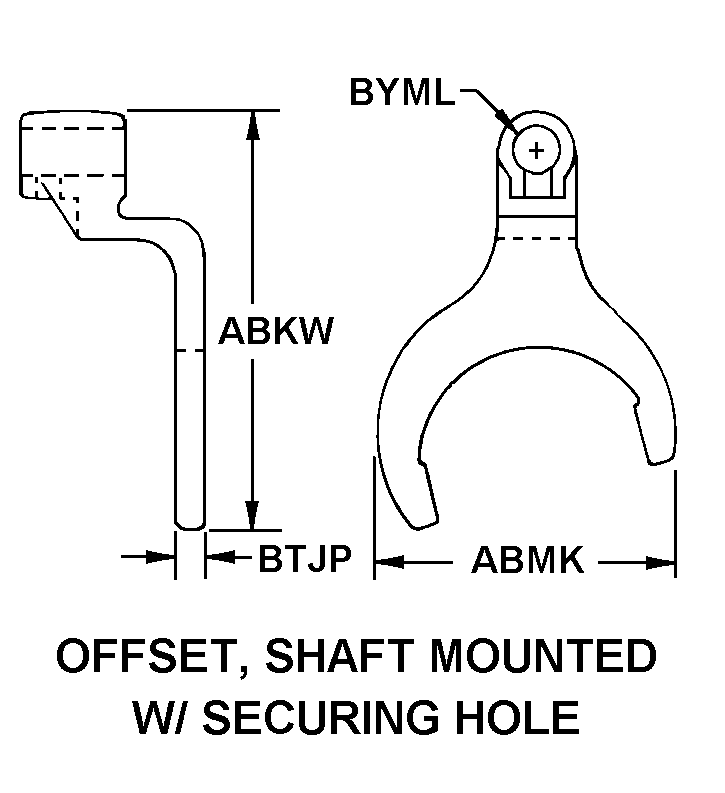

| STYLE DESIGNATOR | A6 OFFSET, SHAFT MOUNTED W/SECURING HOLE |
| OVERALL HEIGHT | 4.750 INCHES NOMINAL |
| OVERALL WIDTH | 5.000 INCHES NOMINAL |
| FORK END WIDTH | 0.410 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.625 INCHES NOMINAL |
| FEATURES PROVIDED | CASEHARDENED TIP |
| SPECIAL FEATURES | OFFSET DISTANCE: 1.810 IN. NOMINAL; BORE LENGTH: 1.830 IN. NOMINAL; FORK WIDTH: 4.000 IN. NOMINAL; SECURING HOLE SIZE: 0.326 IN. NOMINAL; DISTANCE FROM MOUNTING FACILITY CENTERLINE TO ARCH CENTERLINE: 3.750 IN. NOMINAL; ARCH INSIDE RADIUS: 2.500 IN. NOMINAL |
Restrictions/Controls & Freight Information | NSN 3010-00-374-9429
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3010-00-374-9429
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
