NSN 3010-00-373-4102 E1525M1, 00-373-4102, 003734102
Product Details | CLUTCH DISK
3010-00-373-4102 A solid circular disk of wire-woven lining material or ceramic and metal substance and the like, molded to one or both sides and fastened directly or indirectly to the center spline or hub, which receives and transmits motion or power by engagement with the pressure plate assembly and the flywheel or the like. Includes dry or wet type disk, and may include damper springs. This item is designed to be used on marine, aircraft, and plant equipment in conjunction with a CLUTCH ASSEMBLY, FRICTION.
Part Alternates: E1525M1, 3010-00-373-4102, 00-373-4102, 3010003734102, 003734102
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1960 | 00-373-4102 | 52059 ( DISK, CLUTCH, NONVEHICULAR ) |

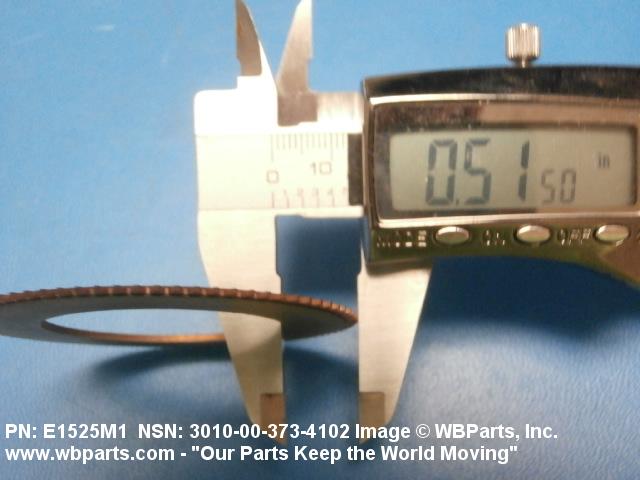

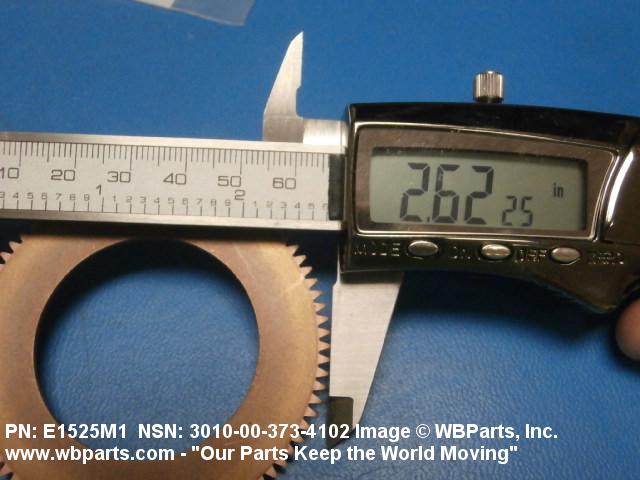

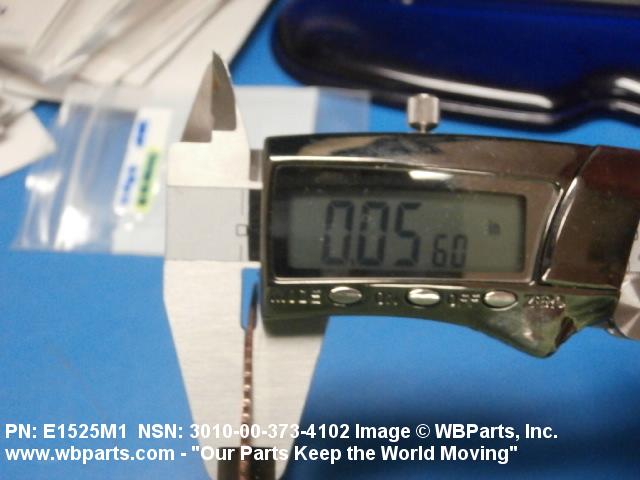

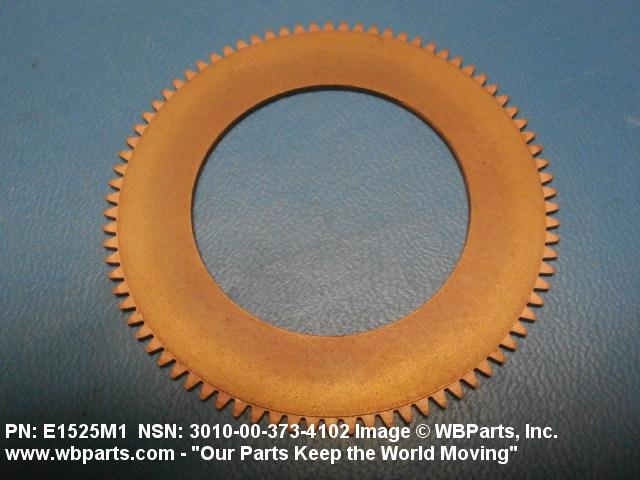

Drawings & Photos | NSN 3010-00-373-4102
Demand History | NSN 3010-00-373-4102
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-00-373-4102 | 2022-03-67 | 48 | United States |
| E1525M1 | 2021-11-320 | 59 | DIBBS |
| E1525M1 | 2021-10-291 | 324 | DIBBS |
| E1525M1 | 2021-10-279 | 324 | DIBBS |
| E1525M1 | 2021-07-203 | 229 | DIBBS |
| E1525M1 | 2021-07-192 | 229 | DIBBS |
| E1525M1 | 2021-05-133 | 25 | DIBBS |
| E1525M1 | 2020-12-349 | 273 | DIBBS |
| E1525M1 | 2020-12-338 | 273 | DIBBS |
| E1525M1 | 2020-10-293 | 183 | DIBBS |
| 3010-00-373-4102 | 2020-10-288 | 1 | DIBBS-RFPs |
| E1525M1 | 2020-10-287 | 65 | DIBBS |
| E1525M1 | 2020-10-279 | 21 | DIBBS |
| E1525M1 | 2020-09-268 | 65 | DIBBS |
| E1525M1 | 2020-09-259 | 25 | DIBBS |
| E1525M1 | 2020-06-181 | 35 | DIBBS |
| E1525M1 | 2020-03-86 | 250 | DIBBS |
| E1525M1 | 2019-09-252 | 165 | DIBBS |
| E1525M1 | 2019-08-241 | 165 | DIBBS |
| E1525M1 | 2019-08-231 | 194 | DIBBS |
| E1525M1 | 2019-08-219 | 194 | DIBBS |
| E1525M1 | 2019-07-210 | 105 | DIBBS |
| E1525M1 | 2019-07-196 | 105 | DIBBS |
| E1525M1 | 2019-05-148 | 116 | DIBBS |
| E1525M1 | 2019-05-136 | 116 | DIBBS |
| 3010-00-373-4102 | 2018-09-252 | 35 | DIBBS |
| 3010-00-373-4102 | 2018-08-225 | 154 | DIBBS |
| 3010-00-373-4102 | 2018-06-165 | 150 | DIBBS |
| 3010-00-373-4102 | 2017-12-354 | 145 | DIBBS |
| 3010-00-373-4102 | 2016-06-179 | 295 | DIBBS |
| 3010-00-373-4102 | 2016-06-168 | 295 | DIBBS |
| 3010-00-373-4102 | 2015-11-318 | 500 | DIBBS |
| 3010-00-373-4102 | 2015-11-306 | 500 | DIBBS |
| 3010-00-373-4102 | 2015-10-289 | 69 | DIBBS |
| 3010-00-373-4102 | 2015-10-278 | 69 | DIBBS |
| E1525M1 | 2015-08-230 | 70 | US |
| 3010-00-373-4102 | 2015-08-222 | 70 | DIBBS |
| 3010-00-373-4102 | 2015-07-188 | 81 | DIBBS |
| 3010-00-373-4102 | 2015-06-180 | 59 | United States |
| 3010-00-373-4102 | 2015-06-173 | 70 | DIBBS |
| 3010-00-373-4102 | 2015-05-151 | 70 | DIBBS |
| 3010-00-373-4102 | 2015-04-103 | 114 | DIBBS |
| 3010-00-373-4102 | 2015-04-92 | 140 | DIBBS |
| E1525M1 | 2015-03-64 | 44 | United States |
| E1525M1 | 2015-03-64 | 70 | United States |
| 3010-00-373-4102 | 2015-02-42 | 70 | DIBBS |
| 3010-00-373-4102 | 2014-12-357 | 44 | DIBBS |
| E1525M1 | 2014-12-345 | 124 | United States |
| 3010-00-373-4102 | 2014-10-303 | 124 | DIBBS |
| 3010-00-373-4102 | 2013-10-301 | 350 | DIBBS |
| 3010-00-373-4102 | 2013-07-207 | 33 | DIBBS |
| 3010-00-373-4102 | 2013-04-95 | 33 | DIBBS |
| 3010-00-373-4102 | 2012-10-286 | 19 | DIBBS |
| 3010-00-373-4102 | 2012-10-286 | 35 | DIBBS |
| 3010-00-373-4102 | 2011-10-289 | 21 | DIBBS |
| 3010-00-373-4102 | 2011-10-289 | 27 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-373-4102
Related Products | NSN 3010-00-373-4102
Technical Data | NSN 3010-00-373-4102
| Characteristic | Specifications |
|---|---|
| DISK MATERIAL | STEEL |
| DESIGN TYPE | DRY |
| FLEXIBILITY | RIGID |
| DISK TYPE | EXTERNAL TEETH |
| CONSTRUCTION | SOLID |
| TEETH QUANTITY PER DISK | 82 |
| FEATURES PROVIDED | FRICTION MATERIAL FACING |
| SPECIAL FEATURES | COATED FACING ATTACHMENT METHOD |
| (NON-CORE DATA) INSIDE DIAMETER | 1.609 INCHES MINIMUM AND 1.611 INCHES MAXIMUM |
| (NON-CORE DATA) THICKNESS | 0.031 INCHES NOMINAL |
| (NON-CORE DATA) MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
| (NON-CORE DATA) MATERIAL LOCATION | BOTH SIDES |
| (NON-CORE DATA) TOOTH ARRANGEMENT | CONTINUOUS |
| (NON-CORE DATA) DESIGN FORM | SOLID |
| (NON-CORE DATA) MATERIAL OUTSIDE DIAMETER | 2.437 INCHES NOMINAL |
| (NON-CORE DATA) MATERIAL INSIDE DIAMETER | 1.609 INCHES MINIMUM AND 1.611 INCHES MAXIMUM |
| (NON-CORE DATA) TEETH PITCH DIAMETER | 2.562 INCHES NOMINAL |
| (NON-CORE DATA) MATERIAL | COPPER |
| (NON-CORE DATA) FSC APPLICATION DATA | ACTUATOR,ELECTRO-MECHANICAL ROTARY,AIRCRAFT |
| MANUFACTURERS CODE | 1R0N6 |
| DESIGN CONTROL REFERENCE | E1525M1 |
Restrictions/Controls & Freight Information | NSN 3010-00-373-4102
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126840 | POWER TRANS BELT CLAMPS,GUIDES ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-373-4102
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
