NSN 3010-00-293-4599 7402895, 8350, 00-293-4599
Product Details | FLEXIBLE COUPLING INSERT
3010-00-293-4599 An item specifically designed to be inserted between the driving and driven members of a flexible coupling to allow for slight misalignment of the shafts.
Part Alternates: 7402895, 8350, 3010-00-293-4599, 00-293-4599, 3010002934599, 002934599
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-293-4599 | 08010 ( INSERT, FLEXIBLE COUPLING ) |
Drawings & Photos | NSN 3010-00-293-4599
Demand History | NSN 3010-00-293-4599
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8350 | 2006-05-144 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-00-293-4599
Technical Data | NSN 3010-00-293-4599
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

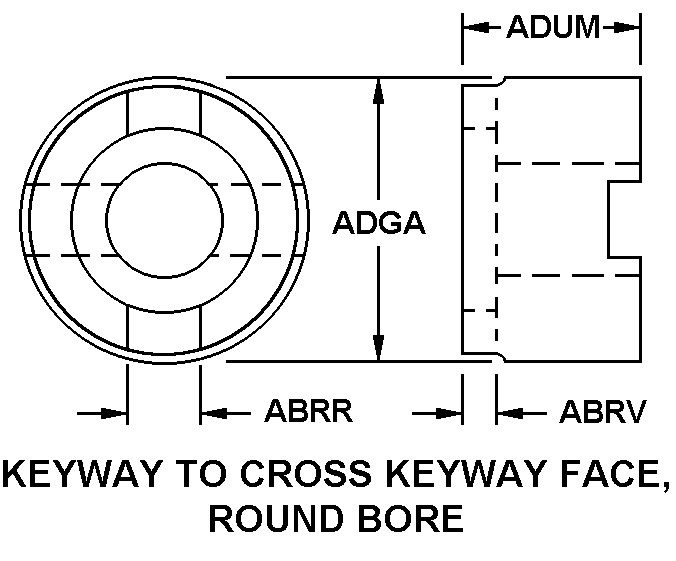

| STYLE DESIGNATOR | A4 KEYWAY TO CROSS KEYWAY FACE, ROUND BORE |
| KEYWAY WIDTH | 0.251 INCHES MINIMUM AND 0.256 INCHES MAXIMUM |
| KEYWAY DEPTH | 0.216 INCHES MINIMUM AND 0.226 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.417 INCHES MINIMUM AND 0.427 INCHES MAXIMUM |
| SPECIAL FEATURES | LAMINATED CONSTRUCTION FEATURE-NOT INCL.;C/BORE DEPTH 2.000 IN.;BORE DIA 1.063 IN.;MAX OD 2.000 IN.;ROCKWELL HARDNESS A89-A91;HUB THK 1.062 IN.;DIFFERENTIATING KEYWAY WDTH 0.313/0.318 IN.;DIFFERENTIATING KEYWAY DEPTH 0.242/0.252 IN. |
| III END ITEM IDENTIFICATION | MAGNETO DRIVE TO ENGINE,T4E1 TANK |
Restrictions/Controls & Freight Information | NSN 3010-00-293-4599
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062460 | MAGNETOS/PARTS NOI IN BOXES/CRATES |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
