NSN 3010-00-070-1858 5139661, 513966-1, 00-070-1858
Product Details | RIGID SHAFT COUPLING
3010-00-070-1858 A device for connecting the ends of two shafts to produce in effect, one piece of rigid shafting so that the rotary motion of one shaft is transmitted to the other shaft. Couplings of the sleeve type must have an over-all length exceeding the outside diameter, or must have an internal spline.
Part Alternates: 5139661, 513966-1, 3010-00-070-1858, 00-070-1858, 3010000701858, 000701858
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 09 MAR 1972 | 00-070-1858 | 13742 ( COUPLING, SHAFT, RIGID ) |
Drawings & Photos | NSN 3010-00-070-1858
Cross Reference | NSN 3010-00-070-1858
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 513966-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-00-070-1858
Technical Data | NSN 3010-00-070-1858
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6750 MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MPR 1201-1, CAGE 80020 MFR REF SINGLE TREATMENT RESPONSE |

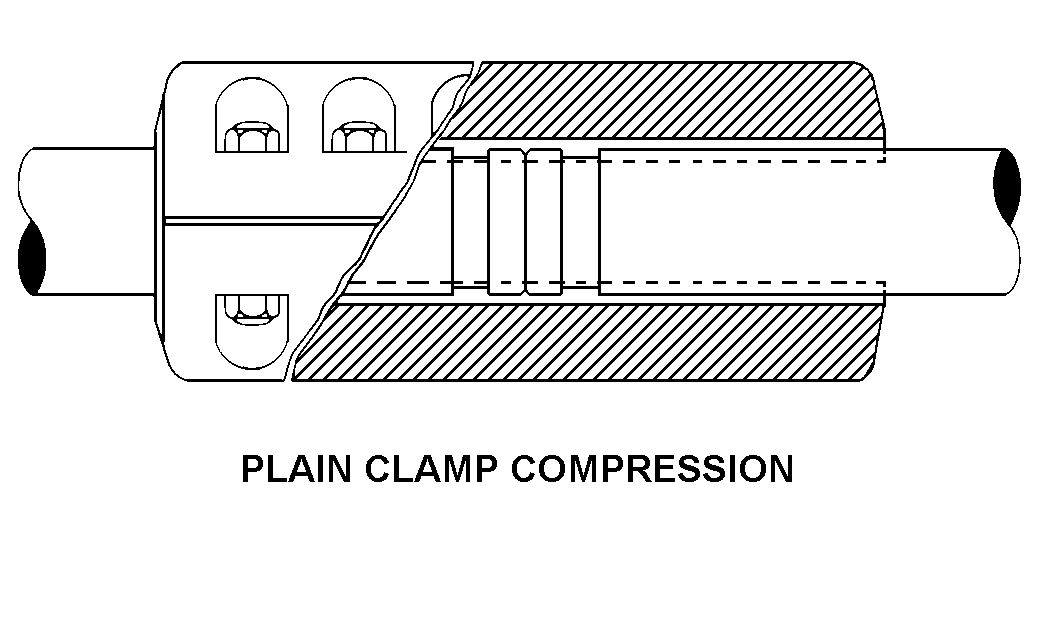

| STYLE DESIGNATOR | A10 PLAIN CLAMP COMPRESSION |
| OVERALL DIAMETER | 8.000 INCHES NOMINAL |
| OVERALL LENGTH | 20.000 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT FIRST END |
| BORE DIAMETER | 4.8750 INCHES NOMINAL FIRST END |
| BORE LENGTH | 20.0000 INCHES NOMINAL FIRST END |
| SECURING METHOD | THREADED HOLE |
| THREADED HOLE QUANTITY | 12 |
| THREAD SIZE DESIGNATOR | 3/4-16 |
| SPECIAL FEATURES | DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY: 3.124 IN. MINIMUM AND 3.126 IN. MAXIMUM; FURNISHED ITEMS: SOCKET HEAD SCREWS 12, SPRING PIN PER MS9047-273 1; KEYING FACILITY QUANTITY: 1; KEYING FACILITY WIDTH: 1.250 IN. MINIMUM AND 1.251 IN. MAXIMUM |
| MANUFACTURERS CODE | 80020 |
| DESIGN CONTROL REFERENCE | 513966-1 |
