NSN 3010-00-057-2431 A500INSR, 00-057-2431, 000572431
Product Details | FLEXIBLE COUPLING INSERT
3010-00-057-2431 An item specifically designed to be inserted between the driving and driven members of a flexible coupling to allow for slight misalignment of the shafts.
Part Alternates: A500INSR, 3010-00-057-2431, 00-057-2431, 3010000572431, 000572431
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JUN 1967 | 00-057-2431 | 08010 ( INSERT, FLEXIBLE COUPLING ) |
Drawings & Photos | NSN 3010-00-057-2431
Cross Reference | NSN 3010-00-057-2431
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A500INSR | 14204 | MAGNALOY COUPLING CO DIV OF DOUVILLE-JOHNSTON CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-00-057-2431
Technical Data | NSN 3010-00-057-2431
| Characteristic | Specifications |
|---|---|
| MATERIAL | MAGNESIUM |

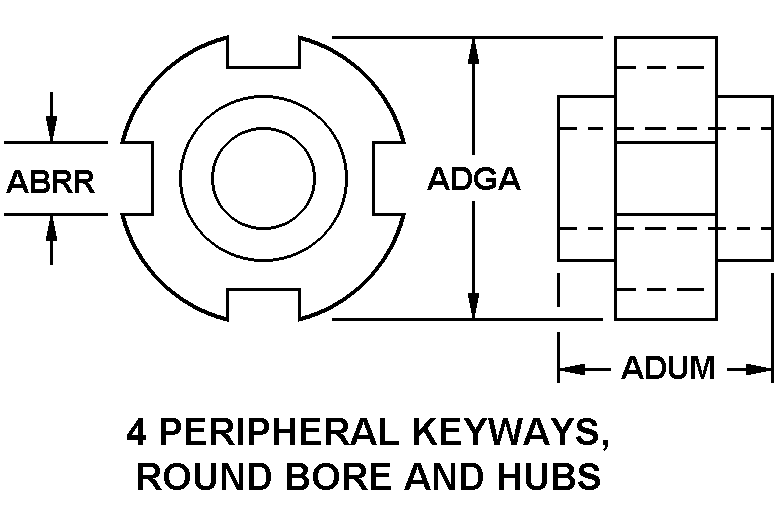

| STYLE DESIGNATOR | A9 4 PERIPHERAL KEYWAYS, ROUND BORE AND HUBS |
| KEYWAY WIDTH | 0.625 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 4.800 INCHES NOMINAL |
| OVERALL THICKNESS | 4.700 INCHES NOMINAL |
| SPECIAL FEATURES | LAMINATED CONSTRUCTION FEATURE-NOT INCL.;BORE DIA 2.310 IN.;HUB LGTH 1.040 IN.;HUB DAI 4.000 IN.;DISTANCE FROM BORE CTR LINE TO BOTTOM OF KEYING FACILITY 1.220 IN. |
Restrictions/Controls & Freight Information | NSN 3010-00-057-2431
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 132330 | TRANSMISSIONS/CLUTCHES/PARTS,NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-057-2431
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
