Product Details | RIGID SHAFT COUPLING

3010-00-051-1649 A device for connecting the ends of two shafts to produce in effect, one piece of rigid shafting so that the rotary motion of one shaft is transmitted to the other shaft. Couplings of the sleeve type must have an over-all length exceeding the outside diameter, or must have an internal spline.

Part Alternates: 113B4635P1, 3010-00-051-1649, 00-051-1649, 3010000511649, 000511649

Mechanical Power Transmission Equipment | Torque Converters and Speed Changers

Supply Group (FSG) NSN Assign. NIIN
30 11 MAY 1967 00-051-1649

Drawings & Photos | NSN 3010-00-051-1649


Cross Reference | NSN 3010-00-051-1649

Part Number Cage Code Manufacturer
113B4635P1 89954 BAE SYSTEMS CONTROLS INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3010-00-051-1649

Technical Data | NSN 3010-00-051-1649

Characteristic Specifications
BODY MATERIAL ALUMINUM ALLOY
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-601, T6 FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT ANODIZE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625, TYPE 1 MIL SPEC SINGLE TREATMENT RESPONSE

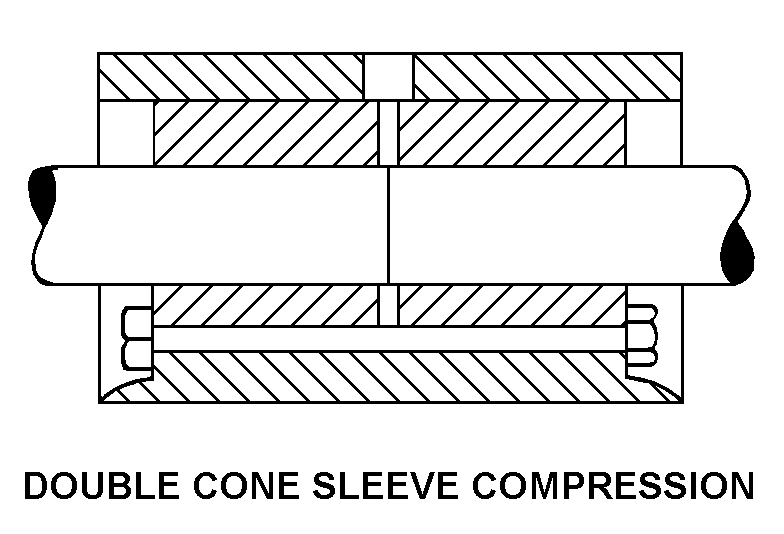

STYLE DESIGNATOR A3 DOUBLE CONE SLEEVE COMPRESSION
OVERALL DIAMETER 0.510 INCHES NOMINAL
OVERALL LENGTH 1.120 INCHES NOMINAL
BORE SHAPE TAPERED FIRST END
SECURING METHOD THREADED HOLE
THREADED HOLE QUANTITY 1
THREAD SIZE DESIGNATOR 1/8-40
III END ITEM IDENTIFICATION F4E ASG26/ASG22
MANUFACTURERS CODE 89954
DESIGN CONTROL REFERENCE 113B4635P1
