NSN 2995-01-611-2449 B4593 , 01-611-2449, 016112449
Product Details | METALLIC PARTICLE DETECTOR
2995-01-611-2449 A sensing device designed to detect the presence of metallic foreign matter in fuel, hydraulic, or lubricating systems. Detection completes an integral electrical circuit that actuates an external signal and/or actuate the engine to stop.20316150056Helicopter Rotor Blades, Drive Mechanisms and Components29900045Miscellaneous Engine Accessories, Nonaircraft29950042Miscellaneous Engine Accessories, Aircraft
Part Alternates: B4593 , 2995-01-611-2449, 01-611-2449, 2995016112449, 016112449
Engine Accessories | Miscellaneous Engine Accessories, Aircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 2012254 | 01-611-2449 | 31902 ( DETECTOR, METALLIC PARTICLE ) |

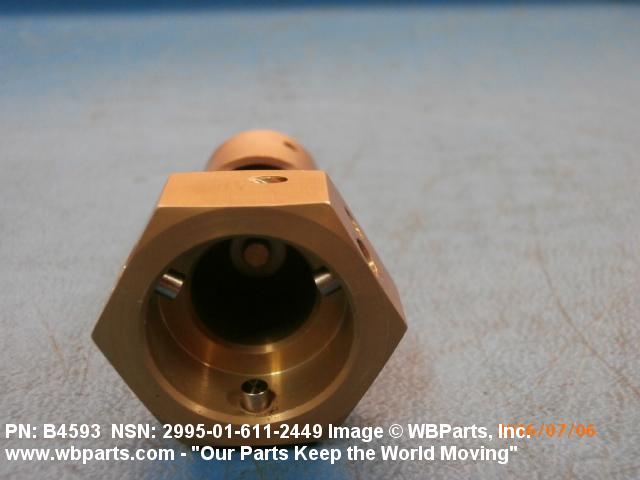

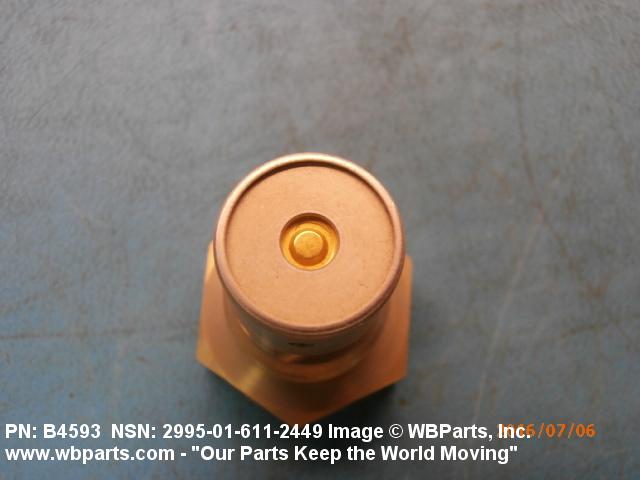

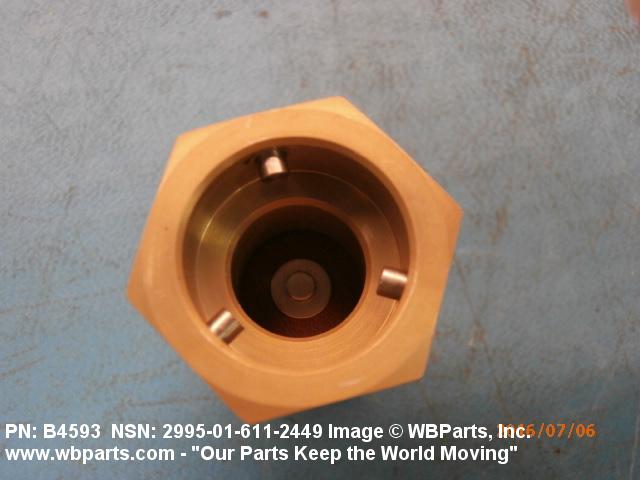

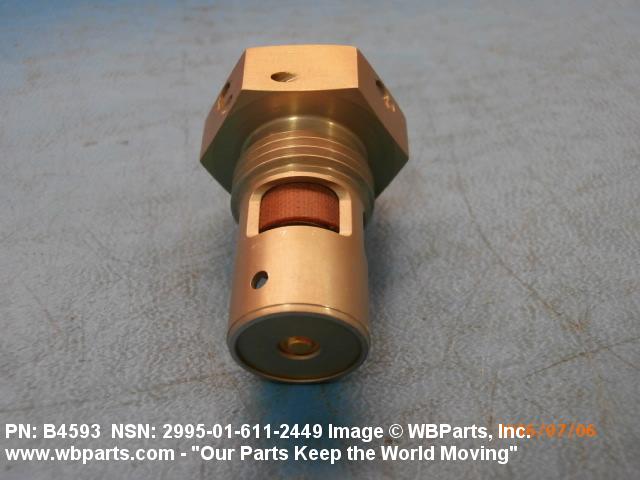

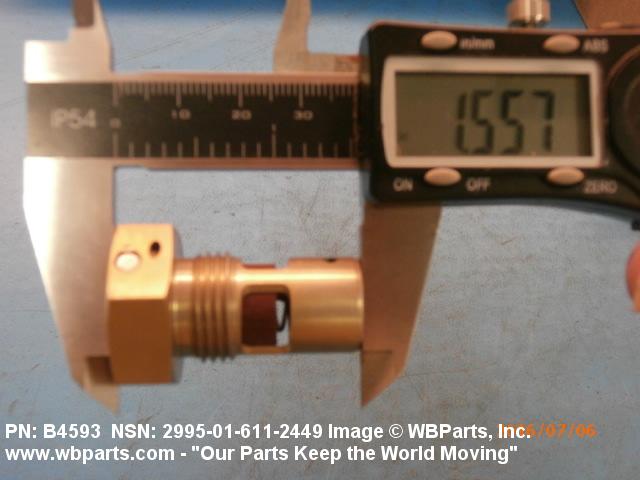

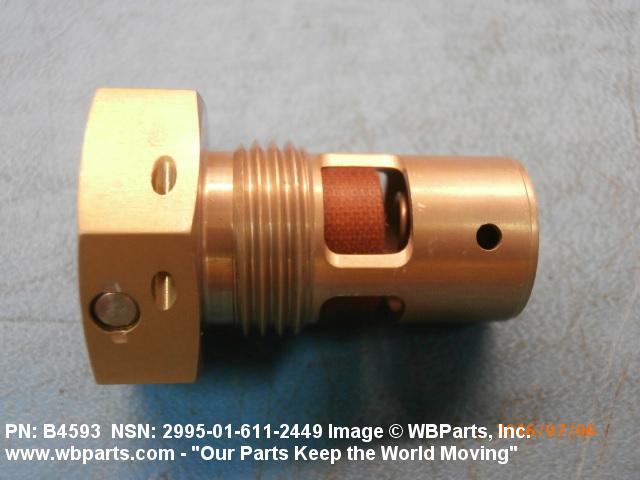

Drawings & Photos | NSN 2995-01-611-2449
Demand History | NSN 2995-01-611-2449
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2995-01-611-2449 | 2016-03-62 | 3 | Canada |
| 2995-01-611-2449 | 2016-01-12 | 5 | Canada |
Cross Reference | NSN 2995-01-611-2449
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B4593 | 97484 | EATON AEROSPACE LLC DIV FUEL AND ELECTRICAL DISTRIBUTION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2995-01-611-2449
Technical Data | NSN 2995-01-611-2449
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | PASSIVATE |
| OVERALL LENGTH | 1.9 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD SIZE | 0.75 INCHES |
| THREAD QUANTITY PER INCH | A16 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ELECTRIC CHIP DETECTOR PLUG |
Restrictions/Controls & Freight Information | NSN 2995-01-611-2449
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
