NSN 2995-00-337-5116 ATS100422, ATS100-422, SKP36130
Product Details | AIR TURBINE ENGINE STARTER
2995-00-337-5116 An item designed to accelerate turbojet and turboprop engines from rest to starter cutoff speed by means of an air driven turbine.
Part Alternates: ATS100422, ATS100-422, SKP36130, 3505230-1-1, 2995-00-337-5116, 00-337-5116, 2995003375116, 350523011, 003375116
Engine Accessories | Miscellaneous Engine Accessories, Aircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 15 JAN 1974 | 00-337-5116 | 20437 ( STARTER, ENGINE, AIR TURBINE ) |

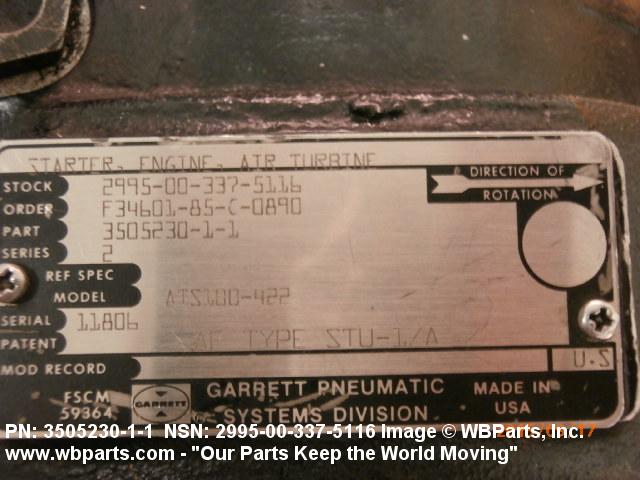

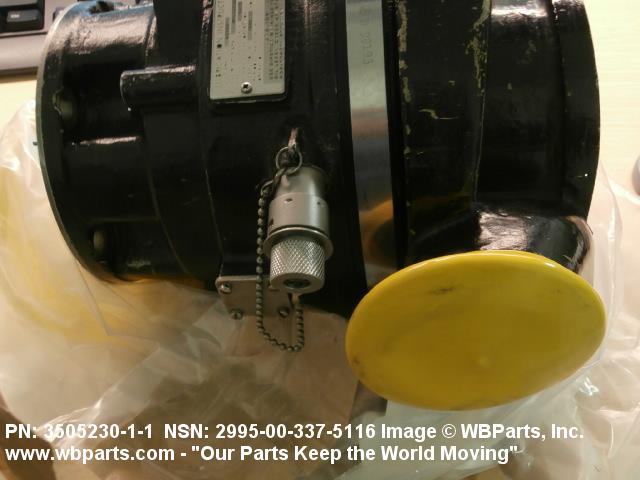

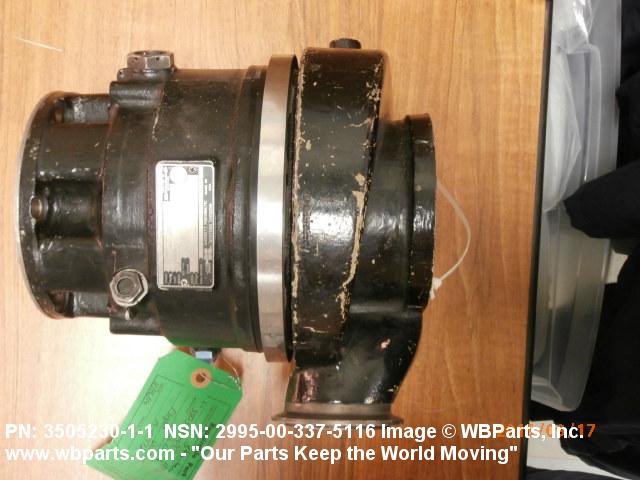

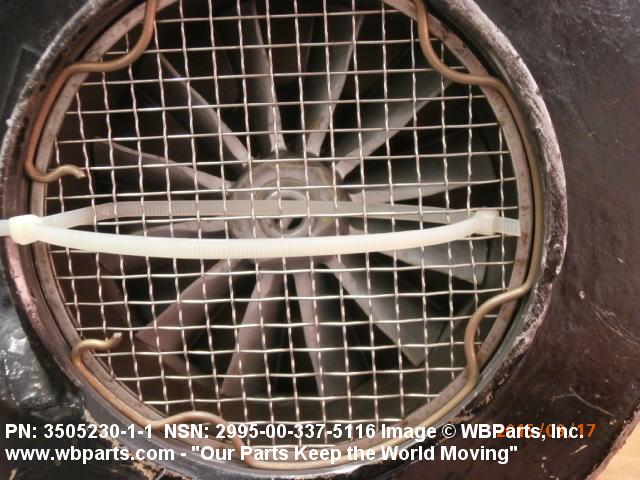

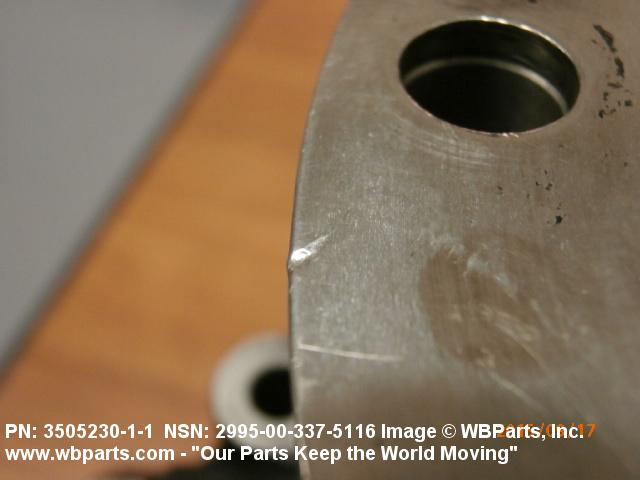

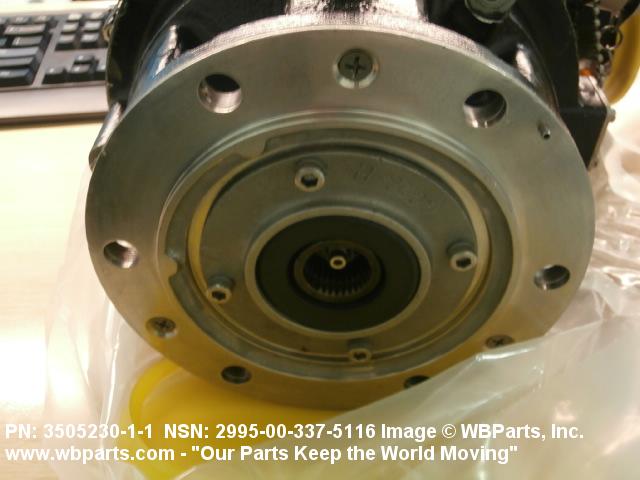

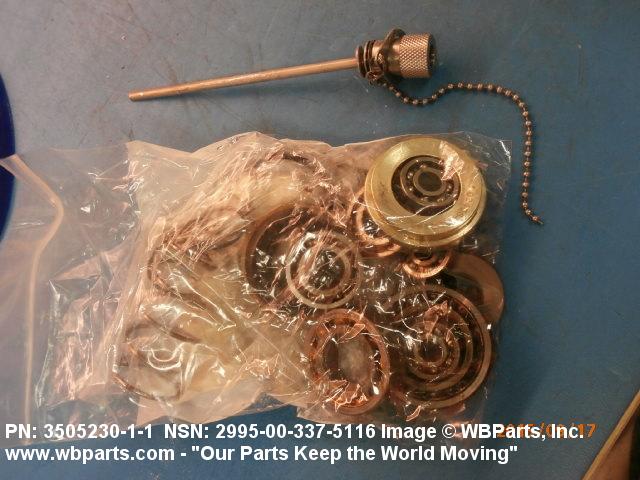

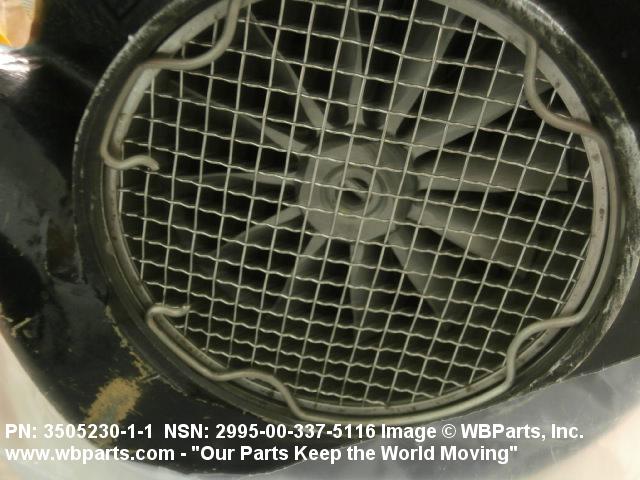

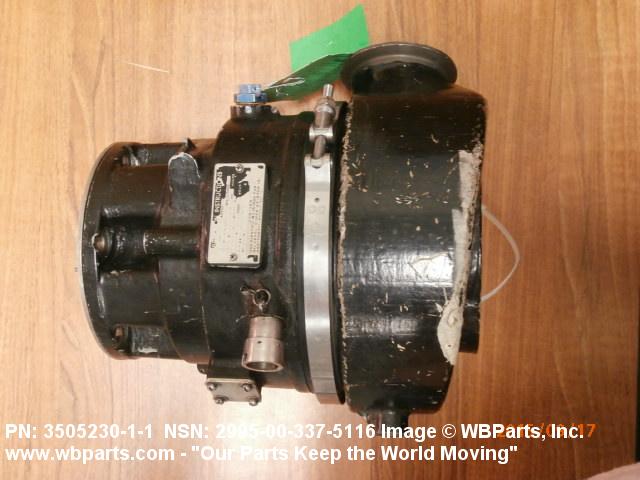

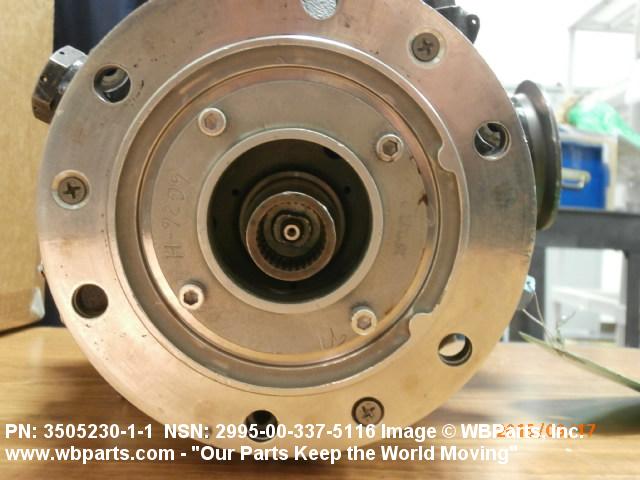

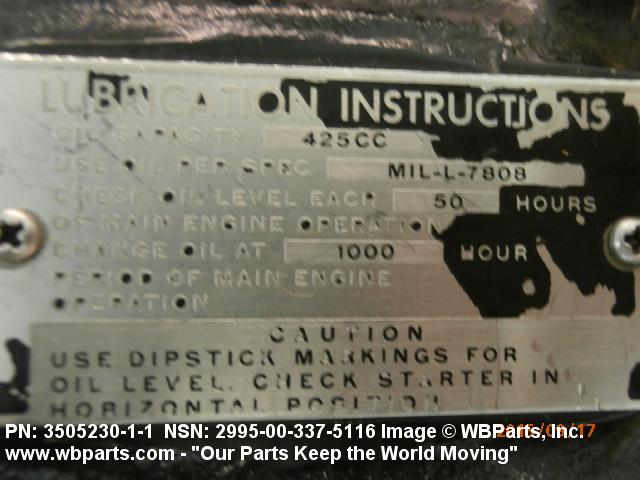

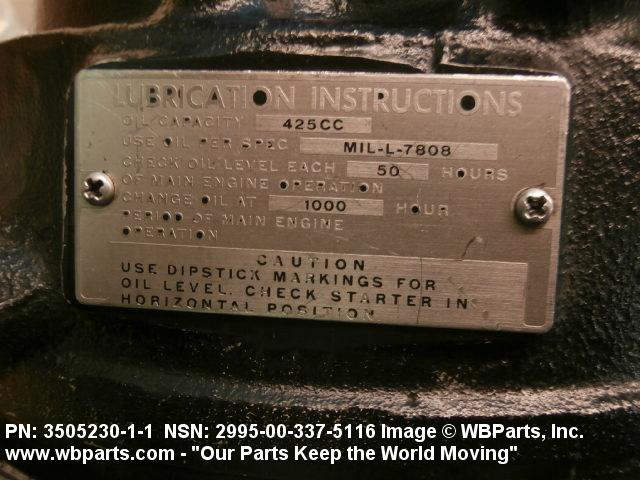

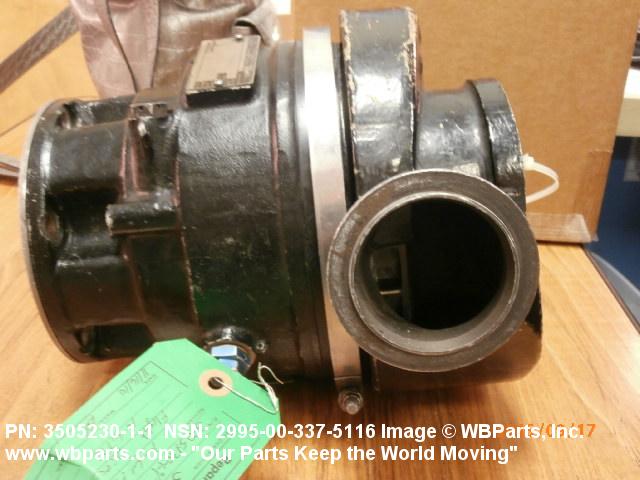

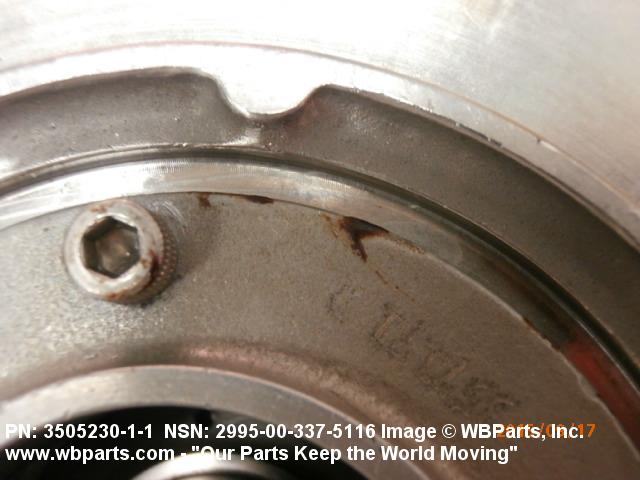

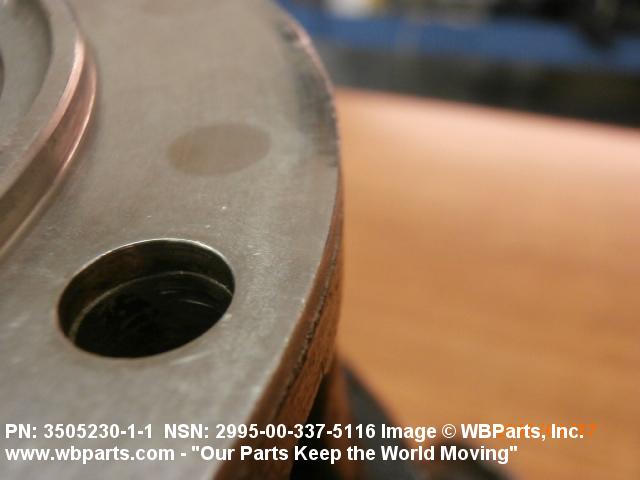

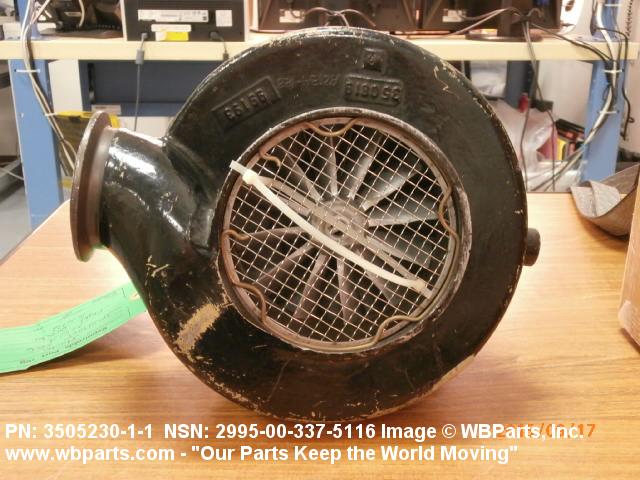

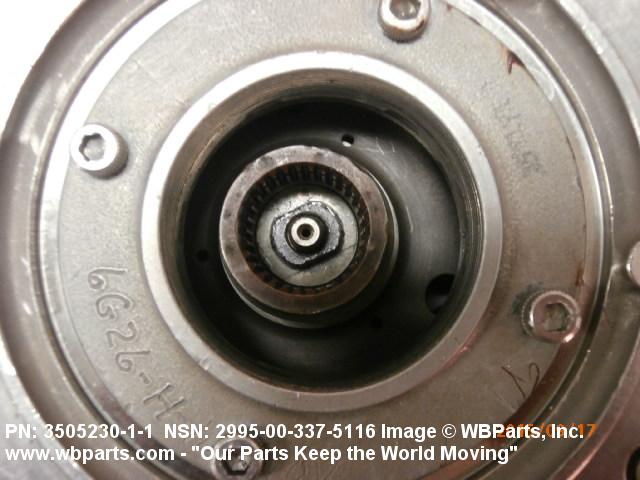

Drawings & Photos | NSN 2995-00-337-5116
Demand History | NSN 2995-00-337-5116
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 350523011 | 2023-10-284 | 1 | Canada |
| 2995-00-337-5116 | 2023-06-156 | 3 | UK |
| 2995-00-337-5116 | 2023-04-100 | 3 | Turkey |
| 350523011 | 2022-11-307 | 1 | United Kingdom |
| 350523011 | 2022-08-216 | 1 | United States |
| 350523011 | 2022-07-188 | 1 | US |
| 350523011 | 2022-06-166 | 1 | United States |
| 350523011 | 2022-04-116 | 2 | United States |
| 350523011 | 2022-03-87 | 2 | United States |
| 350523011 | 2022-03-70 | 1 | US |
| 350523011 | 2022-03-66 | 2 | United States |
| 350523011 | 2022-03-62 | 2 | US |
| 2995-00-337-5116 | 2020-01-15 | 1 | YU |
| 2995-00-337-5116 | 2016-01-24 | 1 | PH |
| 350523011 | 2015-12-356 | 1 | US |
| 350523011 | 2015-09-254 | 1 | United States |
| 2995-00-337-5116 | 2015-06-177 | 1 | United States |
| 2995-00-337-5116 | 2015-03-83 | 1 | United States |
| 350523011 | 2013-10-301 | 1 | US |
| 2995-00-337-5116 | 2013-10-280 | 1 | US |
| 3505230-1-1 | 2011-12-346 | 8 | |
| 3505230-1-1 | 2011-11-332 | 8 | |
| 350523011 | 2011-07-187 | 1 | PL |
| 2995-00-337-5116 | 2011-06-154 | 1 | MANUAL |
| 3505230-1-1 | 2011-06-154 | 1 | Czech Republic |
| 2995-00-337-5116 | 2011-05-132 | 1 | PL |
| 2995-00-337-5116 | 2008-08-218 | 2 | Philippines |
| 2995-00-337-5116 | 2006-12-347 | 5 | United States |
Cross Reference | NSN 2995-00-337-5116
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2995-00-337-5116
Related Products | NSN 2995-00-337-5116
Technical Data | NSN 2995-00-337-5116
| Characteristic | Specifications |
|---|---|
| AIR SUPPLY INLET PRESSURE | 54.0 POUNDS PER SQUARE INCH |
| AIR SUPPLY INLET TEMP RATING | 600.0 DEG FAHRENHEIT |
| AIR SUPPLY FLOW RATE | 100.0 POUNDS PER MINUTE |
| OUTPUT TORQUE RATING | 135.000 FOOT-POUNDS NOMINAL |
| DRIVE ROTATION DIRECTION | COUNTERCLOCKWISE |
| DRIVE TYPE | SPLINE |
| TEETH QUANTITY | 24 |
| SPLINE PITCH | 20/30 |
| PITCH CIRCLE DIAMETER | 1.200 INCHES NOMINAL |
| MAJOR DIAMETER | 1.264 INCHES NOMINAL |
| MINOR DIAMETER | 1.090 INCHES NOMINAL |
| AIR INLET CONNECTION TYPE | BAND COUPLER |
| QUANTITY | 1 |
| OUTSIDE DIAMETER | 3.190 INCHES NOMINAL |
| QUICK DETACHABLE MOUNTING FEATURE | NOT INCLUDED |
| STANDARD MOUNTING FEATURE | INCLUDED |
| DOCUMENT SOURCE | 99237 |
| DOCUMENT IDENTIFICATION | AND20002 |
| MOUNTING TYPE DESIGNATOR | XII-S |
| III FSC APPLICATION DATA | STARTER,ENGINE,AIR TURBINE,AIRCRAFT |
| MANUFACTURERS CODE | 59364 |
| DESIGN CONTROL REFERENCE | 3505230-1-1 |
Restrictions/Controls & Freight Information | NSN 2995-00-337-5116
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI SUB3 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2995-00-337-5116
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | LC | CARGO/TRANSPORTAIRCRAFT(C130) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | E | (1) IRAM Program Intensive Management Reparables (2) Material (expendable ordnance) Requiring Lot and Serial Number Control but which is Reported by Serial Number Only |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
