NSN 2990-01-154-2597 178W1011005, 178W-1011-005, 01-154-2597
Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
2990-01-154-2597 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: 178W1011005, 178W-1011-005, 2990-01-154-2597, 01-154-2597, 2990011542597, 011542597
Engine Accessories | Miscellaneous Engine Accessories, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 23 MAY 1983 | 01-154-2597 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 2990-01-154-2597
Cross Reference | NSN 2990-01-154-2597
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 178W-1011-005 | 65586 | CHROMALOX, INC. DBA OGDEN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2990-01-154-2597
Technical Data | NSN 2990-01-154-2597
| Characteristic | Specifications |
|---|---|

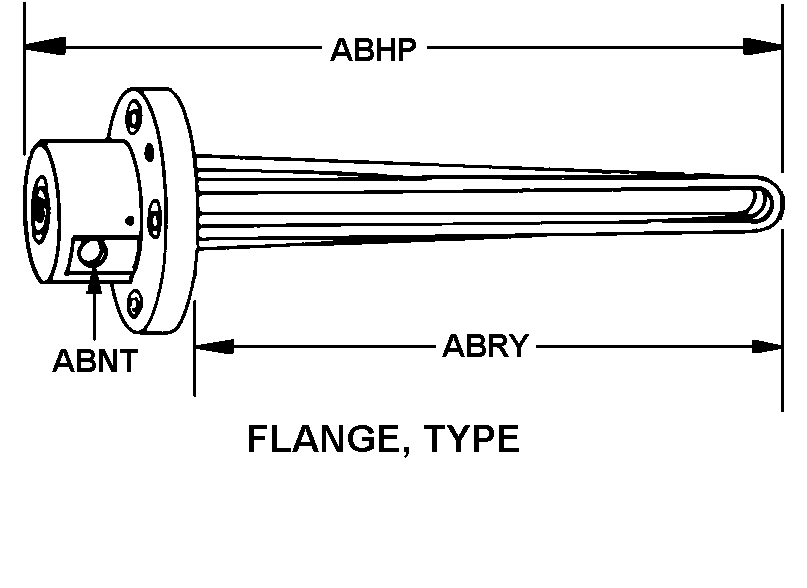

| BODY STYLE | 45 FLANGE, TYPE |
| OVERALL LENGTH | 23.690 INCHES NOMINAL |
| CONDUIT OPENING SIZE | 1.000 INCHES NOMINAL |
| LENGTH | 19.500 INCHES MINIMUM AND 20.000 INCHES MAXIMUM |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | NICKEL ALLOY SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 480.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | THREE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 8500.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | NOT RATED SINGLE VOLTAGE |
| ELEMENT QUANTITY | 6 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 4 STUD TYPE |
| TERMINAL QUANTITY | 3 |
| TERMINAL LENGTH | 0.750 INCHES NOMINAL |
| MOUNTING METHOD STYLE | 4 FLANGE TYPE MOUNTING FACILITY |
| HOLE DIAMETER | 0.750 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 8.500 INCHES NOMINAL |
| FLANGE DIAMETER | 10.000 INCHES NOMINAL |
| HOLE OR SLOT QUANTITY | 8 |
| FLANGE THICKNESS | 0.937 INCHES NOMINAL |
| III UNPACKAGED UNIT WEIGHT | 25.00 POUNDS |
| III END ITEM IDENTIFICATION | HEATER IMMERSION P/N 77W1000-005 FOR MAIN PROPULSION ENGINES ONBOARD 180 FT COAST GUARD VESSELS |
| MANUFACTURERS CODE | 65586 |
| DESIGN CONTROL REFERENCE | 178W-1011-005 |
Restrictions/Controls & Freight Information | NSN 2990-01-154-2597
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
