NSN 2990-01-148-5074 3P12044, 01-148-5074, 011485074
Product Details | ENGINE COOLANT HEATER
2990-01-148-5074 A heater designed to burn fuel or utilize electric power which applies heat through direct connection to the engine coolant system to facilitate starting in low temperatures; may also supply heated coolant to heat exchangers. Must have mounting facilities. See also HEATER, AIR DUCT, ENGINE and HEATER, AIR DUCT-COOLANT, ENGINE.
Part Alternates: 3P12044, 2990-01-148-5074, 01-148-5074, 2990011485074, 011485074
Engine Accessories | Miscellaneous Engine Accessories, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 07 MAR 1983 | 01-148-5074 | 11517 ( HEATER, COOLANT, ENGINE ) |

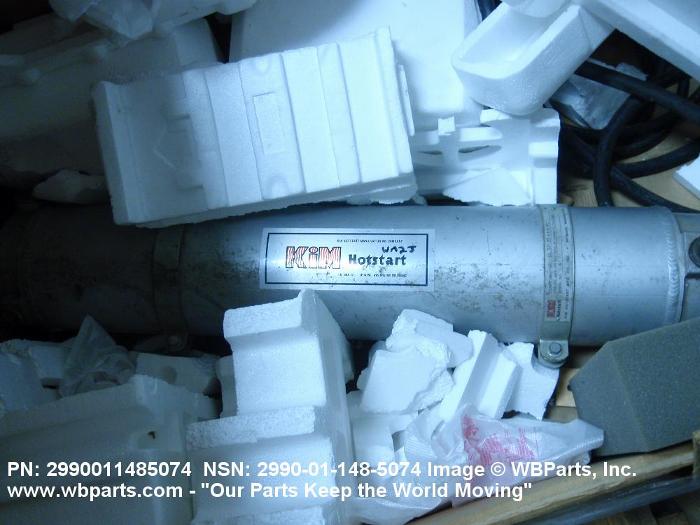

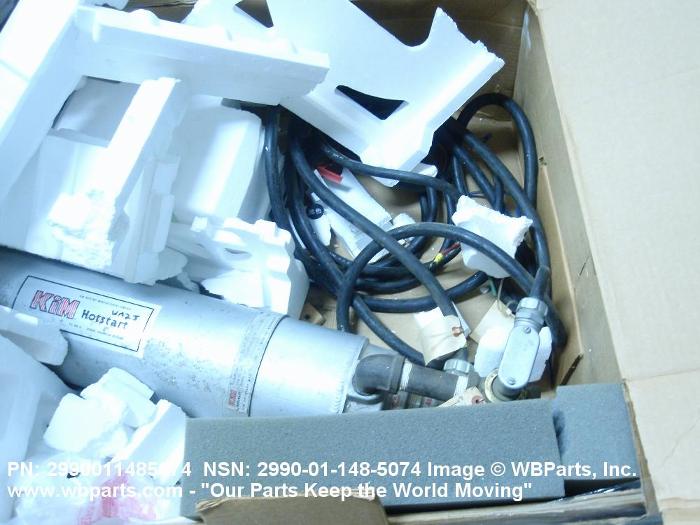

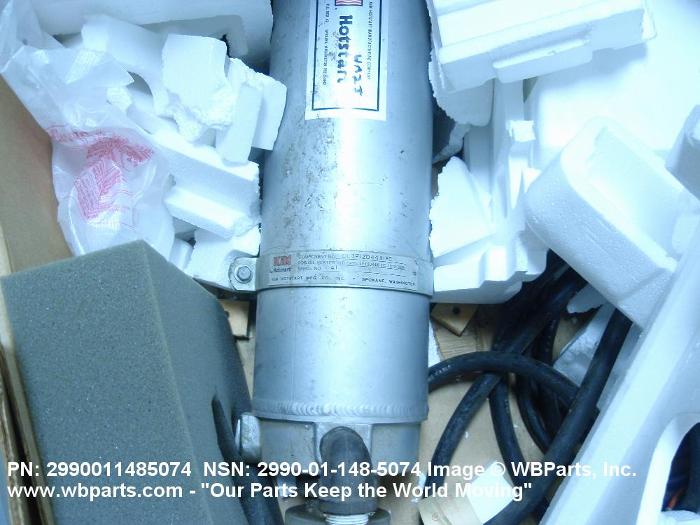

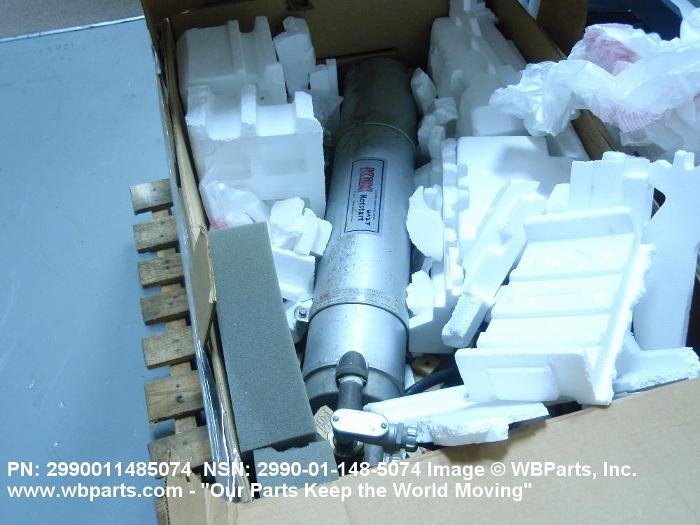

Drawings & Photos | NSN 2990-01-148-5074
Demand History | NSN 2990-01-148-5074
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2990-01-148-5074 | 2008-10-290 | 1 | United States |
| 2990-01-148-5074 | 2007-11-326 | 2 | DIBBS |
Cross Reference | NSN 2990-01-148-5074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3P12044 | 95408 | HOTSTART INC. DBA HOTSTART |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2990-01-148-5074
Technical Data | NSN 2990-01-148-5074
| Characteristic | Specifications |
|---|---|
| POWER SOURCE FOR WHICH DESIGNED | ELECTRICITY |
| HEATING ELEMENT WATTAGE | 12000.0 |
| HEAT DELIVERY RATE IN BTU PER HOUR | 40928.0 |
| COOLANT CIRCULATION METHOD | NATURAL |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 460.0 |
| MOUNTED HEATER SWITCH | INCLUDED |
| AUTOMATIC TEMP CONTROL | INCLUDED |
| MANUFACTURERS CODE | 95408 |
| DESIGN CONTROL REFERENCE | 3P12044 |
Restrictions/Controls & Freight Information | NSN 2990-01-148-5074
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 026470 | HEATERS INTERNAL COMBUSTION ENGINE |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XF | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2990-01-148-5074
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
