NSN 2990-00-195-5853 15077405, 67069G, 6-7069G

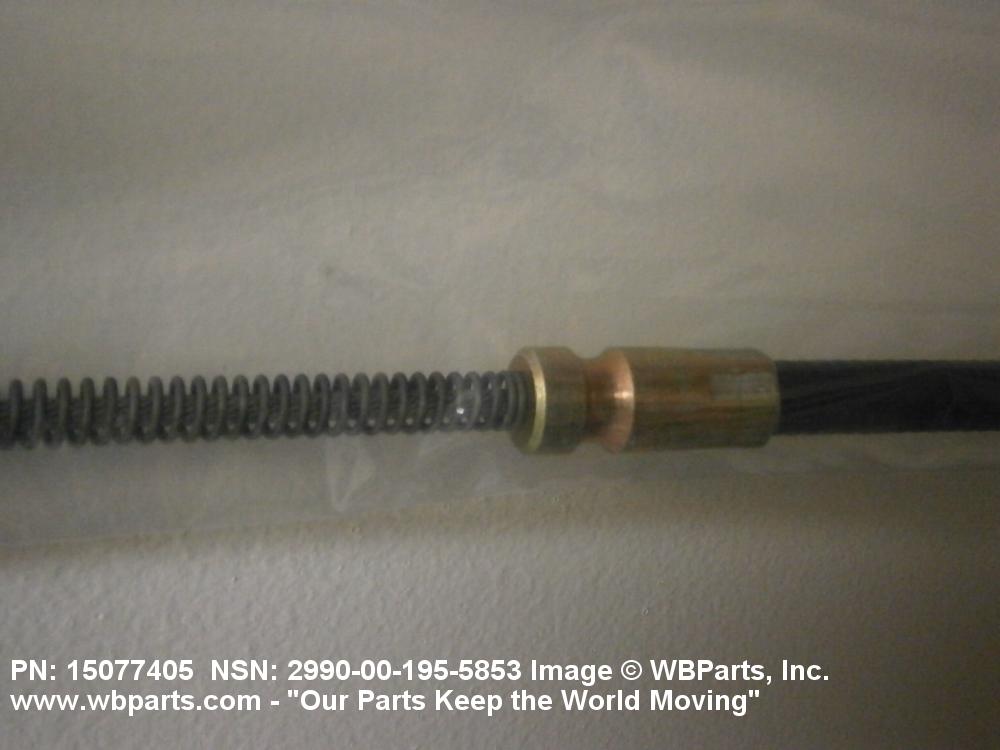

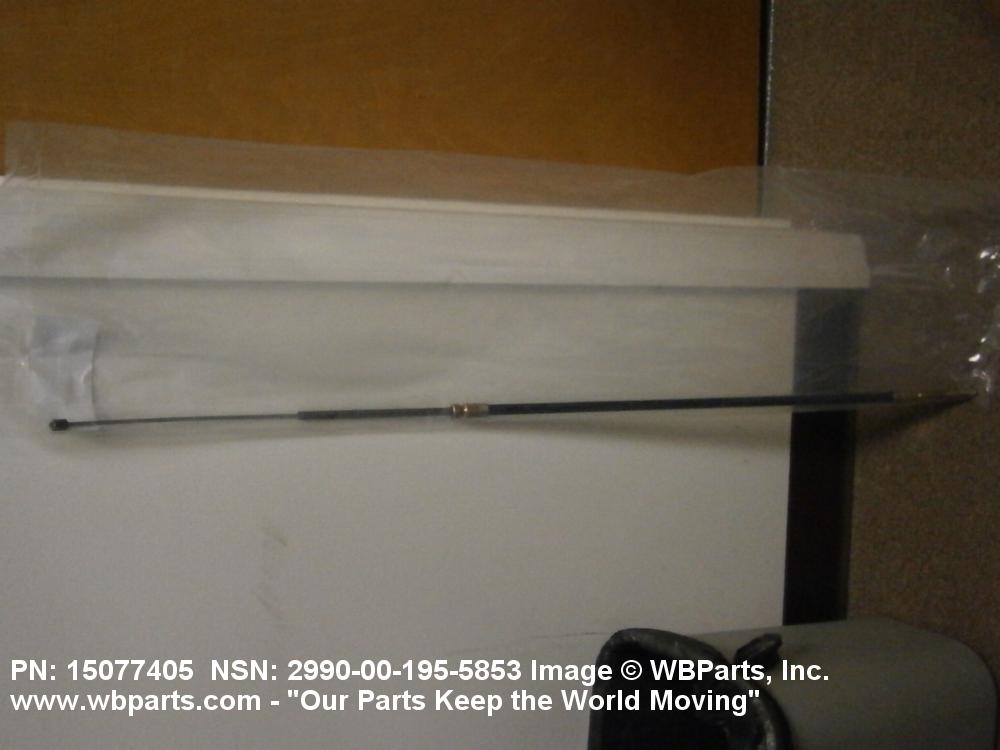

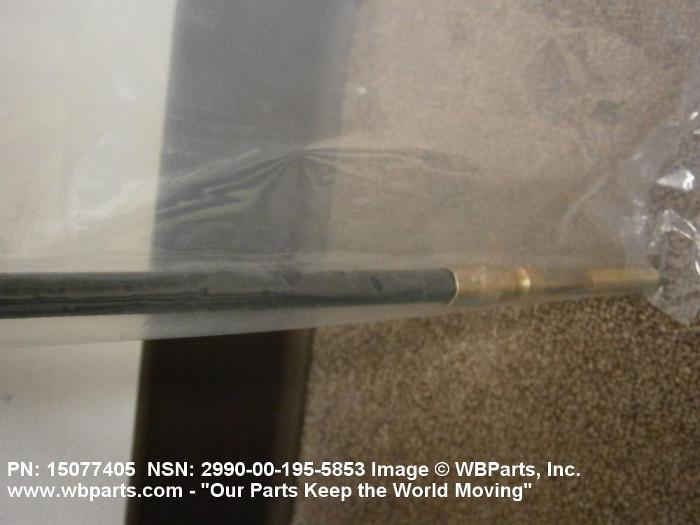

Product Details | PUSH-PULL CONTROL ASSEMBLY
2990-00-195-5853 A control consisting of a wire, wire rope, or a center load rail with ball bearings, within a flexible conduit. One end must have a threaded sleeve for mounting to a wall, bulkhead, or handle, or clevis. It is used to operate or control, either manually or mechanically a mechanical device. It may include such attaching devices as nut(s), washer(s), clevis, bracket(s), and/or the like. For items designed to transmit rotary motion, see SHAFT ASSEMBLY, FLEXIBLE.20516800049Miscellaneous Aircraft Accessories and Components25900034Miscellaneous Vehicular Components29900045Miscellaneous Engine Accessories, Nonaircraft29950042Miscellaneous Engine Accessories, Aircraft30400042Miscellaneous Power Transmission Equipment
Part Alternates: 15077405, 67069G, 6-7069G, 2990-00-195-5853, 00-195-5853, 2990001955853, 001955853
Engine Accessories | Miscellaneous Engine Accessories, Nonaircraft
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
29 | 00-195-5853 | 07468 ( CONTROL ASSEMBLY, PUSH-PULL ) |
Demand History | NSN 2990-00-195-5853
Part Number | Request Date | QTY | Origin |
---|---|---|---|
2990-00-195-5853 | 2011-09-250 | 1 | United States |
2990-00-195-5853 | 2011-06-175 | 1 | DIBBS |
2990-00-195-5853 | 2011-05-148 | 2 | DIBBS |
2990-00-195-5853 | 2011-04-115 | 1 | DIBBS |
2990-00-195-5853 | 2011-02-58 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 2990-00-195-5853
Technical Data | NSN 2990-00-195-5853
Characteristic | Specifications |
---|---|
CORE MATERIAL | STEEL |
CORE CONSTRUCTION | WIRE ROPE |
CORE DIAMETER | 0.142 INCHES NOMINAL |
FLEXIBLE CONDUIT MATERIAL | STEEL |
FLEXIBLE CONDUIT OUTSIDE DIAMETER | 0.422 INCHES NOMINAL |
EFFECTIVE LENGTH | 36.000 INCHES NOMINAL |
TRAVEL DISTANCE | 8.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2990-00-195-5853
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Category | Code | Description |
---|---|---|
No Freight Information |
