NSN 2945-01-350-3507 30709451, 3070945-1, 01-350-3507
Product Details | FLUID FILTER ELEMENT
2945-01-350-3507 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments
Part Alternates: 30709451, 3070945-1, 2945-01-350-3507, 01-350-3507, 2945013503507, 013503507
Engine Accessories | Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 14 DEC 1991 | 01-350-3507 | 32624 ( FILTER ELEMENT, FLUID ) |

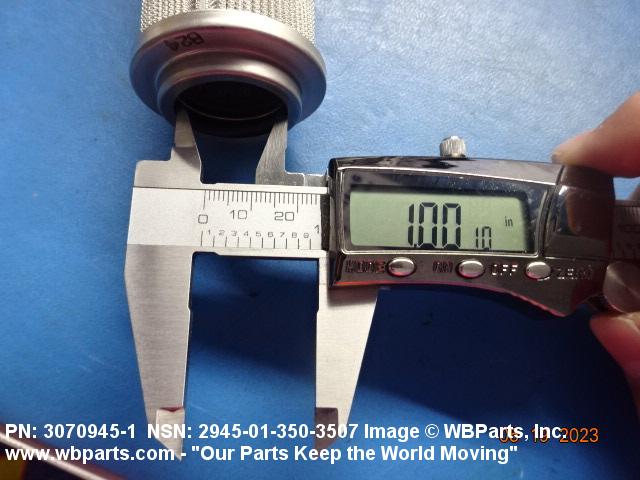

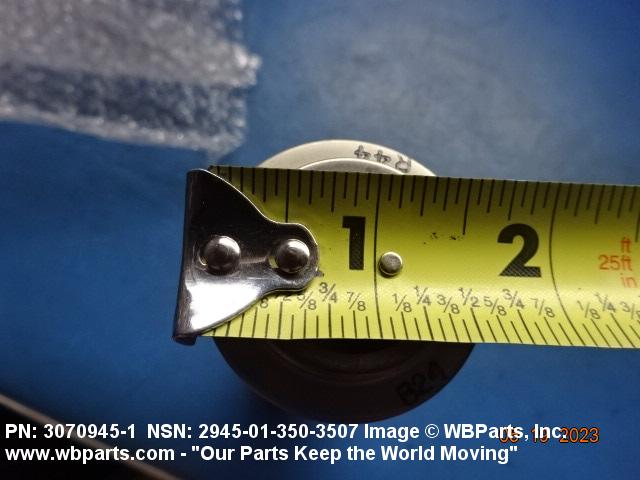

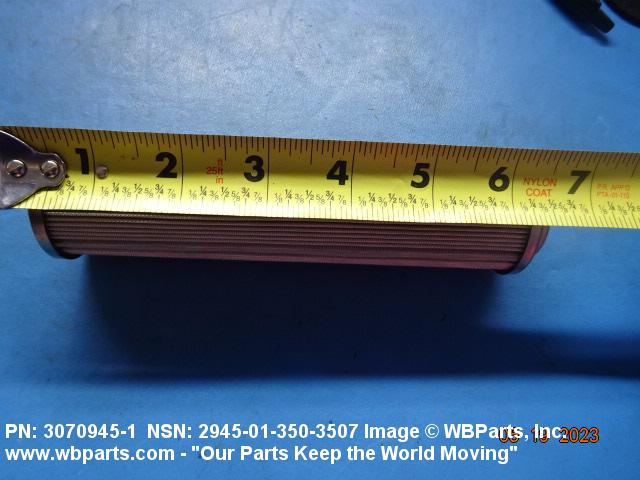

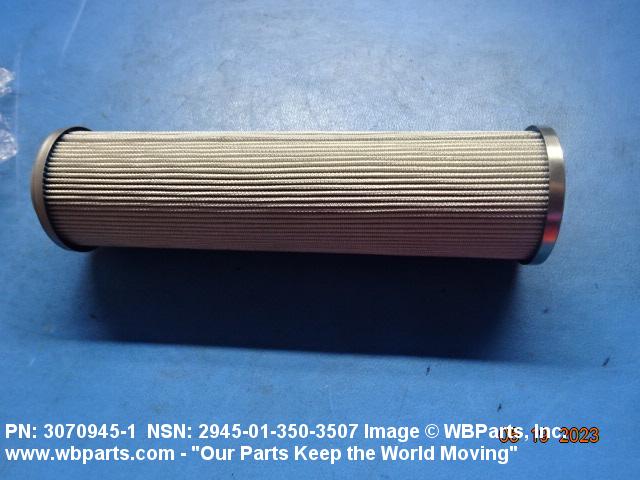

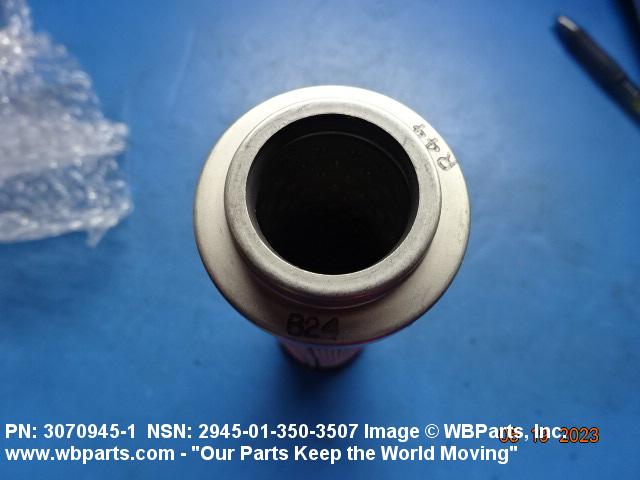

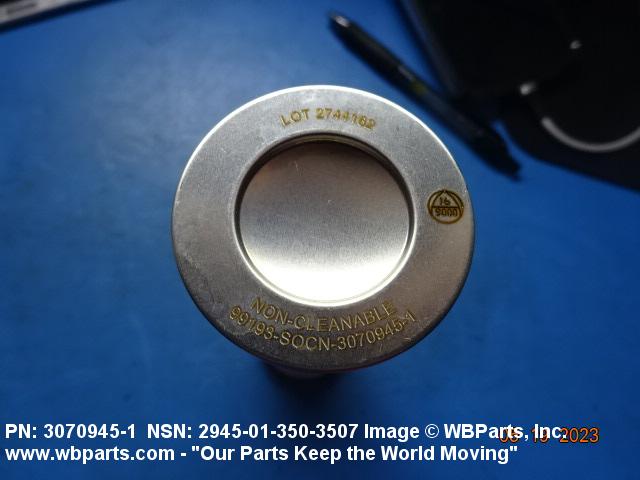

Drawings & Photos | NSN 2945-01-350-3507
Demand History | NSN 2945-01-350-3507
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2945-01-350-3507 | 2023-09-255 | 3 | ID |
| 2945-01-350-3507 | 2023-04-107 | 16 | Taiwan |
| 30709451 | 2023-02-47 | 1 | United States |
| 2945-01-350-3507 | 2022-06-153 | 9 | Kazakhstan |
| 2945-01-350-3507 | 2016-03-78 | 10 | China |
| 2945-01-350-3507 | 2012-03-72 | 269 | MANUAL |
| 3070945-1 | 2012-03-72 | 269 | TW |
| 30709451 | 2012-01-10 | 1 | Spain |
| 30709451 | 2011-06-160 | 45 | CN |
| 30709451 | 2009-01-20 | 229 | France |
| 2945-01-350-3507 | 2007-08-227 | 50 | China |
| 30709451 | 2007-05-142 | 100 | US |
Cross Reference | NSN 2945-01-350-3507
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3070945-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2945-01-350-3507
Technical Data | NSN 2945-01-350-3507
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | USED ON BAE C29A AIRCRAFT |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 3070945-1 |
Restrictions/Controls & Freight Information | NSN 2945-01-350-3507
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 2945-01-350-3507
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Materiel Management Aggregation Code | TQ | TF:REAPER/MQ9 |
| Source of Supply | F83 | General Atomics-Aeronautical Systems 16761 Via Del Campo Court San Diego, CA 92127-1713 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
