NSN 2945-01-327-3834 513P63001, 513P630-01, 01-327-3834
Product Details | FLUID FILTER ELEMENT
2945-01-327-3834 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments
Part Alternates: 513P63001, 513P630-01, 2945-01-327-3834, 01-327-3834, 2945013273834, 013273834
Engine Accessories | Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 12 OCT 1990 | 01-327-3834 | 32624 ( FILTER ELEMENT, FLUID ) |
Drawings & Photos | NSN 2945-01-327-3834
Cross Reference | NSN 2945-01-327-3834
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 513P630-01 | 65065 | WOODWARD FST INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2945-01-327-3834
Technical Data | NSN 2945-01-327-3834
| Characteristic | Specifications |
|---|---|

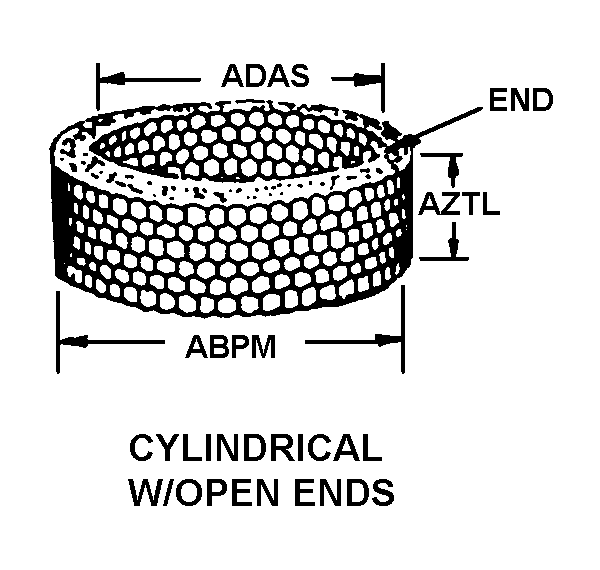

| STYLE DESIGNATOR | A20 CYLINDRICAL W/OPEN ENDS |
| BODY DIAMETER | 0.273 INCHES MINIMUM AND 0.277 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.236 INCHES NOMINAL |
| BODY OVERALL LENGTH | 0.630 INCHES NOMINAL |
| FILTERING MEDIA DESIGN | PERFORATED SINGLE FILTERING MEDIA RESPONSE |
| PERFORATION DIAMETER | 0.007 INCHES MINIMUM AND 0.009 INCHES MAXIMUM |
| SPECIAL FEATURES | FILTERING MATERIAL CONSISTS OF STAINLESS STEEL,AMS 5511,5512,OR 5513 ELECTRO DEPOSITED SHEET;THICKNESS 0.00300.0045 IN. THICK;OPEN AREAS ARE 31%-51%;END SECTION MATERIAL IS STAINLESS STEEL,AMS 5646 |
| III END ITEM IDENTIFICATION | F100PW0229 NOZZLE |
| MANUFACTURERS CODE | 65065 |
| DESIGN CONTROL REFERENCE | 513P630-01 |
Restrictions/Controls & Freight Information | NSN 2945-01-327-3834
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2945-01-327-3834
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NZ | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, F-100–P-100 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
