NSN 2945-01-294-2752 14129K, 14129-K, 5904862

Product Details | INTAKE AIR CLEANER FILTER ELEMENT

2945-01-294-2752 A replaceable device designed to remove dust, pollen or other foreign matter from the air passing through it. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, or the like. It is designed to fit into an AIR CLEANER, INTAKE.20329400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43100028Compressors and Vacuum Pumps

Part Alternates: 14129K, 14129-K, 5904862, 2945-01-294-2752, 01-294-2752, 2945012942752, 012942752

Engine Accessories | Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
29	14 FEB 1989	01-294-2752	60475 ( FILTER ELEMENT, INTAKE AIR CLEANER )

Drawings & Photos | NSN 2945-01-294-2752

Part Number	Request Date	QTY	Origin
2945-01-294-2752	2016-04-112	350	DIBBS
2945-01-294-2752	2016-02-47	159	DIBBS
2945-01-294-2752	2016-02-35	116	United States
2945-01-294-2752	2015-10-298	598	DIBBS
2945-01-294-2752	2015-09-253	251	DIBBS
2945-01-294-2752	2015-06-161	242	DIBBS
2945-01-294-2752	2015-05-132	105	DIBBS
2945-01-294-2752	2015-02-40	99	DIBBS
2945-01-294-2752	2014-12-355	86	DIBBS
2945-01-294-2752	2014-06-169	10	DIBBS
2945-01-294-2752	2011-03-70	320	DIBBS
2945-01-294-2752	2011-02-55	320	DIBBS
2945-01-294-2752	2010-04-102	306	DIBBS

Cross Reference | NSN 2945-01-294-2752

Part Number	Cage Code	Manufacturer
14129-K	91139	WAYNE WIRE CLOTH PRODUCTS INC
5904862	10989	PALL AEROPOWER CORP SUB OF PALL CORP
5904862	79318	MEGGITT (NORTH HOLLYWOOD), INC.
5904862	99167	HAMILTON SUNDSTRAND CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2945-01-294-2752

Compare

Related Products | NSN 2945-01-294-2752

2945-01-294-4116, 2945-01-295-9647, 2945-01-298-3026, 2945-01-299-6087, 2945-01-301-1542

Technical Data | NSN 2945-01-294-2752

Characteristic	Specifications

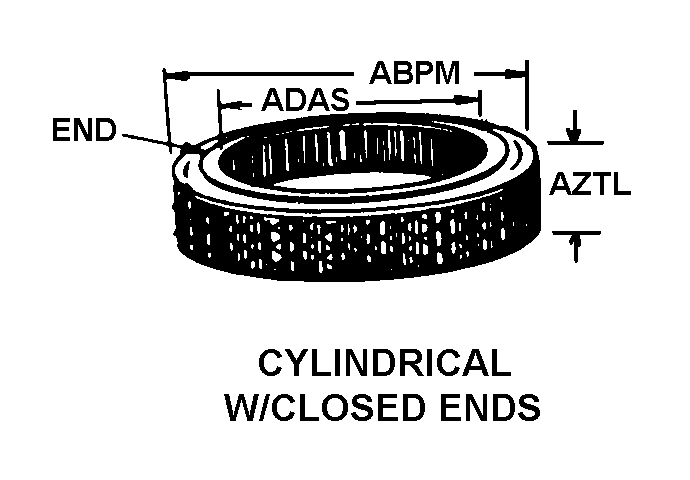

STYLE DESIGNATOR	A19 CYLINDRICAL W/CLOSED ENDS
BODY DIAMETER	0.439 INCHES NOMINAL
BODY INSIDE DIAMETER	0.380 INCHES NOMINAL
BODY OVERALL LENGTH	0.195 INCHES NOMINAL
DESIGN TYPE	NONREUSABLE
III FSC APPLICATION DATA	ENGINE,BLEED-AIR,F101-GE-102,B1-B ACFT
MANUFACTURERS CODE	79318
MFR SOURCE CONTROLLING REFERENCE	5904862

Restrictions/Controls & Freight Information | NSN 2945-01-294-2752

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	190500	VEHICLE PARTS GROUP
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	590	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2945-01-294-2752

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	JF	SX:F-101 ENGINE
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
