NSN 2945-01-206-7669 FSCX0342630A, FSCX0342630AB, 3375479001
Product Details | FLUID FILTER
2945-01-206-7669 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.21516500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving41300045Refrigeration and Air Conditioning Components43300057Centrifugals, Separators, and Pressure and Vacuum Filters4930000063500059Miscellaneous Alarm, Signal, and Security Detection Systems65150057Medical and Surgical Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies66300029Chemical Analysis Instruments
Part Alternates: FSCX0342630A, FSCX0342630AB, 3375479001, 337-547-9001, 2945-01-206-7669, 01-206-7669, 2945012067669, 012067669
Engine Accessories | Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 22 APR 1985 | 01-206-7669 | 32622 ( FILTER, FLUID ) |
Drawings & Photos | NSN 2945-01-206-7669
Demand History | NSN 2945-01-206-7669
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3375479001 | 2011-08-220 | 6 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2945-01-206-7669
Technical Data | NSN 2945-01-206-7669
| Characteristic | Specifications |
|---|---|

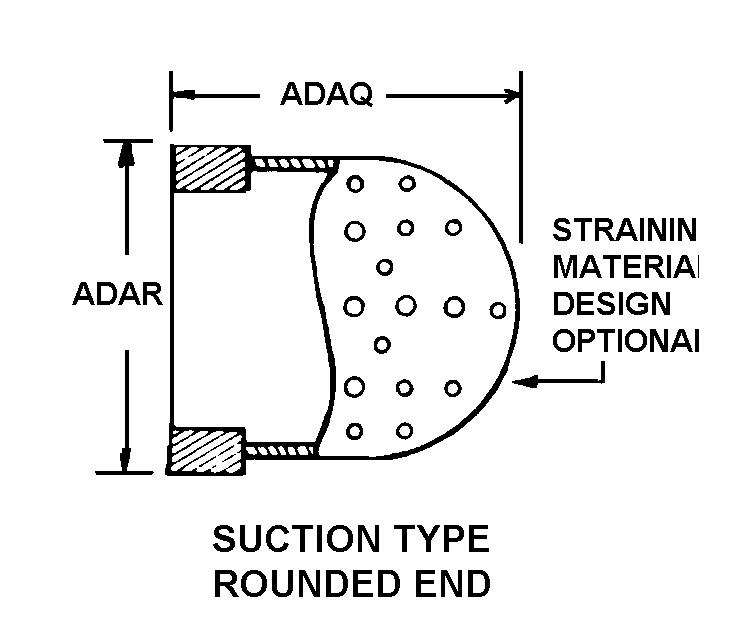

| STYLE DESIGNATOR | C25 SUCTION TYPE ROUNDED END |
| BODY LENGTH | 0.540 INCHES MINIMUM AND 0.570 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.1867 INCHES MINIMUM AND 0.1874 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 303 BODY STEEL COMP 304 SCREENING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5640 ASSN STD SINGLE MATERIAL RESPONSE BODY AMS 5511 ASSN STD SINGLE MATERIAL RESPONSE SCREENING |
| DESIGN TYPE | NONREUSABLE |
| FILTERING ELEMENT QUANTITY | 1 |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| TEMP RATING | NOT RATED |
| DROP PRESSURE | NOT RATED |
| DIFFERENTIAL PRESSURE | NOT RATED |
| MOUNTING HOLE QUANTITY | 1 |
| MOUNTING HOLE DIAMETER | 0.1875 INCHES MINIMUM AND 0.1880 INCHES MAXIMUM |
| MANUFACTURERS CODE | 92555 |
| DESIGN CONTROL REFERENCE | FSCX0342630A |
Restrictions/Controls & Freight Information | NSN 2945-01-206-7669
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2945-01-206-7669
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Materiel Management Aggregation Code | TQ | TF:REAPER/MQ9 |
| Source of Supply | F83 | General Atomics-Aeronautical Systems 16761 Via Del Campo Court San Diego, CA 92127-1713 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
