NSN 2945-01-050-5726 3512541, 3-51254-1, 50-380069-1

Product Details | FLUID FILTER ELEMENT

2945-01-050-5726 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: 3512541, 3-51254-1, 50-380069-1, 7511213, 2945-01-050-5726, 01-050-5726, 2945010505726, 010505726, 503800691

Engine Accessories | Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
29	10 NOV 1977	01-050-5726	32624 ( FILTER ELEMENT, FLUID )

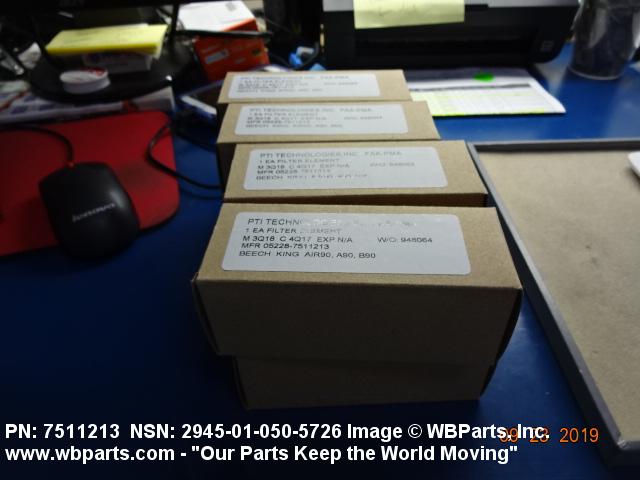

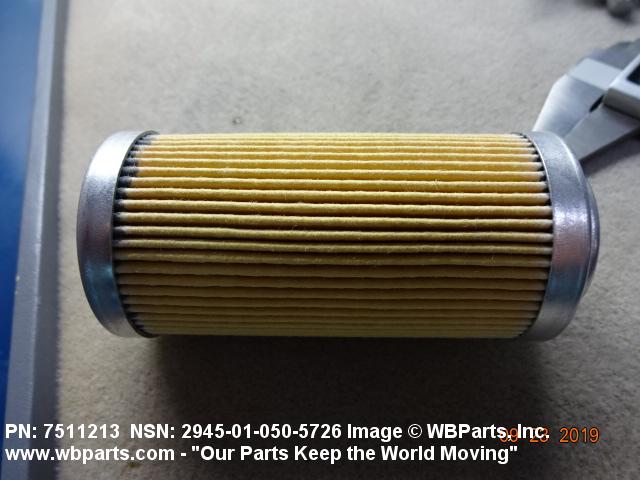

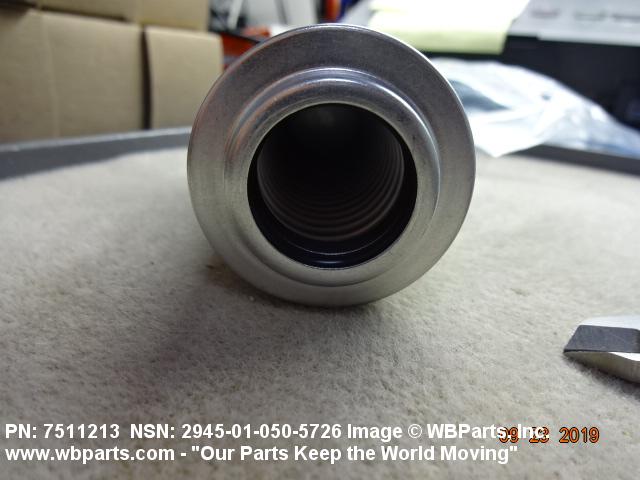

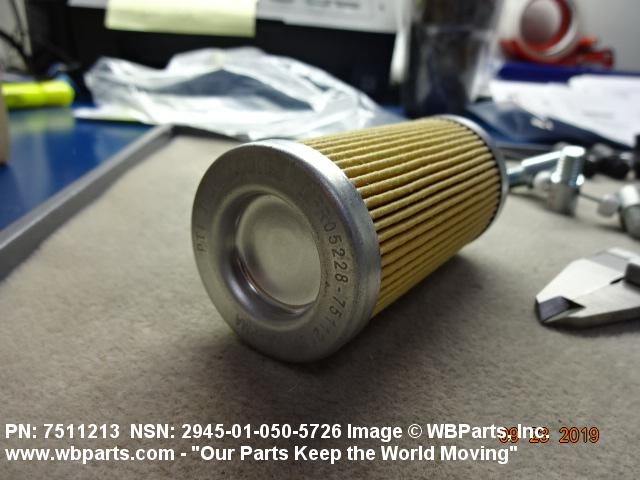

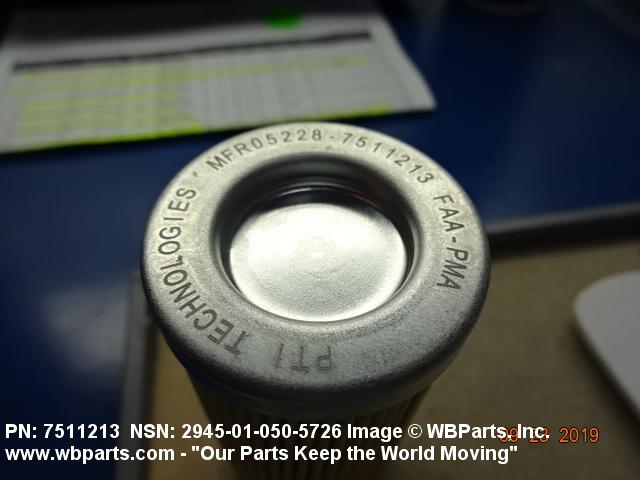

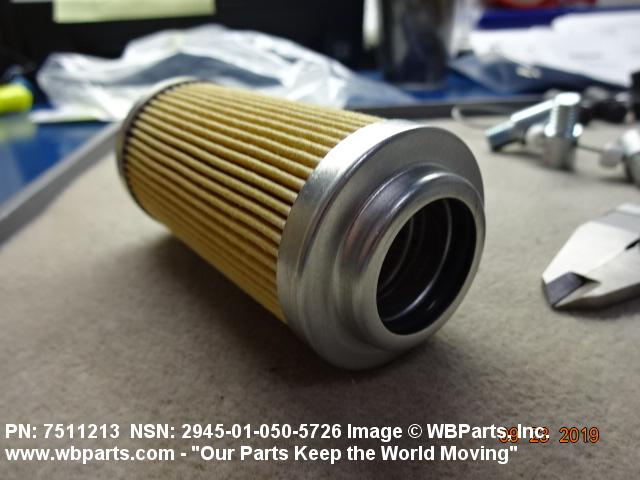

Drawings & Photos | NSN 2945-01-050-5726

Part Number	Request Date	QTY	Origin
7511213	2020-10-304	468	DIBBS
7511213	2020-09-265	868	DIBBS
2945-01-050-5726	2020-03-63	1	DIBBS-RFPs
2945-01-050-5726	2019-09-260	8	United States
2945-01-050-5726	2019-08-240	8	United States
2945-01-050-5726	2017-12-362	14	US
2945-01-050-5726	2017-09-249	1	DIBBS-RFPs
2945-01-050-5726	2014-10-301	1	DIBBS
2945-01-050-5726	2014-10-288	466	DIBBS
2945-01-050-5726	2014-10-281	1	DIBBS
3-51254-1	2010-11-334	100
2945-01-050-5726	2010-11-326	2147	DIBBS
2945-01-050-5726	2009-10-303	260	DIBBS
2945-01-050-5726	2009-09-254	590	DIBBS
2945-01-050-5726	2009-08-239	524	DIBBS
3512541	2009-04-120	88	us
2945-01-050-5726	2007-07-198	474	DIBBS
2945-01-050-5726	2007-03-71	383	DIBBS

Cross Reference | NSN 2945-01-050-5726

Part Number	Cage Code	Manufacturer
3-51254-1	76823	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
50-380069-1	70898	BEECHCRAFT CORPORATION DBA HAWKER BEECHCRAFT
7511213	05228	PTI TECHNOLOGIES INC.
7511213	64829	ARVINMERITOR INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2945-01-050-5726

Compare

Related Products | NSN 2945-01-050-5726

2945-01-051-0123, 2945-01-053-3426, 2945-01-054-0885, 2945-01-054-1683, 2945-01-054-1744

Technical Data | NSN 2945-01-050-5726

Characteristic	Specifications
STYLE DESIGNATOR	A6 CYLINDRICAL W/OUT CONTAINER

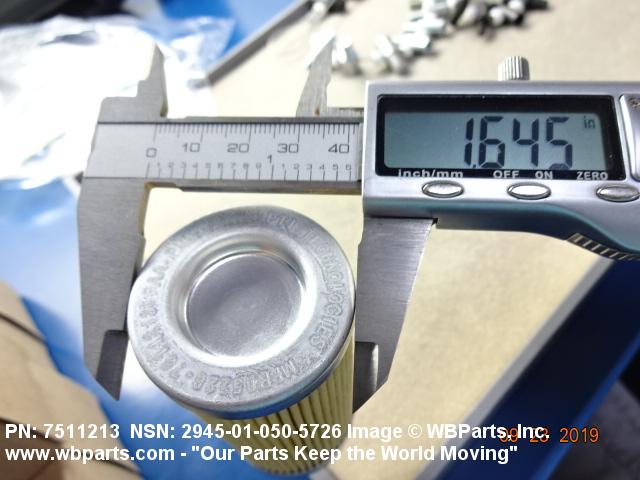

BODY DIAMETER	1.625 INCHES NOMINAL

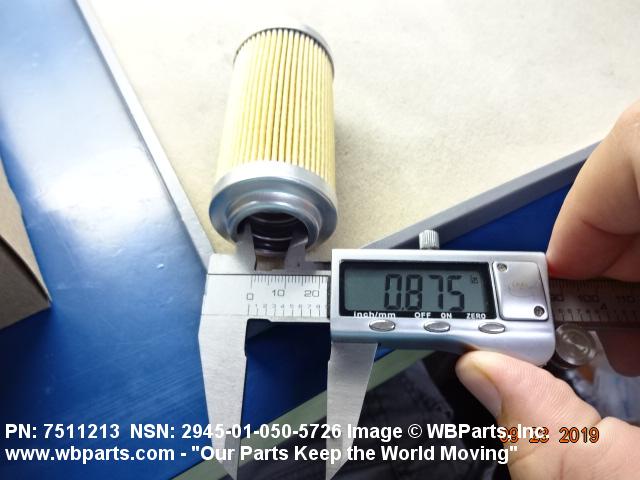

BODY INSIDE DIAMETER	0.875 INCHES NOMINAL

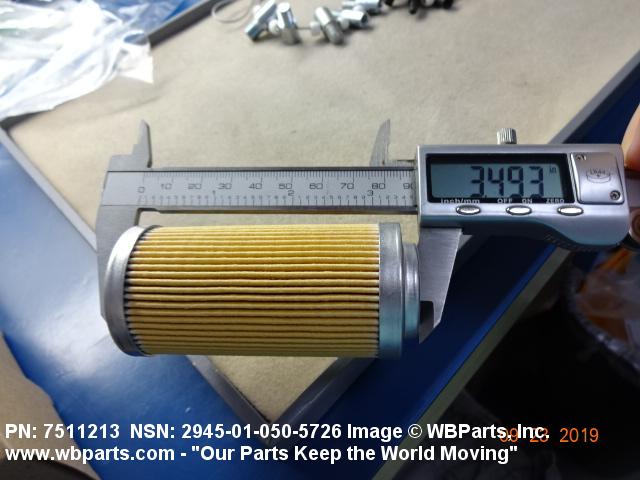

BODY OVERALL LENGTH	3.437 INCHES MINIMUM AND 3.499 INCHES MAXIMUM
MATERIAL	CELLULOSE FILTERING MEDIUM
FILTERING MEDIA DESIGN	PLEATED SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE	NONREUSABLE
FILTRATION RATING IN MICRONS	10.0 NOMINAL
FLOW DIRECTION	OUTSIDE IN
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON
TEMP RATING	-65.0 DEG FAHRENHEIT MINIMUM AND 275.0 DEG FAHRENHEIT MAXIMUM
DROP PRESSURE	NOT RATED
DIFFERENTIAL PRESSURE	NOT RATED

Restrictions/Controls & Freight Information | NSN 2945-01-050-5726

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	D	Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	190500	VEHICLE PARTS GROUP
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	590	unknown
Originating Activity Code	48	Federal Aviation Administration Oklahoma City, OK 73125
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2945-01-050-5726

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	XE	SU:T-38 TALON
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
