NSN 2945-00-091-4931 02S692100, 02S692-100, 00-091-4931

Product Details | FLUID FILTER COVER

2945-00-091-4931 A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters

Part Alternates: 02S692100, 02S692-100, 2945-00-091-4931, 00-091-4931, 2945000914931, 000914931

Engine Accessories | Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
29	01 JAN 1963	00-091-4931	22569 ( COVER, FLUID FILTER )

Drawings & Photos | NSN 2945-00-091-4931

Part Number	Request Date	QTY	Origin
2945-00-091-4931	2019-01-23	1	DIBBS-RFPs
2945-00-091-4931	2018-08-228	36	DIBBS
2945-00-091-4931	2018-02-42	51	DIBBS
2945-00-091-4931	2017-11-311	32	DIBBS
2945-00-091-4931	2017-08-220	37	DIBBS
2945-00-091-4931	2017-06-157	46	DIBBS
2945-00-091-4931	2016-12-341	79	DIBBS
2945-00-091-4931	2016-11-313	50	DIBBS
2945-00-091-4931	2016-08-220	86	DIBBS
2945-00-091-4931	2016-07-194	21	DIBBS
2945-00-091-4931	2016-04-115	73	DIBBS
2945-00-091-4931	2016-04-113	1	DIBBS-RFPs
2945-00-091-4931	2015-06-159	74	DIBBS
2945-00-091-4931	2014-12-335	64	DIBBS
2945-00-091-4931	2014-07-194	42	DIBBS
2945-00-091-4931	2014-03-69	98	DIBBS
2945-00-091-4931	2010-05-131	73	DIBBS
2945-00-091-4931	2010-04-116	73	DIBBS
2945-00-091-4931	2010-04-102	73	DIBBS
2945-00-091-4931	2010-03-67	61	DIBBS
2945-00-091-4931	2009-06-168	83	DIBBS

Cross Reference | NSN 2945-00-091-4931

Part Number	Cage Code	Manufacturer
02S692-100	00736	FALLS FILTRATION TECHNOLOGIES, INC.
02S692-100	61392	GUTIERREZ JOE H DBA FUSION WELDING CO
02S692-100	8X938	COASTAL SHEET METAL CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2945-00-091-4931

Compare

Related Products | NSN 2945-00-091-4931

2945-00-092-2102, 2945-00-094-7982, 2945-00-094-7983, 2945-00-098-4172, 2945-00-103-6744

Technical Data | NSN 2945-00-091-4931

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY
ATTACHMENT METHOD	BOLTED

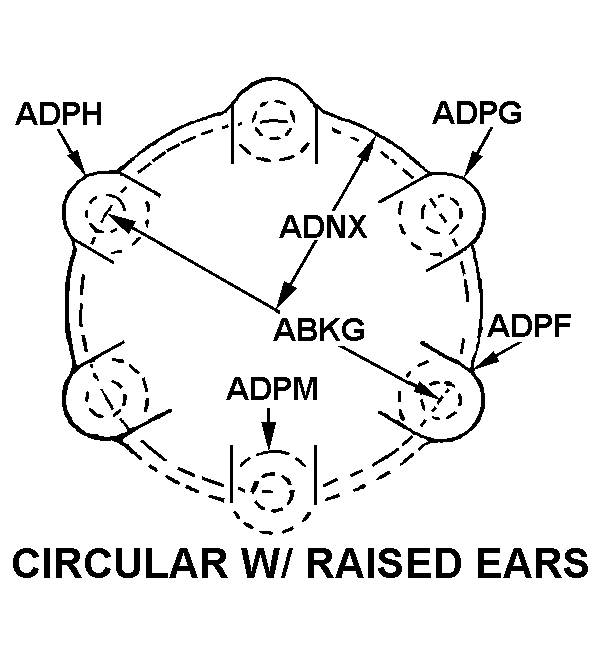

PERIPHERAL SHAPE STYLE	16 CIRCULAR W/RAISED EARS
BOLT CIRCLE DIAMETER	3.250 INCHES NOMINAL
BODY RADIUS	1.750 INCHES NOMINAL
INVERTED RADIUS	0.250 INCHES NOMINAL
EAR RADIUS	0.300 INCHES NOMINAL
EAR QUANTITY	6
BOLT CIRCLE HOLE QUANTITY	6
MOUNTING HOLE TYPE AND QUANTITY	6 PLAIN
MOUNTING OPENING SHAPE STYLE	1 UNTHREADED HOLE
HOLE DIAMETER	0.279 INCHES MINIMUM AND 0.286 INCHES MAXIMUM
FLUID FILTER ELEMENT RETAINER	NOT INCLUDED
III FSC APPLICATION DATA	FILTER,FLUID,PRESSURE,AIRCRAFT ENGINE
MANUFACTURERS CODE	00736
DESIGN CONTROL REFERENCE	02S692-100

Restrictions/Controls & Freight Information | NSN 2945-00-091-4931

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	069100	FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2945-00-091-4931

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Materiel Management Aggregation Code	OJ	SX:"ALLISON JET ENGINES & COMPONENTS, T-56"
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
