NSN 2940-01-501-9057 958054, 95-8054, 01-501-9057

Product Details | FLUID FILTER COVER

2940-01-501-9057 A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters

Part Alternates: 958054, 95-8054, 2940-01-501-9057, 01-501-9057, 2940015019057, 015019057

Engine Accessories | Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
29	21 OCT 2002	01-501-9057	22569 ( COVER, FLUID FILTER )

Drawings & Photos | NSN 2940-01-501-9057

Part Number	Request Date	QTY	Origin
2940-01-501-9057	2023-03-66	10	IL
2940-01-501-9057	2021-05-126	220	DIBBS
2940-01-501-9057	2021-01-28	87	DIBBS
2940-01-501-9057	2020-10-282	73	DIBBS
2940-01-501-9057	2019-09-248	98	DIBBS
2940-01-501-9057	2011-02-47	1	US
2940-01-501-9057	2010-10-291	187	DIBBS
2940-01-501-9057	2010-09-266	3	DIBBS
2940-01-501-9057	2010-09-259	72	DIBBS
2940-01-501-9057	2010-07-211	206	DIBBS
2940-01-501-9057	2010-04-100	93	DIBBS
2940-01-501-9057	2010-03-84	56	DIBBS
2940-01-501-9057	2009-08-227	21	DIBBS
2940-01-501-9057	2009-05-127	148	DIBBS
2940-01-501-9057	2009-04-98	37	DIBBS
2940-01-501-9057	2009-01-29	27	DIBBS
2940-01-501-9057	2007-05-136	85	DIBBS
2940-01-501-9057	2007-04-93	83	DIBBS
2940-01-501-9057	2007-03-72	83	DIBBS

Cross Reference | NSN 2940-01-501-9057

Part Number	Cage Code	Manufacturer
95-8054	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2940-01-501-9057

Compare

Related Products | NSN 2940-01-501-9057

2940-01-502-0257, 2940-01-502-2802, 2940-01-502-3992, 2940-01-502-6907, 2940-01-502-6952

Technical Data | NSN 2940-01-501-9057

Characteristic	Specifications
MATERIAL	POLYETHYLENE
ATTACHMENT METHOD	BOLTED

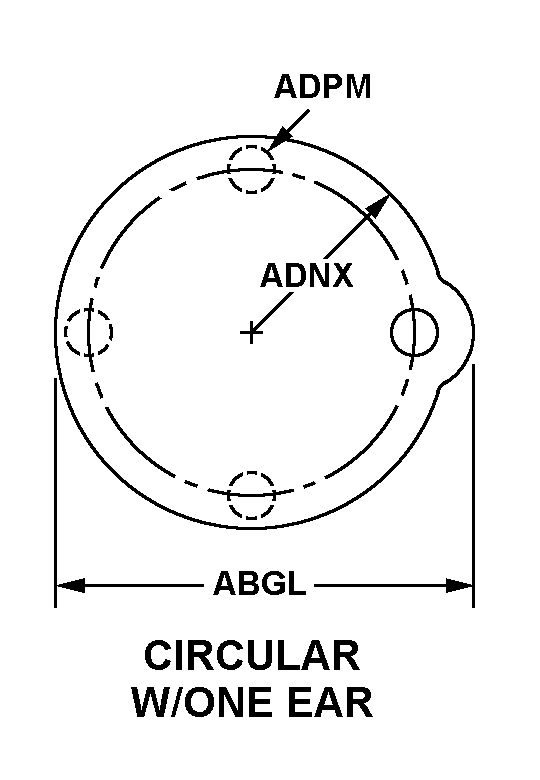

PERIPHERAL SHAPE STYLE	52 CIRCULAR W/ONE EAR
WIDTH	6.450 INCHES NOMINAL
BODY RADIUS	3.230 INCHES NOMINAL
BOLT CIRCLE HOLE QUANTITY	1

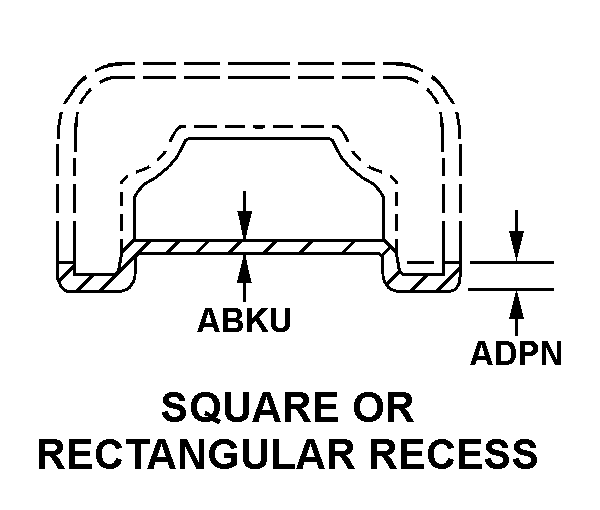

CROSS-SECTIONAL SHAPE STYLE	14 SQUARE OR RECTANGULAR RECESS
FLANGE THICKNESS	0.060 INCHES MINIMUM AND 0.100 INCHES MAXIMUM
FIRST RECESS INSIDE HEIGHT	0.610 INCHES NOMINAL
MOUNTING HOLE TYPE AND QUANTITY	1 COUNTERSUNK
MOUNTING OPENING SHAPE STYLE	1 UNTHREADED HOLE
HOLE DIAMETER	0.276 INCHES NOMINAL
FLUID FILTER ELEMENT RETAINER	NOT INCLUDED
III END ITEM IDENTIFICATION	6115-01-435-1565:GENERATOR SET,DIESEL ENGINE(NHA);2KW MILITARY TACTICAL GENERATOR,MEP-531A & MEP-501A

Restrictions/Controls & Freight Information | NSN 2940-01-501-9057

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	069100	FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	AH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2940-01-501-9057

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
