NSN 2940-01-110-3970 12296992, 01-110-3970, 011103970
Product Details | FLUID FILTER COVER
2940-01-110-3970 A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters
Part Alternates: 12296992, 2940-01-110-3970, 01-110-3970, 2940011103970, 011103970
Engine Accessories | Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 31 MAR 1981 | 01-110-3970 | 22569 ( COVER, FLUID FILTER ) |
Drawings & Photos | NSN 2940-01-110-3970
Demand History | NSN 2940-01-110-3970
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2940-01-110-3970 | 2023-12-345 | 18 | DIBBS |
| 2940-01-110-3970 | 2023-11-332 | 18 | DIBBS |
| 2940-01-110-3970 | 2020-09-258 | 10 | DIBBS |
| 2940-01-110-3970 | 2020-09-247 | 10 | DIBBS |
| 2940-01-110-3970 | 2007-05-128 | 32 | DIBBS |
| 2940-01-110-3970 | 2006-06-177 | 72 | DIBBS |
| 2940-01-110-3970 | 2006-04-109 | 50 | DIBBS |
Cross Reference | NSN 2940-01-110-3970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12296992 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2940-01-110-3970
Technical Data | NSN 2940-01-110-3970
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| ATTACHMENT METHOD | BOLTED |

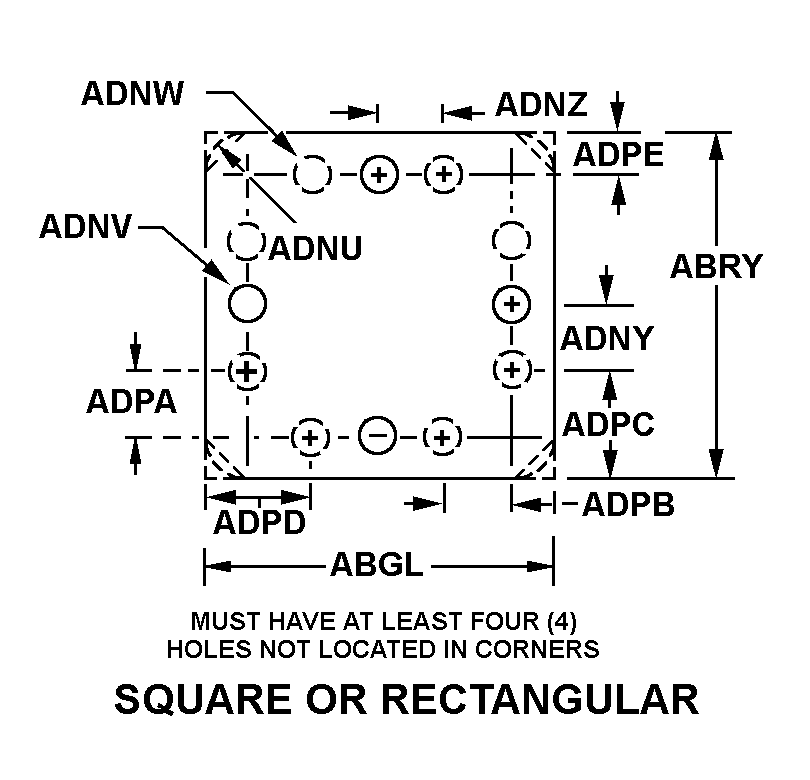

| PERIPHERAL SHAPE STYLE | 3 SQUARE OR RECTANGULAR |
| WIDTH | 5.000 INCHES NOMINAL |
| LENGTH | 6.380 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 2.000 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 2.000 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG WIDTH | 2.000 INCHES NOMINAL |
| CORNER BEVEL LENGTH | 1.750 INCHES NOMINAL |
| HOLE QUANTITY ALONG LENGTH | 2 |
| HOLE QUANTITY ALONG WIDTH | 2 |
| MOUNTING HOLE TYPE AND QUANTITY | 4 PLAIN |
| FLUID FILTER ELEMENT RETAINER | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2940-01-110-3970
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2940-01-110-3970
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
