NSN 2940-01-096-8096 010968096
Product Details | ACCESS COVER
2940-01-096-8096 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 010968096
Engine Accessories | Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01-096-8096 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 2940-01-096-8096
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2940-01-096-8096
Technical Data | NSN 2940-01-096-8096
| Characteristic | Specifications |
|---|---|

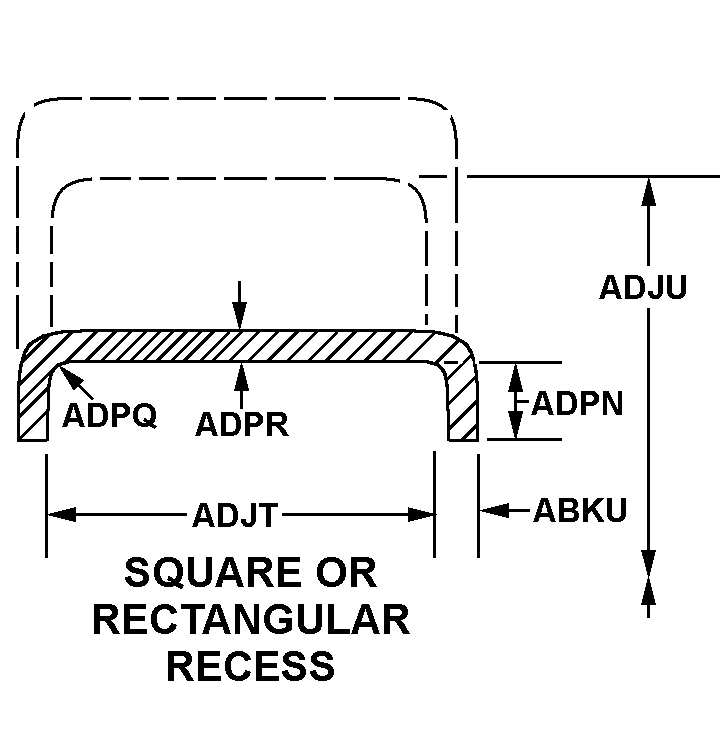

| CROSS-SECTIONAL SHAPE STYLE | 19 SQUARE OR RECTANGULAR RECESS |
| INSIDE WIDTH | 2.950 INCHES NOMINAL |
| INSIDE LENGTH | 13.500 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 1.500 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | OXIDE FILM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE |

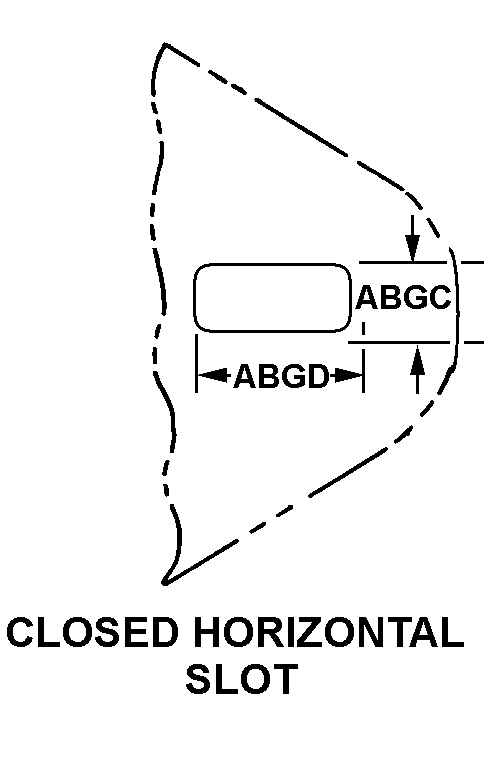

| MOUNTING OPENING SHAPE STYLE | 3 CLOSED HORIZONTAL SLOT |
| SLOT WIDTH | 0.031 INCHES NOMINAL |
| SLOT LENGTH | 1.750 INCHES NOMINAL |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 9089884 |
Restrictions/Controls & Freight Information | NSN 2940-01-096-8096
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
